Detailed Specifications

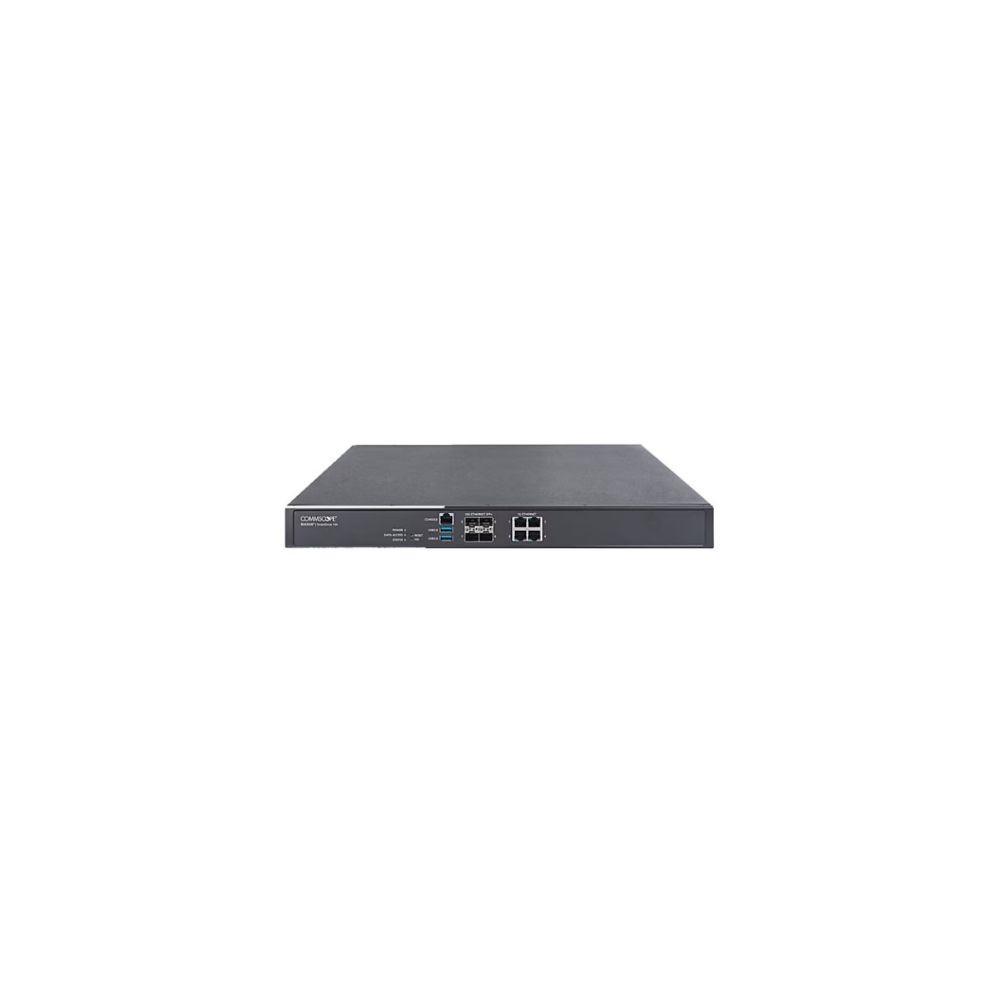

Ruckus P01-S144-UN00 - SmartZone 144 Wireless LAN Controller
Overview :
The Ruckus P01-S144-UN00 is a high-performance wireless LAN controller designed for enterprise environments requiring scalable and centralized management. It supports up to 6,000 Ruckus access points, 1,200 switches, and 120,000 clients within a 3+1 clustered configuration. This controller is ideal for medium to large-sized campuses, branch offices, and managed service providers seeking robust network control and automation. With its hybrid architecture, the SZ144 offers both centralized and distributed management capabilities, ensuring flexibility and reliability across diverse network topologies. The device is managed through the SmartZone OS, providing an intuitive interface for network administrators to configure, monitor, and troubleshoot the network efficiently.
Key Features :
Supports up to 6,000 APs and 120,000 clients
Hybrid centralized/distributed management architecture
Intra-cluster and inter-cluster failover for high availability
Zero-touch provisioning and policy configuration
Integrated visual client troubleshooting tools
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | P01-S144-UN00 |
| Product Type | Wireless LAN Controller |
| Ports | 4 × 10GE SFP+, 4 × 1GE RJ45 |
| USB Ports | 2 × USB 3.0 |
| Console Port | 1 × RJ45 |
| Rack Mountable | Yes (1U form factor) |
| Power Consumption | 135W |
| Weight | 15.3 lbs (6.95 kg) |
| Dimensions (L × W × H) | 17.3" × 10.3" × 1.7" |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Redundancy | 3+1 Active-Active Clustering |
| Max Clients Supported | Up to 120,000 |
| Max Access Points | Up to 6,000 |
| Max Switches | Up to 1,200 |
