Detailed Specifications

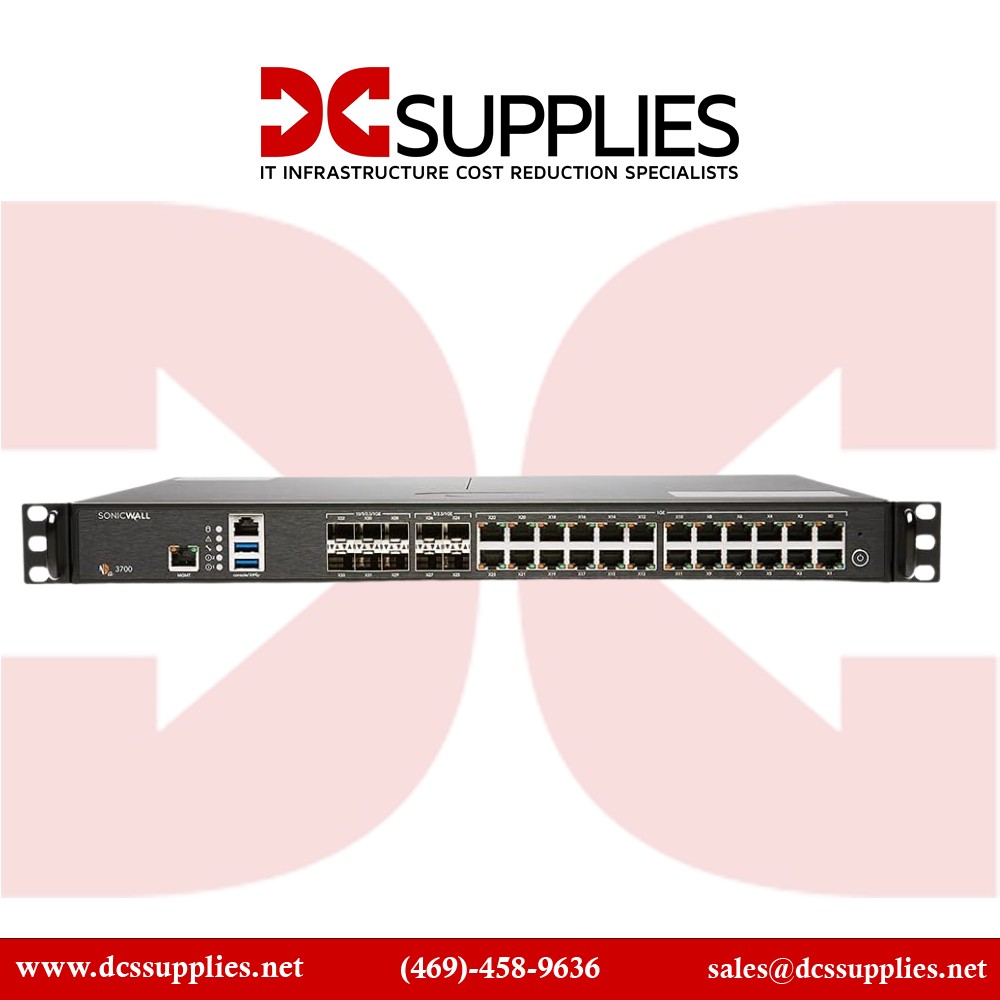

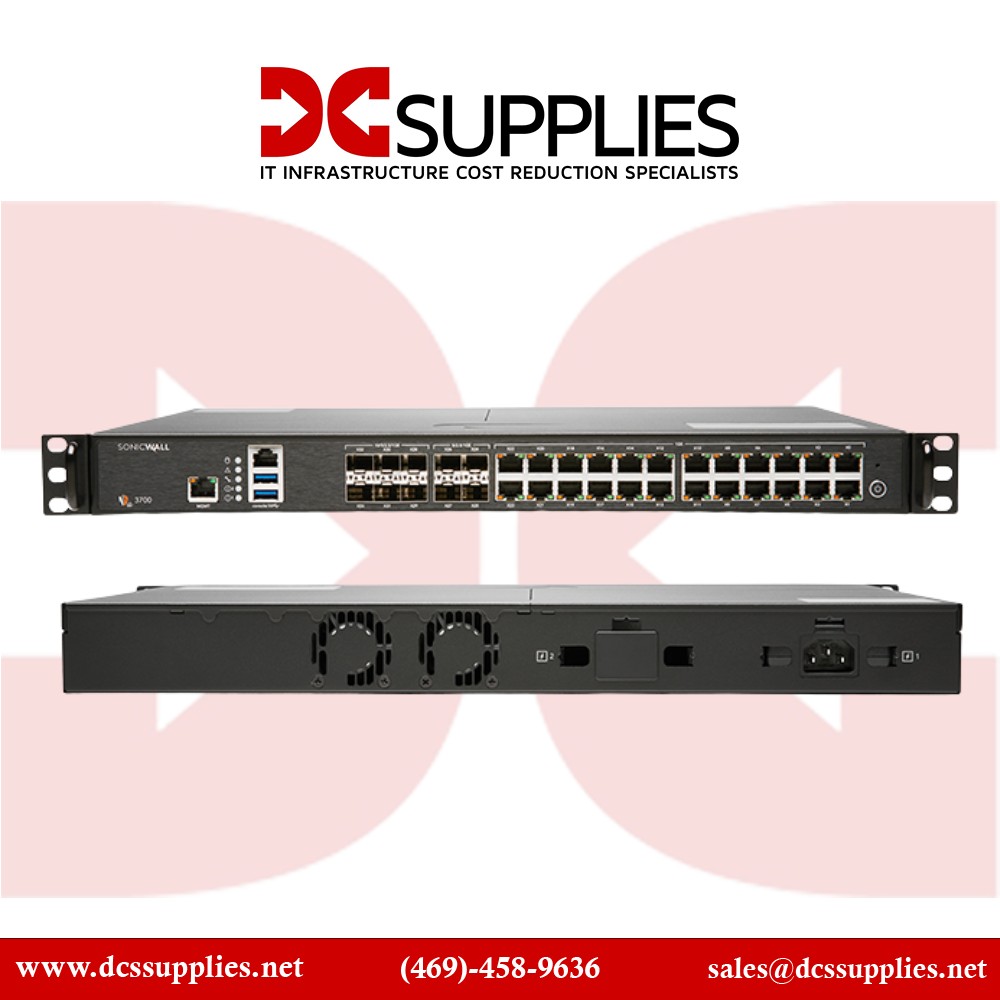

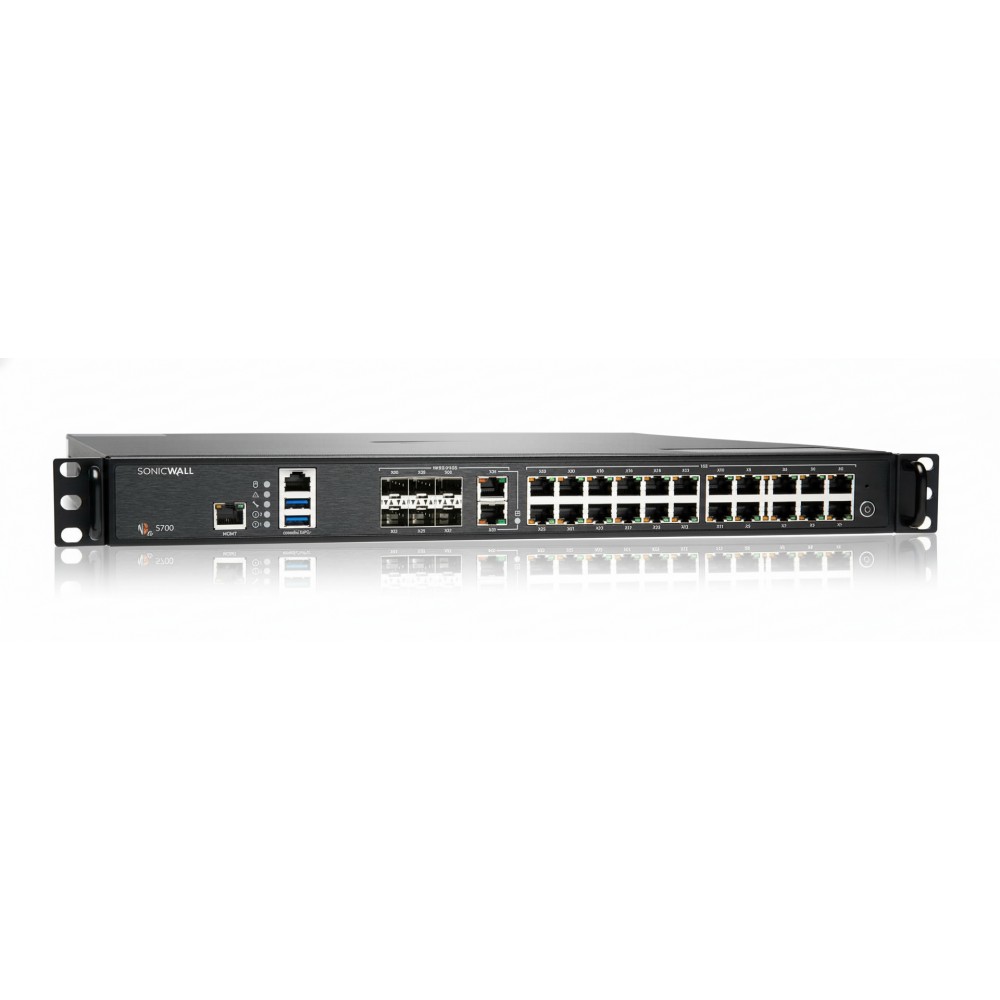

SonicWall NSa 5700 (02-SSC-3921) - Gen-7 Multi-Gig Next-Generation Firewall Appliance
Overview
The SonicWall NSa 5700, SKU 02-SSC-3921, is a rack-mountable, high-capacity next-generation firewall intended for medium- to large-enterprise deployments. This model supports multi-gig connectivity across its 26 ports, combining 1 GbE, 2.5 GbE, 5 GbE, and 10 GbE interfaces to adapt to varying backbone and access needs.It includes a 1-year TotalSecure Essential Protection Suite, delivering core NGFW services×intrusion prevention, malware protection, SSL decryption, application control, content filtering, and more. With SonicOS 7, it adds SD-WAN, high-availability, and unified policy management capabilities.This firewall is tailored for edge aggregation, data center perimeter, or high-traffic branch environments. Its robust performance handles large volumes of simultaneous connections and VPN traffic while maintaining deep packet inspection and threat prevention.
Key Features
26 multi-gig ports × supports 1G, 2.5G, 5G, and 10G links for flexible deployment.
High throughput × built for large, busy networks without bottlenecks.
1-Year Essential Protection × foundational NGFW security with threat prevention.
SonicOS 7 × modern OS with SD-WAN, HA, and centralized policy.
Large connection capacity × supports high session counts and VPNs.
1U rack-mountable × fits data center or enterprise rack design.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-3921 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | Very high / multi-gig (vendor lists up to 18 Gbps in some places) |
| IPS Throughput | 8 Gbps (according to vendor spec sheet) |
| NGFW Throughput | 6 Gbps (per spec) |
| Threat Prevention Throughput | 4 Gbps (per listed spec) |
| VPN Throughput | 7 Gbps (according to spec) |
| Maximum Connections (SPI) | 7,500,000 (per vendor) |
| Maximum DPI Connections | 3,500,000 (as per listed spec) |
| Site-to-Site VPN Tunnels | Up to 10,000 (vendor-listed) |
| Concurrent SSL VPN Users | Up to 5,000 (per spec) |
| Ports / Interfaces | 26 total; mix of 1 GbE RJ-45, 2.5 GbE, 5 GbE, 10 GbE / SFP+ |
| Expansion Slots | 6 × SFP+ |
| Management | On-premises & cloud via SonicOS / Network Security Manager |
| Form Factor | 1U rack-mountable |
| Power Supply | Internal AC, redundant capable |
| Power Consumption | ~100 W (per spec) |
| Operating Temperature | 0-40 °C typical |
| Support Included | 1 Year: TotalSecure Essential Protection |
