SonicWall 02-SSC-6810 TZ470W Essential Edition Security Appliance - Wi-Fi 5

SonicWall TZ470W (02-SSC-6810) – Gen-7 3.5 Gbps Firewall + 802.11ac Wireless

Overview

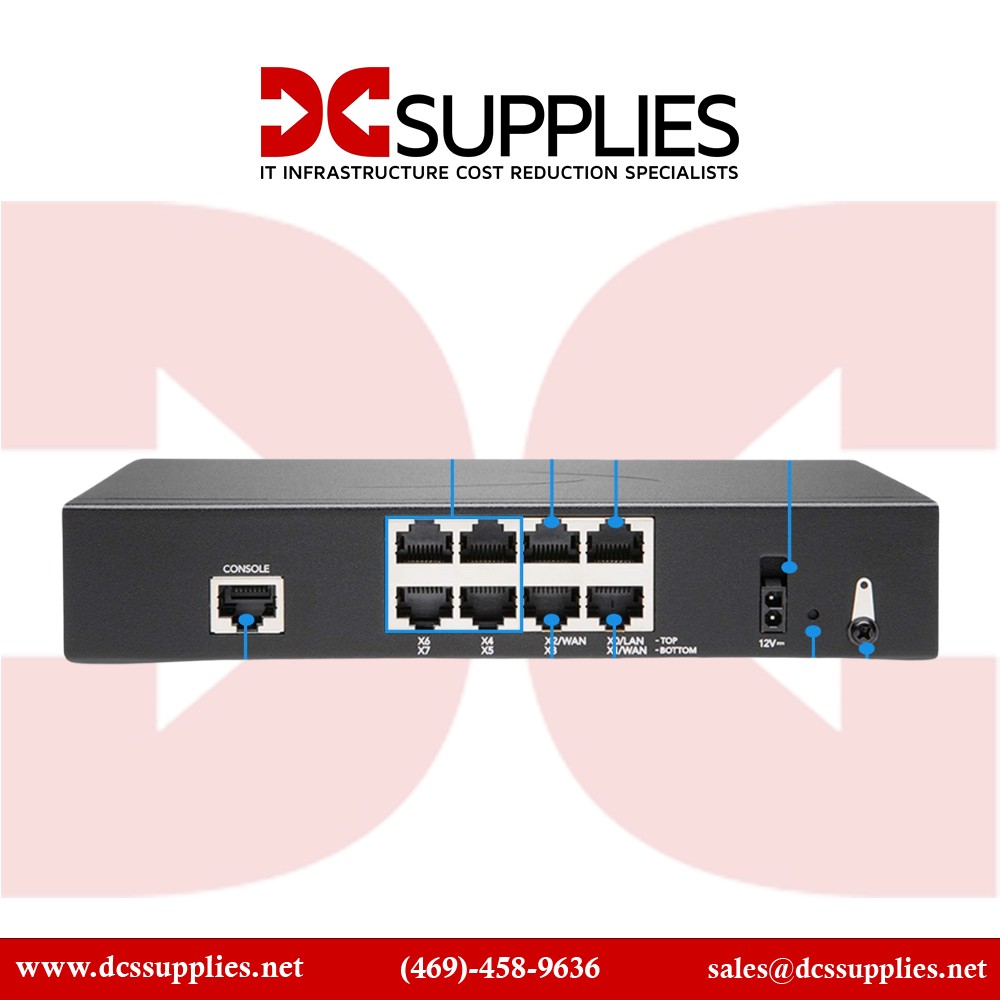

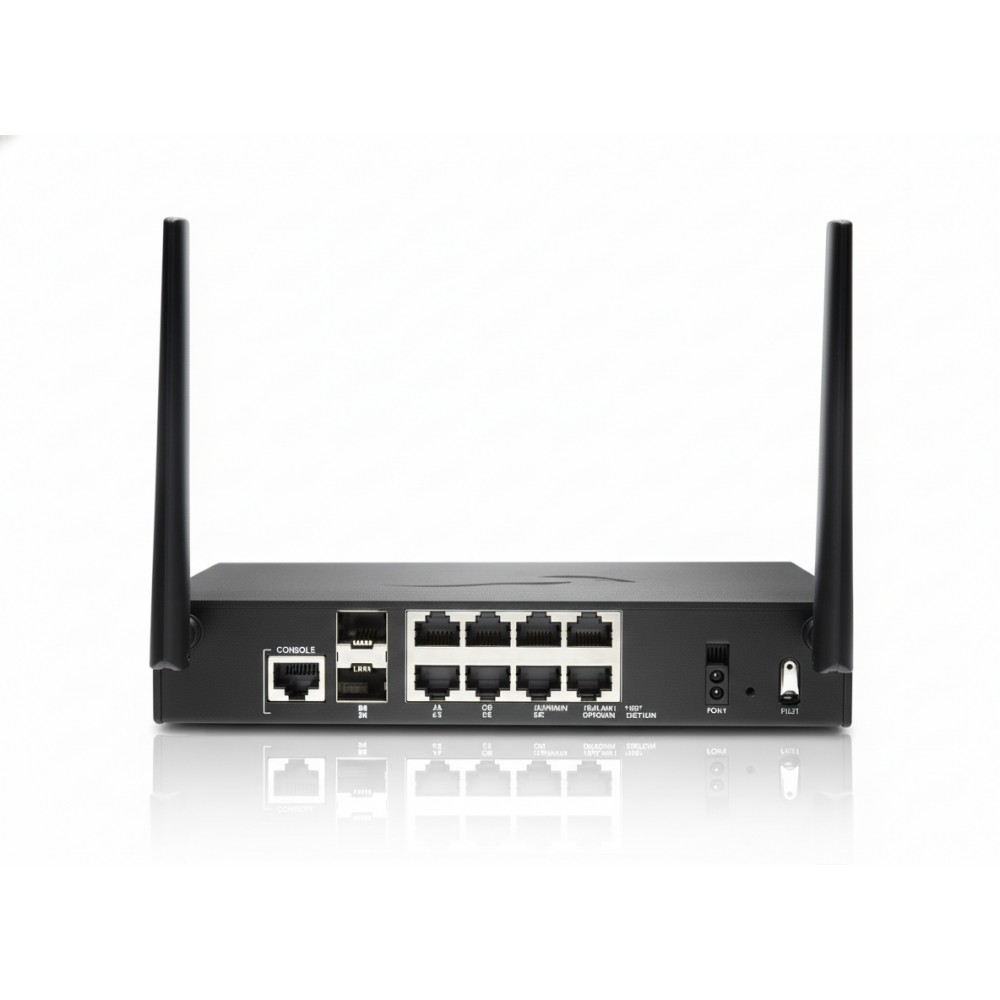

The SonicWall TZ470W, SKU 02-SSC-6810, is a Gen-7 next-generation firewall with integrated 802.11ac wireless, built for branch offices or distributed enterprise sites. It delivers up to 3.5 Gbps firewall throughput and supports 1.5 Gbps VPN throughput, making it highly capable for heavy internet usage and remote connectivity.On the network front, it has 8 × 1 GbE RJ-45 ports, 2 expansion slots (SFP+), 2 USB 3.0 ports, and a console interface. The appliance runs SonicOS 7, bringing SD-WAN capabilities, zero-touch deployment, VLAN segmentation, and deep threat inspection with full NGFW services.For storage and logging, it supports expandable on-board storage (up to ~256 GB), which helps with local event logging, firmware backups, or caching. The unit supports unified management with other SonicWall devices, and is available in both desktop and 1U rack-mount form.

Key Features

• 3.5 Gbps firewall throughput — handles high-traffic branch or edge deployments.

• Integrated 802.11ac Wi-Fi — no need for a separate access point for wireless access.

• 8 × 1 Gb RJ-45 + 2 SFP+ slots — flexible wired and fiber connectivity.

• Expandable storage (up to ~256 GB) — useful for logs, cache, and firmware.

• Full NGFW protection — IPS, application control, content filtering, SSL inspection.

• SonicOS 7 — SD-WAN, modern UI, zero-touch provisioning.

Technical Specifications
