Detailed Specifications

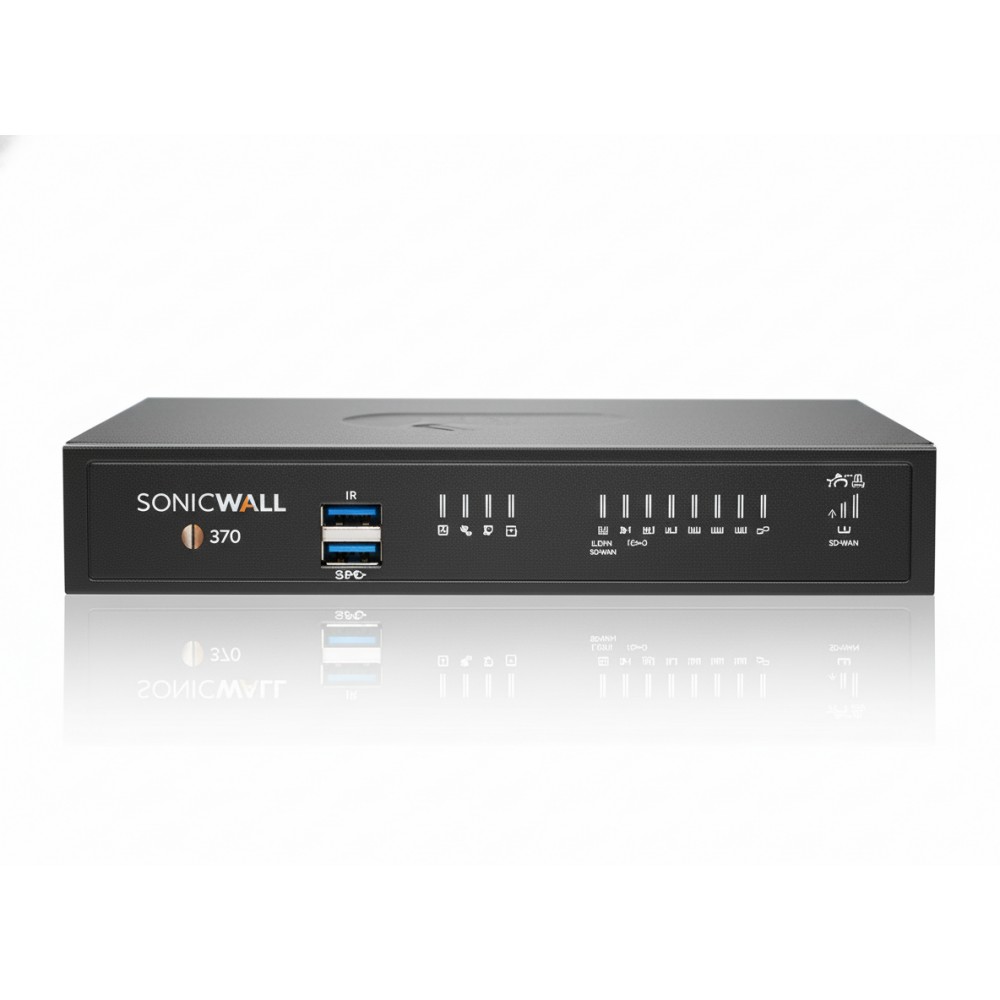

SonicWall TZ370 (02-SSC-2825) - Gen-7 3 Gbps Next-Generation Firewall Appliance
Overview
The SonicWall TZ370, SKU 02-SSC-2825, is a seventh-generation next-generation firewall designed for branch offices and small-to-medium business networks. It combines high firewall throughput with modern connectivity and security features, running SonicOS 7 for SD-WAN, zero-touch deployment, and centralized policy management.With 3 Gbps firewall throughput and 1 Gbps threat prevention, it can handle real-world business traffic while inspecting for malware, intrusion, and applications. The appliance supports 100 site-to-site or remote VPN tunnels and includes 8×1 GbE RJ-45 ports, 2 USB 3.0 ports, and a console port for management flexibility. Expandable storage (up to ~256 GB) supports logs and caching.The TZ370's compact desktop or rack-mountable form factor allows easy deployment in office environments while still delivering enterprise-grade security, high connection counts, and advanced inspection capabilities.
Key Features
3 Gbps firewall throughput × robust inspection performance for branch traffic.
1 Gbps threat prevention × IPS, anti-malware, application control.
100 IPSec VPN tunnels × secure remote access and site-to-site connectivity.
8×1 GbE RJ-45 ports + USB 3.0 × flexible connectivity options.
128 VLANs × strong network segmentation.
Expandable storage up to 256 GB × for logs, caching, and backups.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-2825 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | 3 Gbps |
| Threat Prevention Throughput | 1 Gbps |
| Application Inspection Throughput | 1.5 Gbps |
| IPS / IDS Throughput | 1.5 Gbps |
| Anti-Malware (DPI) Throughput | 1 Gbps |
| TLS/SSL (DPI-SSL) Throughput | 500 Mbps |
| IPSec VPN Throughput | 1.3 Gbps |
| New Connections / Second | 9,000 |
| SPI Connections (Max) | 900,000 |
| DPI Connections (Max) | 200,000 |
| DPI-SSL Connections (Max) | 30,000 |
| VLAN Interfaces | 128 |
| Interfaces / Ports | 8×1 GbE RJ-45, 2×USB 3.0, 1×Console |
| Storage | Expandable up to 256 GB |
| Operating System | SonicOS 7.0 |
| Form Factor | Desktop or 1U Rack |
| Power Consumption | 16.8 W |
| Power Supply | External Adapter, 100-240 VAC |
| Operating Temperature | 0-40 °C |
