Detailed Specifications

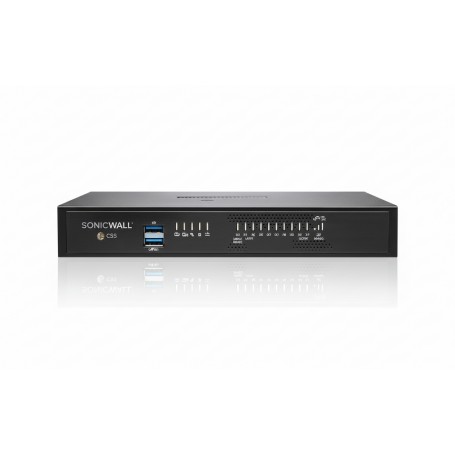

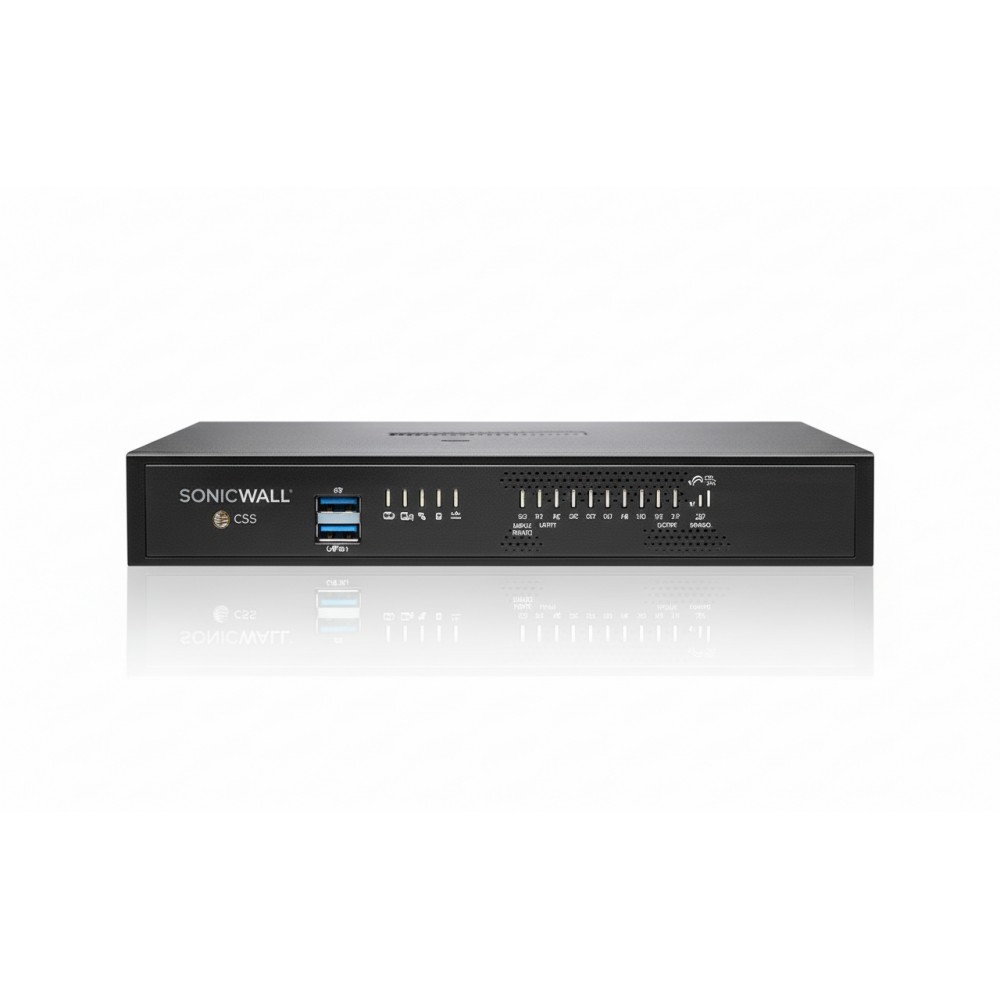

SonicWall TZ670 (02-SSC-2837) - Gen-7 High-Performance NGFW with 10G Uplinks
Overview
The SonicWall TZ670, SKU 02-SSC-2837, is a powerful, Gen-7 next-generation firewall built for distributed enterprise and mid-sized business environments. It delivers very high performance in a compact, desktop or rack-mountable form factor, with 8 × 1 GbE ports and 2 × 10 GbE SFP+ uplinks to handle high-speed WAN links.Under the hood, it offers 5 Gbps firewall throughput, 2.5 Gbps of threat-prevention, and 2.1 Gbps IPSec VPN capacity, enabling strong protection without becoming a bottleneck. The TZ670 supports advanced security services×application control, intrusion prevention, real-time deep memory inspection, and encrypted traffic inspection×under SonicOS 7.It also supports SD-WAN, zero-touch deployment, and centralized management. Storage is expandable (up to ~256 GB), which helps with local log retention, caching, and firmware backups. It's ideal for SD-Branch deployments or high-traffic edge sites that demand both performance and deep inspection.
Key Features
5 Gbps firewall throughput × high-performance NGFW for fast WAN and LAN.
Multi-gig interfaces × 8×1 GbE + 2×10 Gb SFP+ for flexible deployment.
Scalable security × full NGFW services: IPS, anti-malware, SSL inspection.
SD-WAN ready × for better WAN management and resilience.
Zero-touch deployment × speeds up rollout in remote sites.
Expandable Storage × up to ~256 GB for logs and caching.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-2837 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | ~5.0 Gbps |
| Threat Prevention Throughput | ~2.5 Gbps |
| IPSec VPN Throughput | ~2.1 Gbps |
| New Connections / Sec | ~25,000 |
| SPI Connections (Max) | ~1,500,000 |
| DPI (Max) | ~500,000 |
| DPI-SSL / TLS | ~800 Mbps |
| Interfaces / Ports | 8 × 1 GbE RJ-45, 2 × 10 GbE SFP+, 2 × USB 3.0, 1 × Console |
| Storage | 32 GB SSD built-in, expandable up to ~256 GB |
| Power Consumption | ~13.1 W |
| Form Factor | Desktop or 1U Rack |
| Operating Temperature | 0-40 °C (Gen-7 TZ spec |
