Detailed Specifications

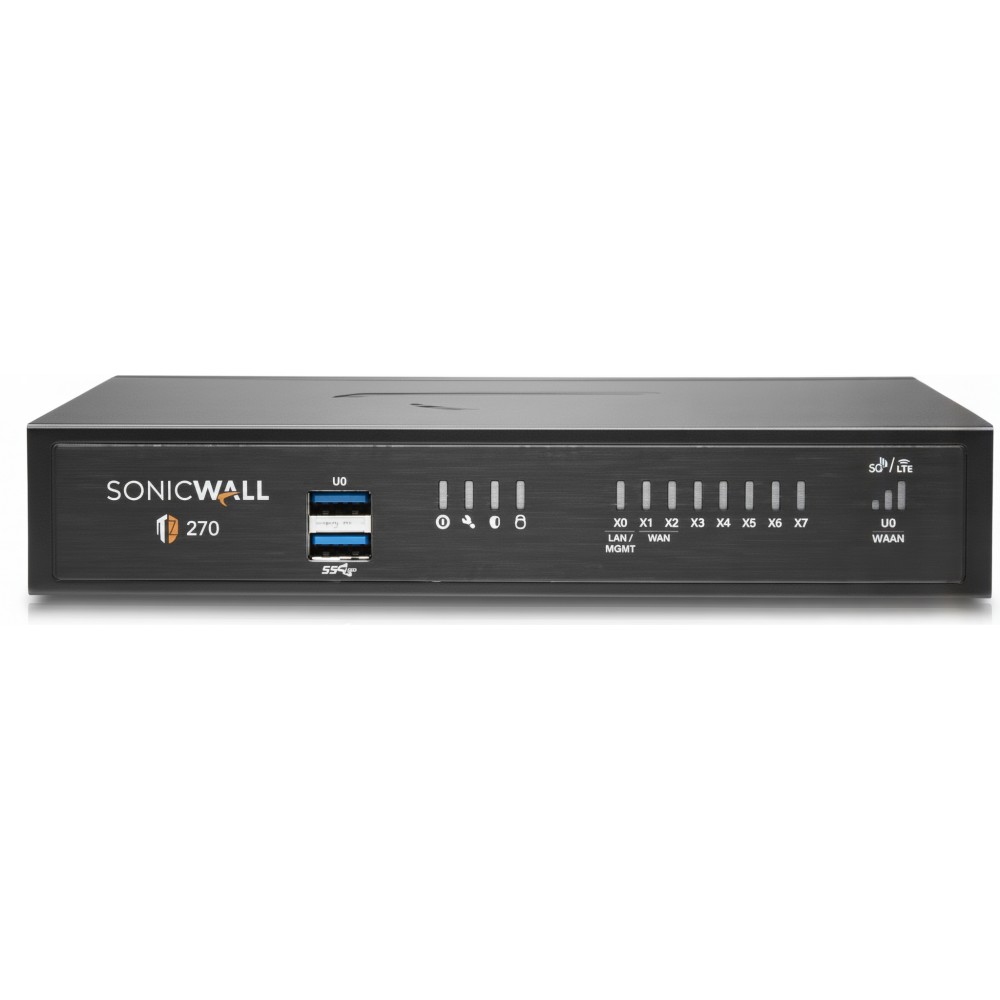

SonicWall TZ270 (02-SSC-2821) - Gen-7 2 Gbps Next-Gen Firewall Appliance
Overview
The SonicWall TZ270, SKU 02-SSC-2821, is a Gen-7 next-generation firewall appliance designed for small to mid-sized offices, branch locations, or SD-Branch deployments. It delivers a solid 2 Gbps firewall throughput combined with advanced security services such as intrusion prevention, application control, content filtering, and encrypted traffic inspection.With 8 × 1 Gb RJ-45 ports, 2 USB 3.0 ports, and a console interface, the TZ270 supports flexible LAN and management connectivity. It supports 50 site-to-site IPsec VPN tunnels, enabling secure remote or branch connectivity.Running SonicOS 7, this appliance supports SD-WAN, zero-touch deployment, and centralized security policy orchestration. The device also supports expandable storage (up to 256 GB) for log retention, reporting, and firmware backups. Its compact desktop or small rack form factor makes it easy to deploy in branch closets or compact racks.
Key Features
2 Gbps firewall throughput × handles moderate branch traffic with full inspection.
8 × 1 GbE ports × enough port density for LAN, DMZ, and management.
50 IPsec VPN tunnels × supports secure site-to-site or remote connectivity.
SonicOS 7 × modern OS with SD-WAN, zero-touch provisioning, and unified management.
Expandable storage (up to 256 GB) × for logs, reporting, and firmware.
Compact form factor × desktop or 1U rack-mountable for branch simplicity.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-2821 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | 2 Gbps |
| Threat Prevention Throughput | ~750 Mbps |
| IPS / IDS Throughput | 1 Gbps |
| Anti-Malware Throughput | ~750 Mbps |
| SSL / TLS Inspection Throughput | ~300 Mbps |
| IPSec VPN Throughput | ~750 Mbps |
| New Connections / Sec | ~6,000 |
| SPI Connections (Max) | ~750,000 |
| DPI Connections (Max) | ~150,000 |
| VLAN Interfaces Supported | 64 |
| Interfaces / Ports | 8×1 Gb RJ-45, 2×USB 3.0, 1×Console |
| Storage | Expandable up to ~256 GB |
| Form Factor | Desktop or 1U Rack-Mount |
| Weight | ~820 g |
| Encryption / Authentication | DES, 3DES, AES 128/192/256, MD5, SHA-1 |
