Detailed Specifications

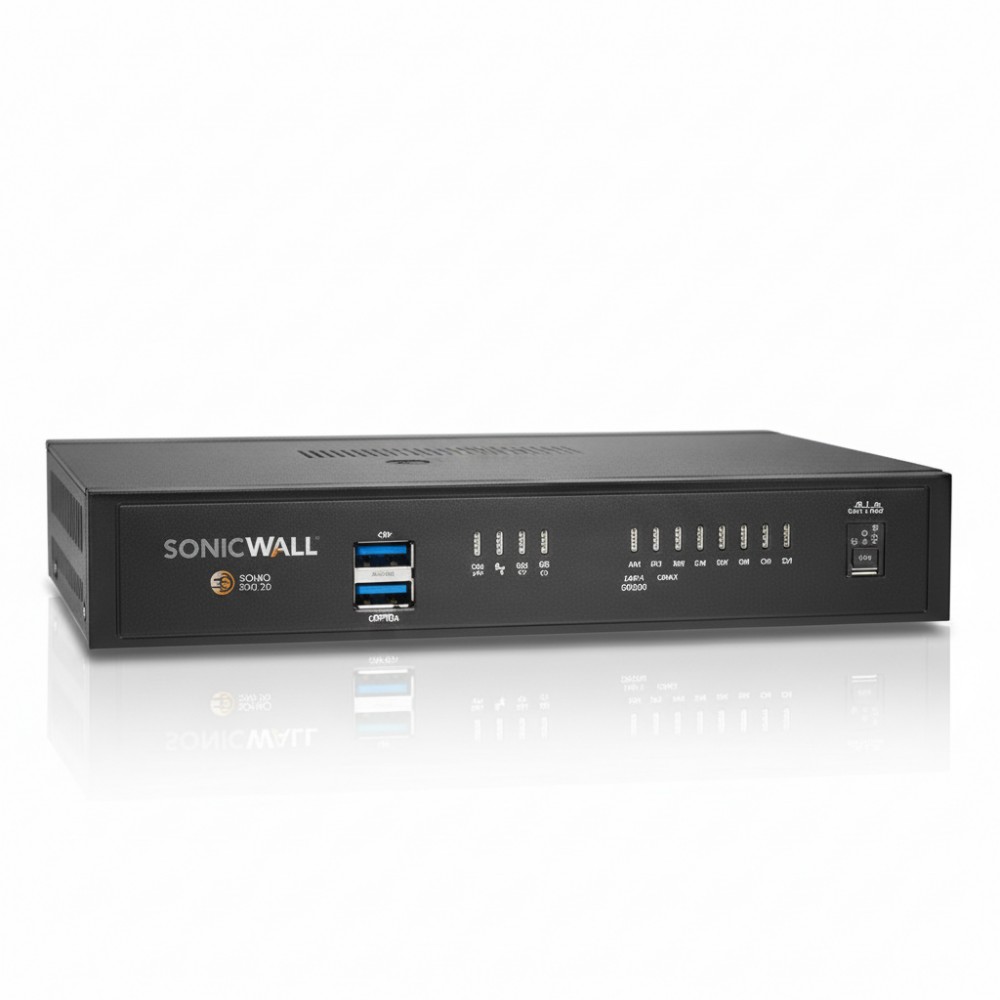

SonicWall TZ370W (02-SSC-2827) - Gen-7 3 Gbps NGFW with Integrated Wi-Fi AC
Overview
The SonicWall TZ370W, SKU 02-SSC-2827, is a Gen-7 next-generation firewall designed for branch offices or small to medium businesses that need both wired and wireless security. It combines a full security stack × intrusion prevention, malware protection, content filtering, application control × with integrated 802.11ac Wi-Fi, avoiding the need for a separate access point.This model delivers 3 Gbps firewall throughput, supports up to 1 Gbps of threat prevention, and can handle 200 IPsec VPN tunnels, giving strong remote connectivity. On the network side, it provides 8 × 1 GbE RJ-45 ports, 2 × USB 3.0, and a console port for flexible deployment.Powered by SonicOS 7, the TZ370W supports SD-WAN, zero-touch provisioning (via SonicExpress), and unified management across SonicWall devices. It also supports expandable storage (up to 256 GB) for logs, reports, or caching, making it a very versatile and future-ready NGFW for distributed deployments.
Key Features
3 Gbps firewall throughput × supports demanding branch traffic reliably.
Integrated 802.11ac Wi-Fi × secure wireless without separate AP.
200 VPN tunnels × secure site-to-site and remote connectivity.
SD-WAN capable × for flexible and optimized WAN.
SonicOS 7 × modern OS with centralized policy and zero-touch deployment.
Expandable storage × up to 256 GB for logs and caching.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-2827 |
| Product Type | Next-Generation Firewall Appliance (with Wi-Fi) |
| Firewall Throughput | ~3.0 Gbps |
| Threat Prevention Throughput | ~1.0 Gbps |
| VPN Tunnels | Up to 200 (IPsec) |

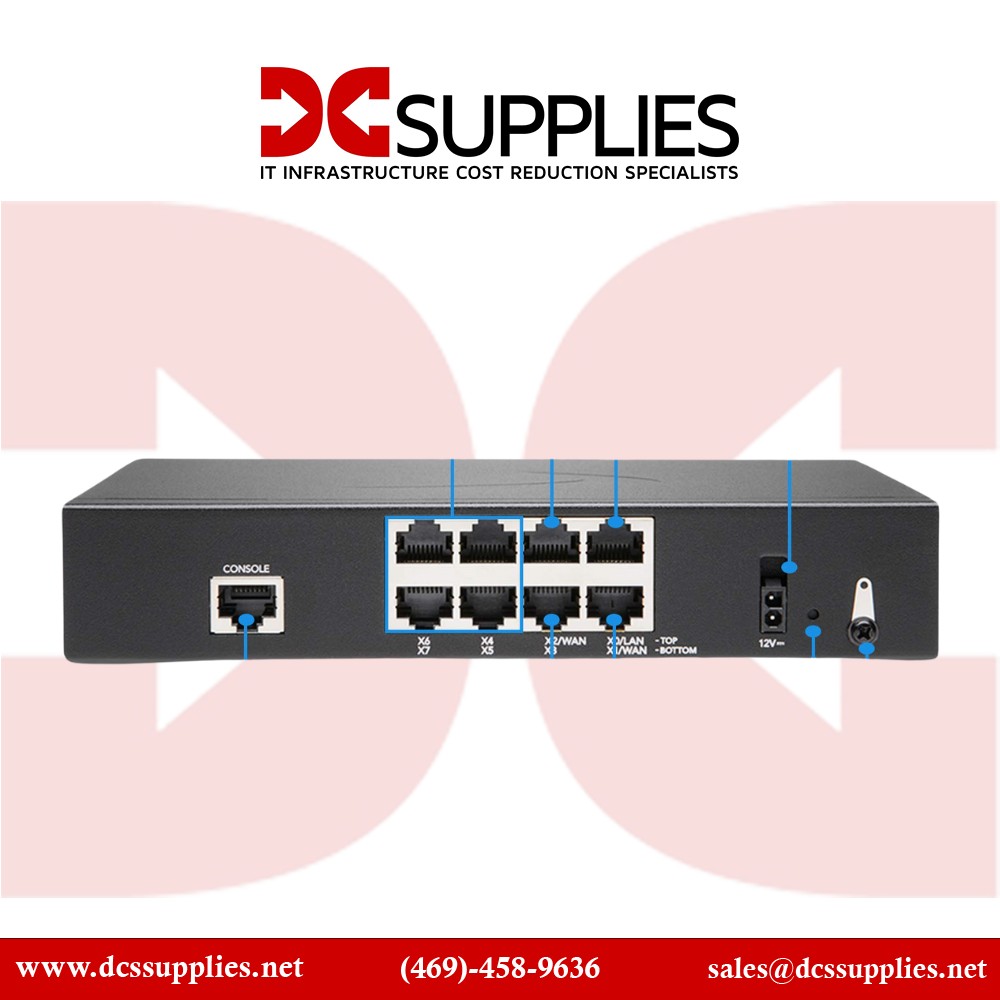

| Interfaces / Ports | 8 × 1 GbE RJ-45, 2 × USB 3.0, 1 × Console |
| New Connections / Sec | ~9,000 connections/s |
| Max SPI Connections | ~900,000 |
| Max DPI Connections | ~200,000 |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac (Wi-Fi AC) |
| Storage | Expandable (up to ~256 GB) |
| Power Consumption | ~18.91 W |
| Operating System | SonicOS 7 |
| Form Factor | Desktop or 1U rack-mountable |
| VLAN Interfaces Supported | 128 VLANs |
