Detailed Specifications

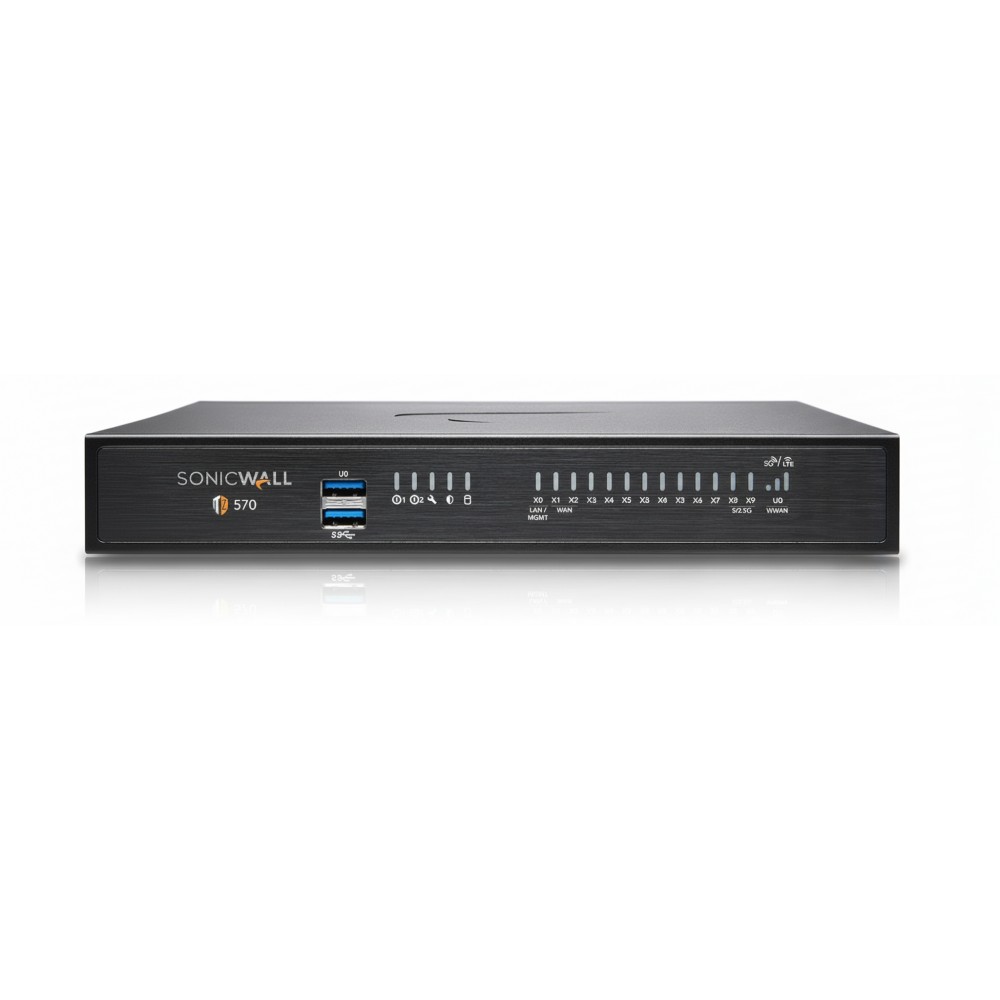

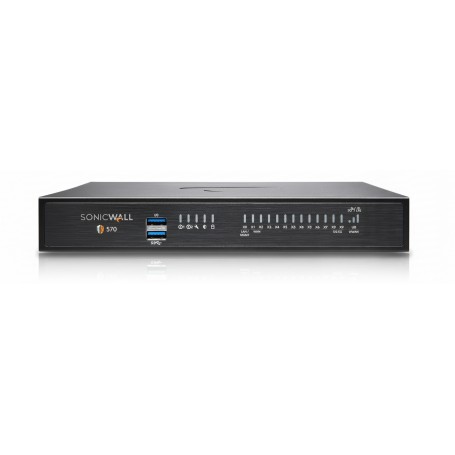

SonicWall TZ570 (02-SSC-5661) - Gen-7 4 Gbps Next-Generation Firewall + 3-Yr Essential Edition
Overview
The SonicWall TZ570, SKU 02-SSC-5661, is a seventh-generation next-generation firewall (NGFW) appliance built for branch offices, small to medium businesses, and SD-Branch deployments. It includes a 3-year Secure Upgrade Plus Essential Protection license, offering comprehensive security features such as intrusion prevention, gateway anti-malware, application control, content filtering, and real-time memory inspection.In terms of performance, the TZ570 delivers 4.0 Gbps firewall throughput, 2.0 Gbps threat-prevention throughput, and 1.8 Gbps IPsec VPN throughput. It supports up to 1,250,000 SPI connections and 400,000 DPI connections, enabling high session density in demanding environments.Hardware-wise, the device is compact and versatile, with 8 × 1 Gb RJ-45 ports, 2 × 5 Gb SFP+ slots, 2 USB 3.0 ports, and a console interface. It runs SonicOS 7, which enables features like SD-WAN, zero-touch provisioning, VLAN segmentation, and centralized management. The TZ570 also supports storage expansion (up to 256 GB) for local logging, reporting, or caching.
Key Features
4 Gbps firewall throughput × handles high-speed branch or site traffic reliably.
2 Gbps threat prevention × full NGFW protection (IPS, malware, SSL).
1.8 Gbps VPN × robust IPsec throughput for secure site-to-site or remote connectivity.
Multi-gig connectivity × 8×1 GbE + 2×5 Gb SFP+ for flexible deployment.
3-Year Essential Protection × full security stack + 24×7 support.
SonicOS 7 × modern OS with SD-WAN, centralized management, and advanced features.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-5661 |
| Product Type | Next-Generation Firewall + 3-Year Essential License |
| Firewall Throughput | 4.0 Gbps |
| Threat Prevention Throughput | 2.0 Gbps |
| VPN (IPSec) Throughput | 1.8 Gbps |
| SPI Connections (Max) | ~1,250,000 |
| DPI Connections (Max) | ~400,000 |
| New Connections / Sec | ~16,000 |
| Interfaces / Ports | 8 × 1 GbE RJ-45, 2 × 5 Gb SFP+, 2 × USB 3.0, 1 × Console |
| Storage | Supports expansion up to ~256 GB |
| Form Factor | Desktop or 1U Rack |
| Power | External Power Adapter |
| Operating Temperature | 0-40 °C |
| VLAN Interfaces | 256 |
| Encryption / Authentication | DES, 3DES, MD5, SHA-1, AES-128/192/256 |
