Detailed Specifications

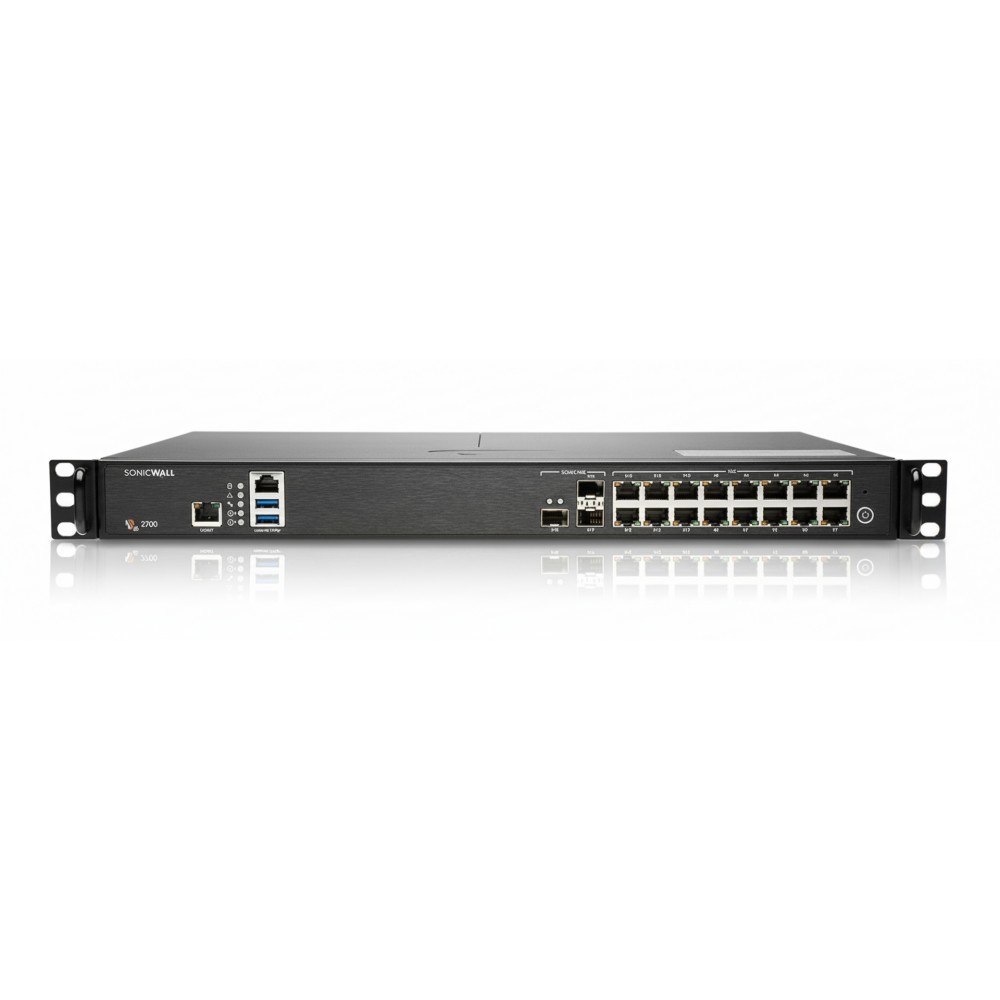

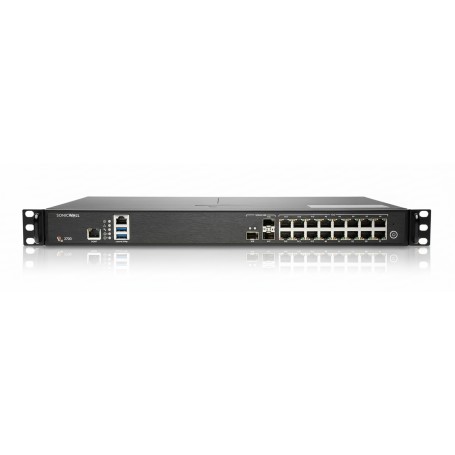

SonicWall NSa 2700 (02-SSC-4324) - Gen-7 High-Throughput NGFW Appliance
Overview
The SonicWall NSa 2700, SKU 02-SSC-4324, is a 1U rack-mounted, Gen-7 next-generation firewall crafted for medium to large enterprise edge deployments. Its hardware is optimized for high-throughput networks, combining 16×1 GbE ports with 3 × 10 GbE SFP+ uplinks to support both dense LAN connectivity and high-speed uplinks.Running SonicOS 7, the device supports advanced features like SD-WAN, zero-touch provisioning, and strong encrypted traffic inspection. The NSa 2700 delivers 5.5 Gbps firewall throughput, and is capable of deep packet inspection with high threat-prevention performance. It's built to scale with local storage options for caching and log retention, while enabling large numbers of concurrent connections and VPNs.
Key Features
5.5 Gbps firewall throughput × handles heavy traffic loads for enterprise networks.
Multi-gig ports × 16×1 GbE plus 3×10G SFP+ for flexible deployment.
Strong threat prevention × deep inspection, IPS, and encrypted traffic handling.
SonicOS 7 × modern OS with SD-WAN, zero-touch setup, and centralized policy engine.
High session scale × supports many concurrent users, connections, and VPN tunnels.
Expandable storage × supports increased capacity for logs, reports, or caching.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-4324 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | ~5.5 Gbps |
| Threat Prevention Throughput | ~3.0 Gbps |
| IPS Throughput | ~3.4 Gbps |
| Application Inspection Throughput | ~3.6 Gbps |
| Anti-Malware Inspection Throughput | ~2.9 Gbps |
| IPSec VPN Throughput | ~2.1 Gbps |
| New Connections / Sec | ~21,500 |
| Maximum SPI Connections | ~1,500,000 |
| VLAN Interfaces | 256 |
| Interfaces / Ports | 16×1 GbE RJ-45, 3×10 GbE SFP+, 2×USB 3.0, 1×Console, 1×Mgmt |
| Storage | 64 GB M.2 (expandable up to 256 GB) |
| Form Factor | 1U, Rack-Mount |
| Power Consumption | ~21.5 W |
| Power Supply | 60W |
| Operating Temperature | 0-40 °C |
| Encryption / Authentication | DES, 3DES, AES 128/192/256, MD5, SHA-1 |
