Detailed Specifications
SonicWall NSa 3700 (02-SSC-4326) - Gen-7 High-Performance 5.5 Gbps NGFW
Overview

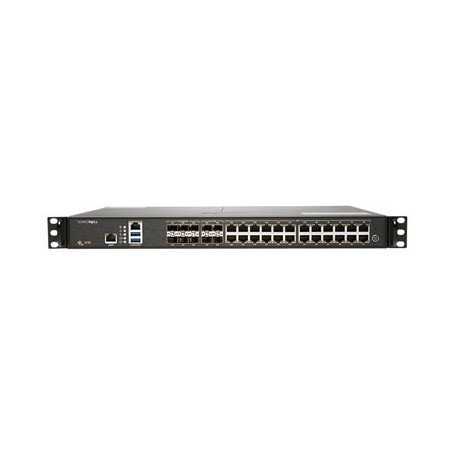

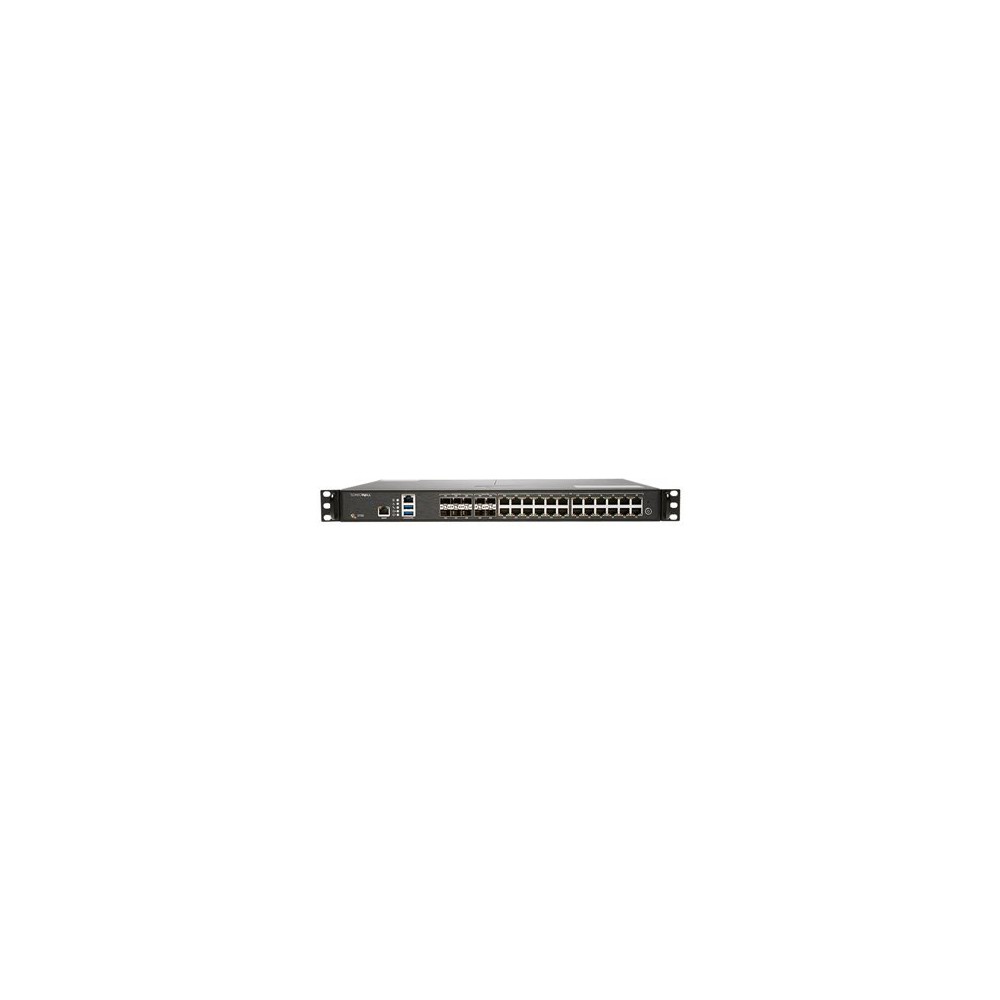

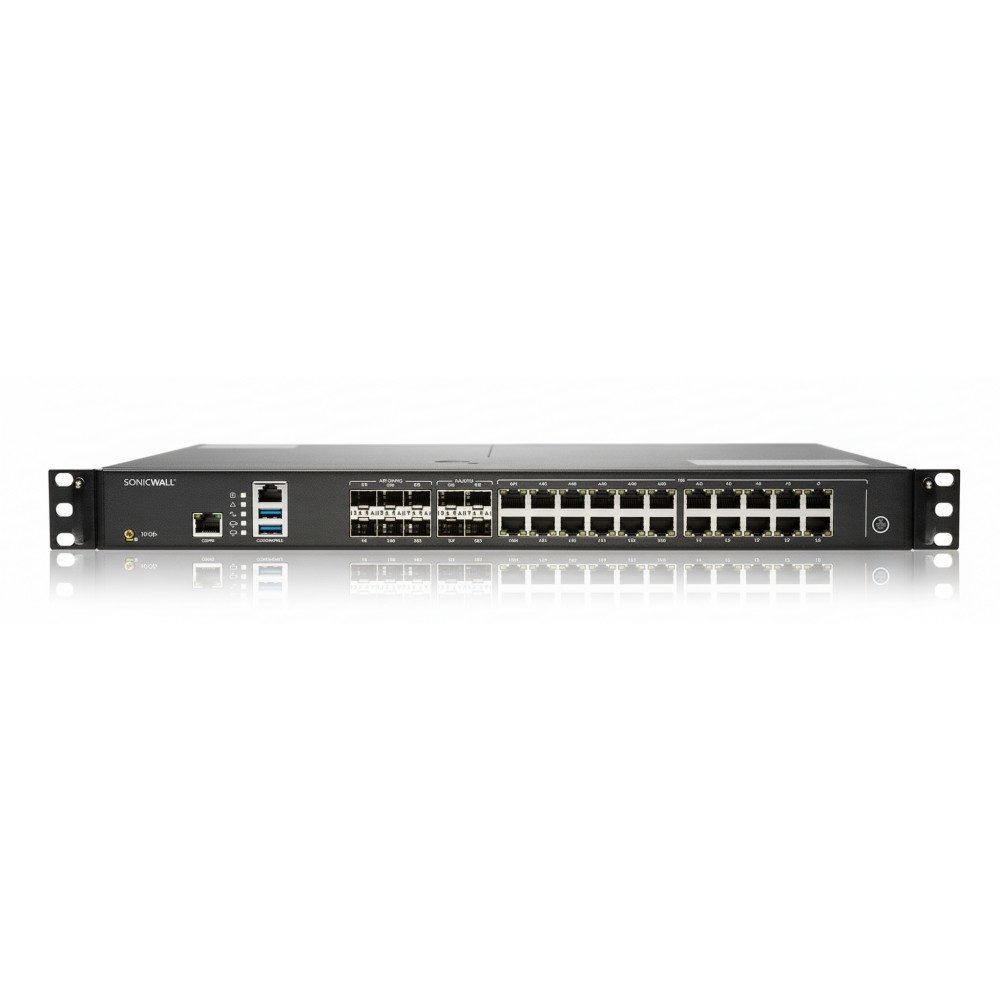

The SonicWall NSa 3700, SKU 02-SSC-4326, is a 1U rack-mount next-generation firewall built for medium to large enterprises needing strong performance and advanced security. This device is built to inspect high volumes of traffic, including encrypted flows, while delivering enterprise-grade features like intrusion prevention, application control, TLS/SSL decryption, and Secure SD-WAN.On the hardware side, it packs 24 × 1 GbE ports, 3 × 10 GbE SFP+ slots, and 2 USB 3.0 ports, giving you both high port density and high-speed uplink capacity. The OS (SonicOS 7) supports advanced features such as centralized management, clustering, and high-performance DPI (deep packet inspection).Performance-wise, it supports about 5.5 Gbps of firewall throughput, 3.5 Gbps of threat-prevention throughput, and allows a strong number of SSL connections and VPNs. With high connection capacity and expandability for storage (logs, reports, caching), it's designed for critical network edges where both speed and security are non-negotiable.
Key Features
5.5 Gbps firewall throughput × high-speed inspection with room for growth.
3.5 Gbps threat prevention × IPS, malware protection, and SSL decryption.
24 × 1 GbE + 3 × 10 GbE SFP+ × high port count and multi-gig uplinks.
Deep DPI capacity × handles complex traffic and application control.
SonicOS 7 × modern OS with SD-WAN, clustering, and centralized policies.
High session scale × supports large numbers of connections, SSL, and VPNs.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-4326 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | ~5.5 Gbps |
| Threat Prevention Throughput | ~3.5 Gbps |
| IPS Throughput | ~3.8 Gbps |
| IPSec VPN Throughput | ~2.2 Gbps |
| New Connections / Sec | ~22,500 |
| SPI Connections (Max) | ~2,000,000 |
| DPI Connections (Max) | ~750,000 |
| SFP+ / Ports | 24 × 1 GbE RJ-45, 3 × 10 GbE SFP+, 2 × USB 3.0, 1 × Console |
| Storage | 128 GB M.2 (expandable) |
| VLAN Interfaces | 256 |
| Form Factor | 1U Rack Mount |
| Power Consumption | ~36.3 W |
| Operating Temperature | 0-40 °C |
| Security Algorithms | DES, 3DES, AES (128/192/256), MD5, SHA-1 |
