Detailed Specifications
SonicWall NSa 2700 (02-SSC-8199) - Gen-7 5.5 Gbps Next-Generation Firewall
Overview

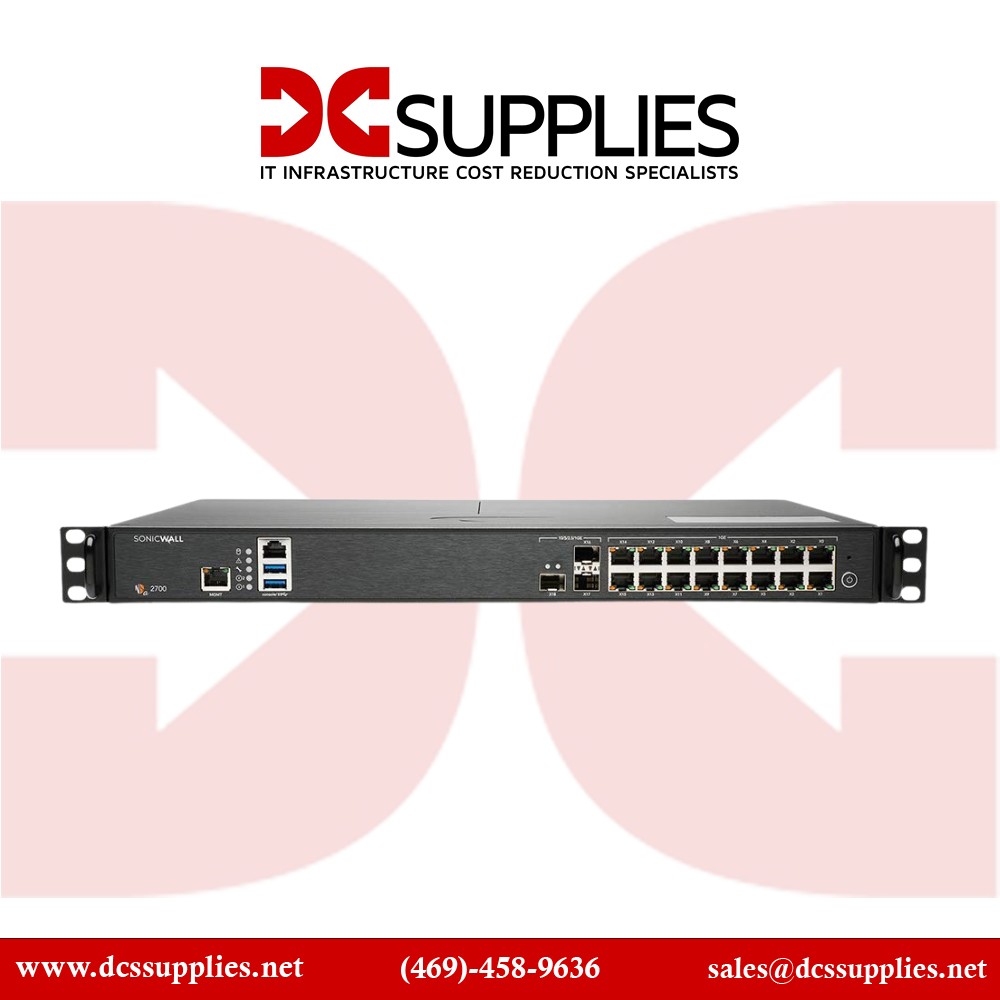

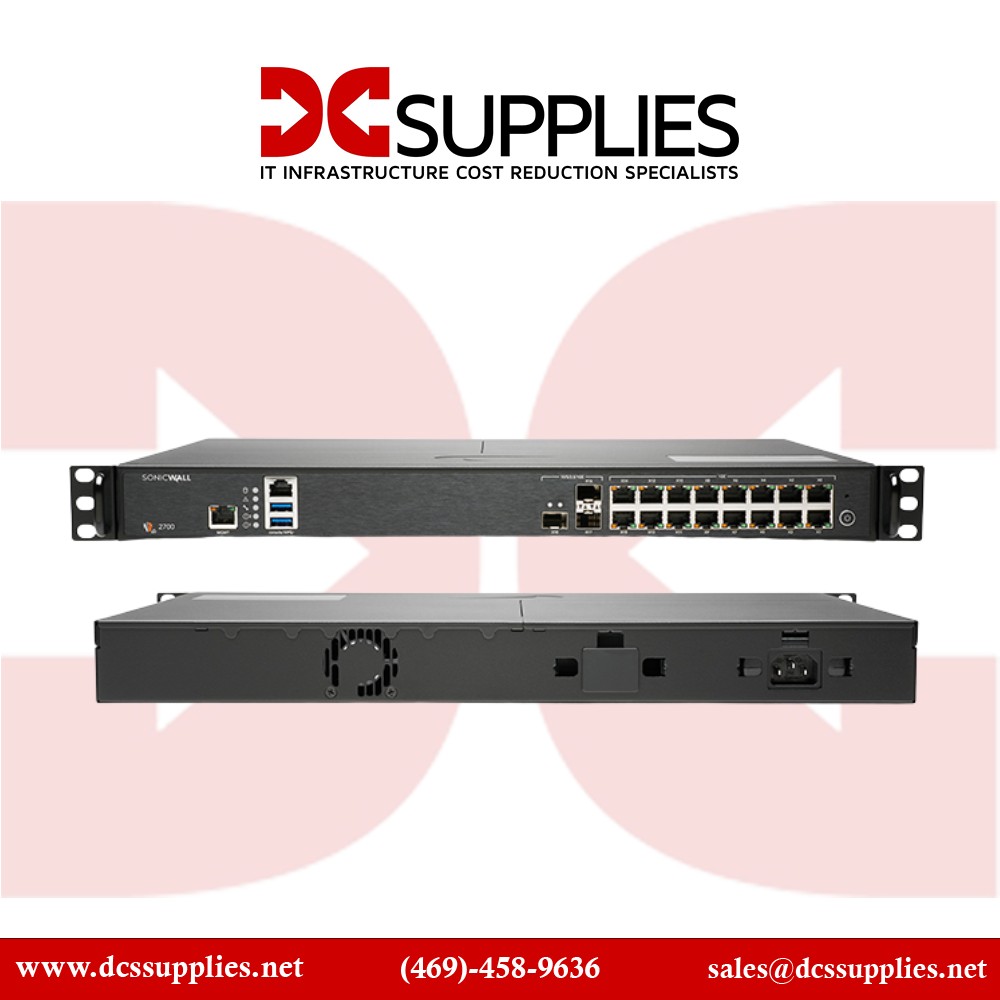

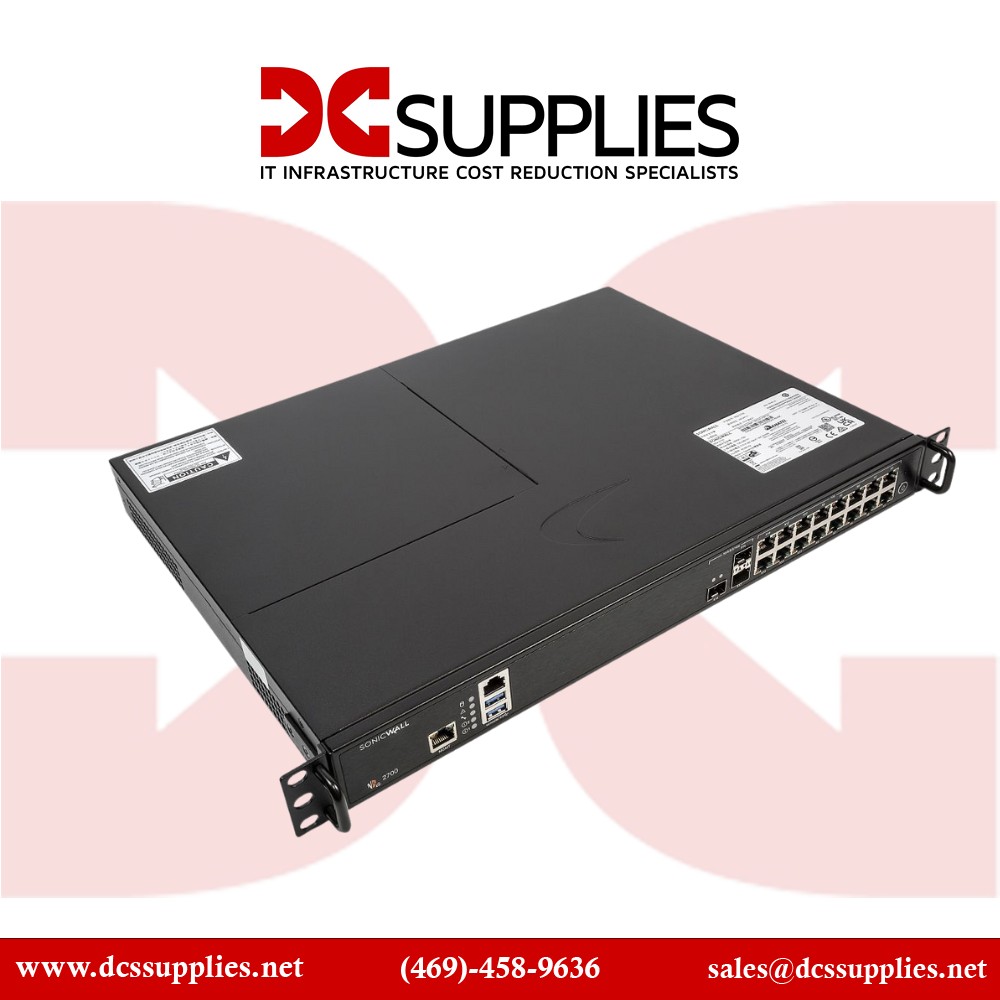

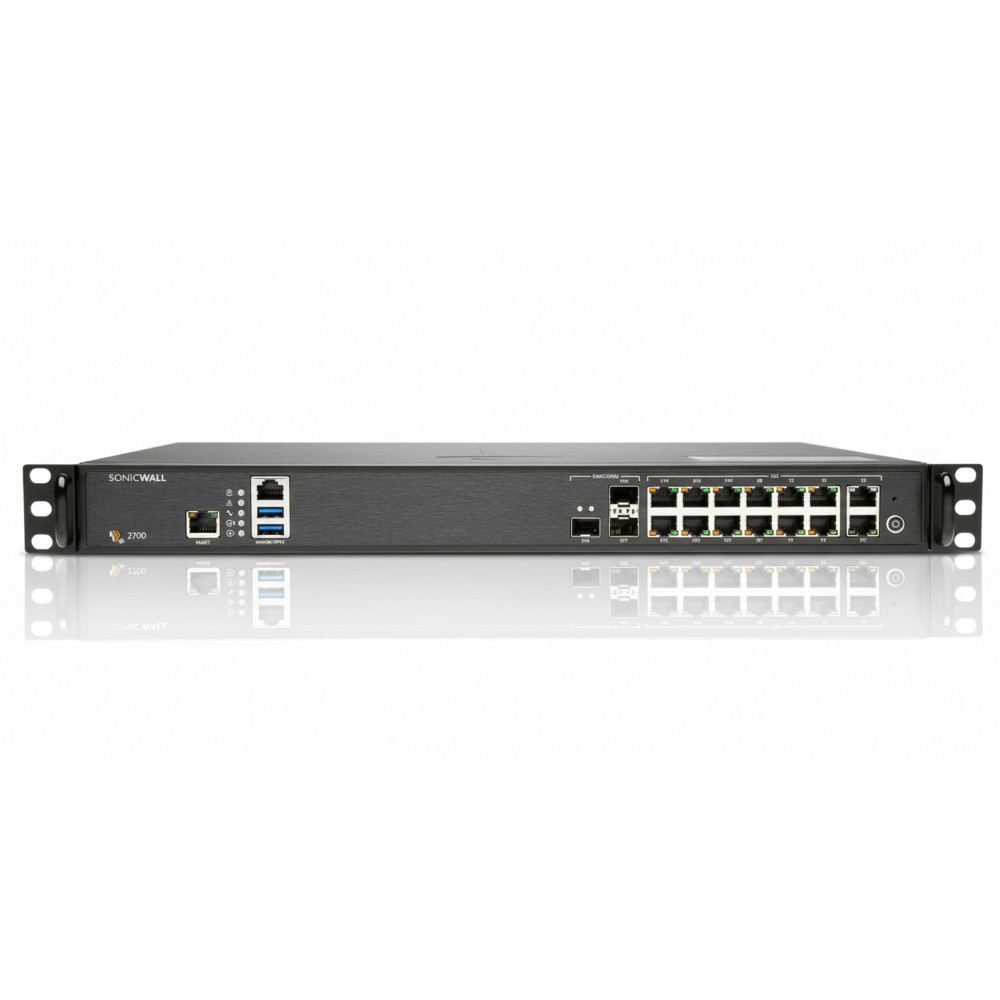

The SonicWall NSa 2700, SKU 02-SSC-8199, is a high-performance, rack-mount next-generation firewall aimed at mid-to-large enterprise perimeter or WAN-edge deployments. It provides 5.5 Gbps firewall throughput, making it suitable for high-throughput networks that require deep packet inspection and full NGFW capabilities.This appliance supports strong VPN capacity, advanced threat prevention, and scalable connection counts. With 10 GbE support and 256 GB of built-in storage, it's designed for environments that need high-speed uplinks, local log caching, or large traffic volumes. SonicOS (Gen-7) powers modern security features, SD-WAN, and centralized management.
Key Features
5.5 Gbps firewall throughput × handles high traffic loads with margin.
Large storage capacity (256 GB) × supports logging, caching, and firmware snapshots.
Multi-gig / 10 GbE capability × designed for high-speed uplink and core-edge links.
Enterprise session capacity × scalable to thousands of concurrent connections.
Gen-7 SonicOS × supports SD-WAN, zero-touch deployment, and advanced security policies.
High VPN throughput & capacity × supports robust site-to-site and remote connections.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-8199 |
| Product Type | Next-Generation Firewall Appliance |
| Firewall Throughput | ~5.5 Gbps |
| IPSec VPN Throughput | ~2.1 Gbps |
| SSL Inspection Throughput | ~800 Mbps |
| Maximum DPI Connections | ~500,000 |
| New Connections / Second | ~21,500 |
| SPI (Stateful) Connections | Up to ~1,500,000 |
| Interfaces / Ports | 16 × 1 GbE RJ-45, 3 × SFP+ (10G), USB, Console |
| Storage | 256 GB Flash / SSD |
| Power Consumption | ~21.5 W |
| Power Supply | 60 W external |
| Form Factor | 1U, Rack-mountable |
| Operating Temperature | 0-40 °C |
