Detailed Specifications

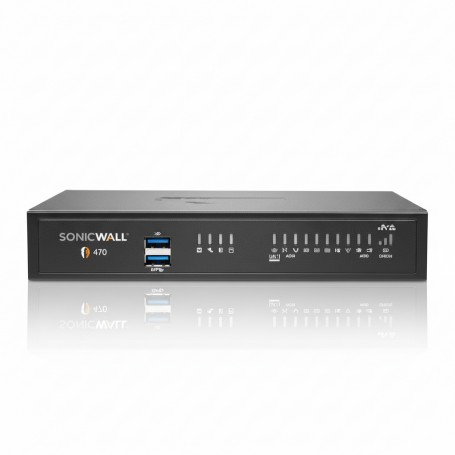

SonicWall 03-SSC-3012 TZ470 Gen 7 security appliance with 3 years Protection
Overview
The SonicWall TZ470, SKU 03-SSC-3012, is a Gen-7 next-generation firewall in a compact desktop (or 1U rack) form factor. This SKU comes with 3 years of Essential Protection plus 1 year of Cloud Secure Edge, giving you a strong bundle of security: intrusion prevention, malware protection, application control, content filtering, and SSL/TLS inspection.It delivers 3.5 Gbps of firewall throughput, 1.5 Gbps threat-prevention throughput, 2 Gbps application inspection, and 2 Gbps IPS throughput. It supports up to 150 IPsec VPN tunnels. Connectivity is flexible: there are 8 × 1 GbE RJ-45 ports, 2 × 2.5 GbE SFP+ ports, 2 × USB 3.0 ports, and a console port.Running SonicOS 7, the TZ470 supports SD-WAN, zero-touch provisioning, VLAN segmentation, and centralized management. It also supports expandable storage (up to 256 GB) for logs, reports, or caching.
Key Features
3.5 Gbps firewall throughput × handles high-speed traffic with room for security inspection.
1.5 Gbps threat prevention × supports IPS, anti-malware, and SSL decryption.
Multi-gig connectivity × 8×1 GbE + 2×2.5 GbE for flexible network design.
3-Year Essential Protection + 1-Year Cloud Secure Edge × full NGFW stack + cloud management.
SonicOS 7 × SD-WAN, zero-touch deployment, and policy management.
Expandable storage × up to 256 GB for logging and firmware.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-3012 |
| Product Type | Next-Generation Firewall Appliance + 3-Yr Security Bundle |
| Firewall Throughput | 3.5 Gbps |
| Threat Prevention Throughput | 1.5 Gbps |
| Application Inspection Throughput | 2 Gbps |
| IPS/IDS Throughput | 2 Gbps |
| SSL/TLS Decryption Throughput | ~600 Mbps |
| IPSec VPN Throughput | ~1.5 Gbps |
| New Connections / Sec | ~12,000 |
| Max SPI Connections | ~1,000,000 |
| Max DPI Connections | ~250,000 |
| Max DPI SSL Connections | ~35,000 |
| VLAN Interfaces Supported | 128 |
| IPSec VPN Tunnels | 150 |
| IPSec VPN Clients | 5 (up to 200) |
| Interfaces | 8×1 GbE RJ-45, 2×2.5 GbE SFP+, 2×USB 3.0, 1×Console |
| Form Factor | Desktop / 1U Rack |
| Power Input | 100-240 V AC |
| Power Consumption | ~19.95 W |
| Operating Temperature | 0-40 °C |
| Weight | ~830 g |
