Detailed Specifications
SonicWall TZ270 (02-SSC-6846) - Gen-7 2 Gbps Next-Gen Firewall + 2-Year Essential Edition
Overview
The SonicWall TZ270, SKU 02-SSC-6846, is a compact, seventh-generation next-generation firewall designed for small to mid-sized businesses, branch offices, and remote sites. This SKU includes 2 years of Essential Protection, which provides intrusion prevention, anti-malware, content filtering, application control, and 24×7 support.On performance, the TZ270 delivers around 2 Gbps of firewall throughput and 750 Mbps of threat-prevention throughput, making it well-suited for typical business Internet links and secure inspection. The device comes with 8 × 1 GbE RJ-45 ports, 2 USB 3.0 ports, and a console port, giving network teams flexibility in deployment.Running SonicOS 7, the TZ270 supports modern features such as SD-WAN, zero-touch provisioning, and centralized management. It also supports expandable storage (up to 256 GB) for local logging, report storage, or caching. Its desktop or 1U-rack form factor makes it easy to install in branch closets or smaller racks.
Key Features
2 Gbps firewall throughput × handles business-class traffic with room for growth.
750 Mbps threat prevention × protects against malware, intrusion, and advanced threats.
8 Gigabit RJ-45 ports × enables flexible LAN and WAN segmentation.
2-Year Essential Protection × includes top-tier security services + 24×7 support.
SonicOS 7 × SD-WAN, zero-touch deployment, and unified security.
Expandable storage × up to 256 GB for logs, firmware, or caching.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-6846 |
| Product Type | Next-Generation Firewall + 2-Year Essential Protection |
| Firewall Throughput | ~2.0 Gbps |
| Threat Prevention Throughput | ~750 Mbps |
| IPSec VPN Throughput | ~750 Mbps |
| Maximum SPI Connections | ~750,000 |
| Maximum DPI Connections | ~150,000 |
| New Connections / Second | ~6,000 |

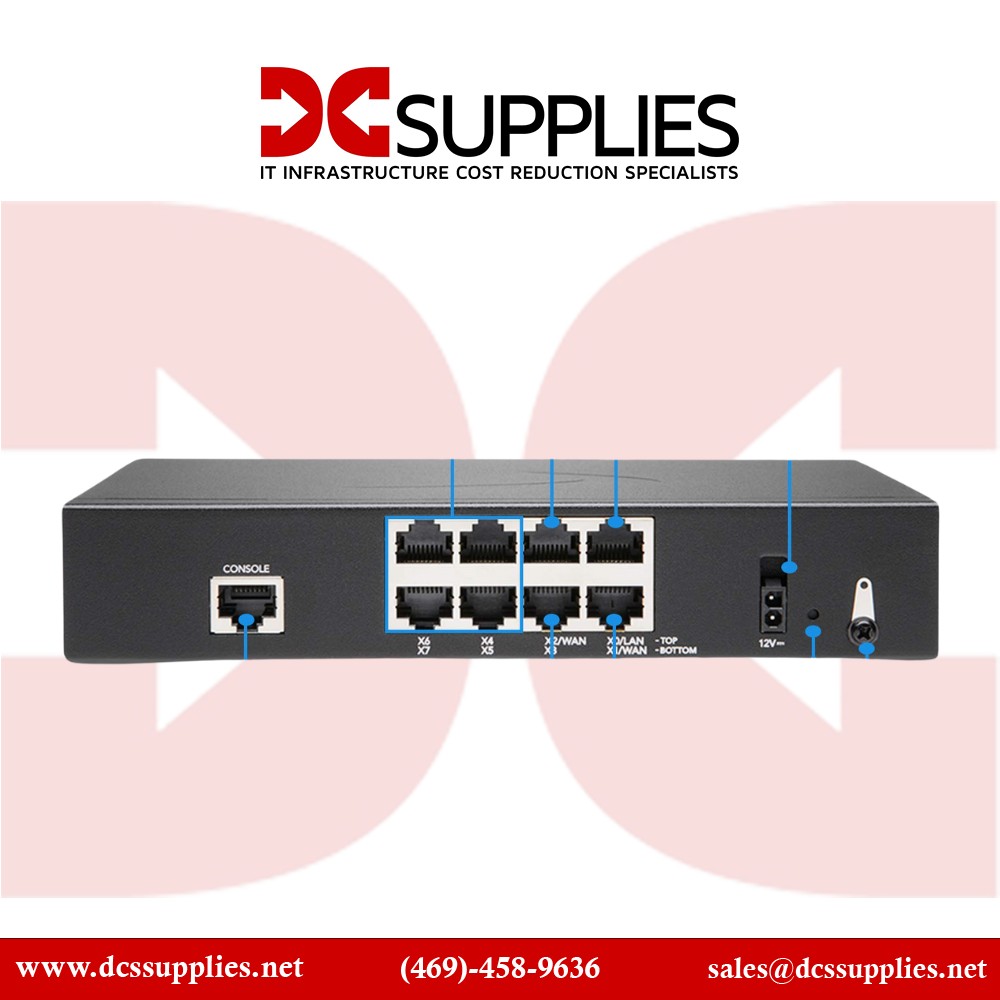

| Interfaces / Ports | 8×1 GbE RJ-45, 2×USB 3.0, 1×Console |
| VLAN Interfaces Supported | 64 |
| Data Encryption / Authentication | DES, 3DES, MD5, SHA-1, AES-128/192/256 |
| Form Factor | Desktop or 1U Rack |
| Storage | Expandable, up to 256 GB |
| Operating Temperature | 0-40 °C |
