Detailed Specifications
SonicWall TZ470W (03-SSC-3016) - Gen-7 3.5 Gbps NGFW with Wi-Fi and Long-Term Security Bundle
Overview

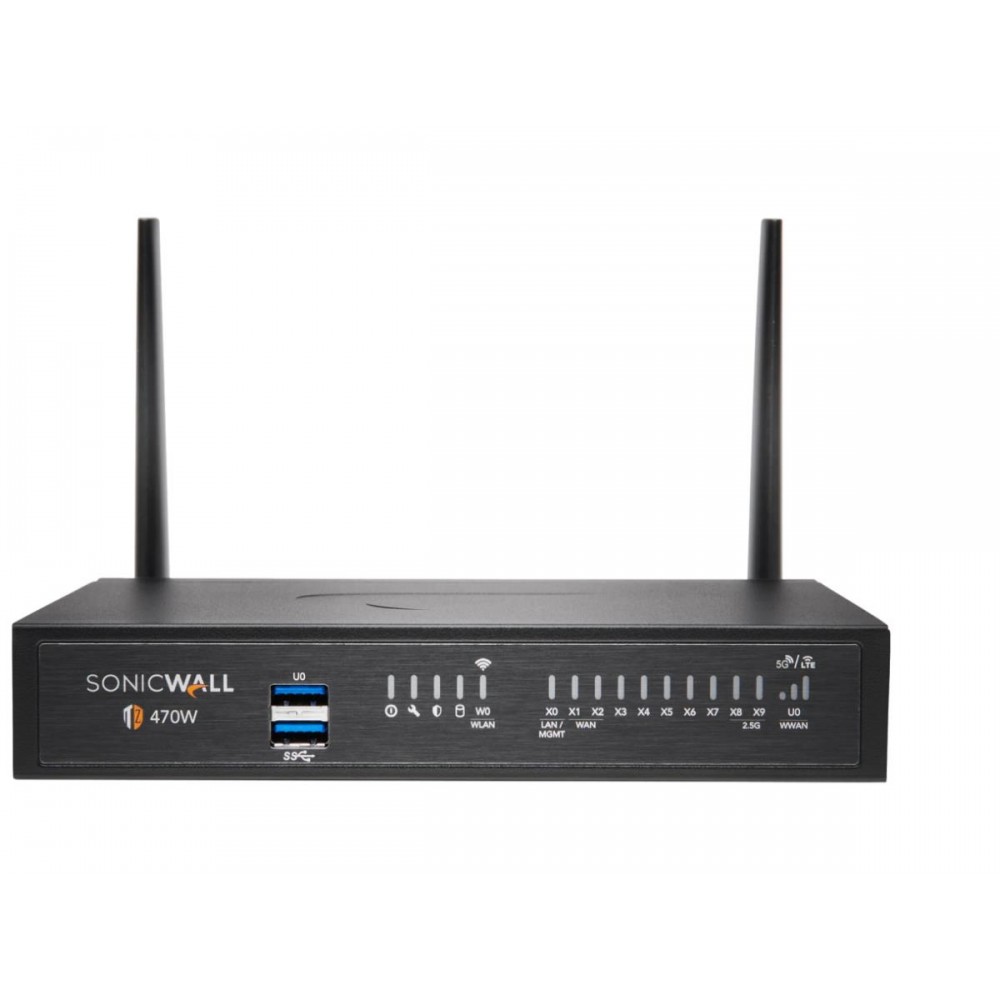

The SonicWall TZ470W, SKU 03-SSC-3016, is a seventh-generation next-generation firewall designed for branch offices, small businesses, or SD-Branch sites that require both wired and wireless security in a single appliance. It includes 3 years of Advanced Protection Services plus 1 year of Cloud Secure Edge, offering intrusion prevention, gateway anti-malware, application control, content filtering, real-time deep memory inspection, and centralized cloud-based management.Performance-wise, it offers 3.5 Gbps firewall throughput, 1.5 Gbps threat-prevention, and supports up to 200 VPN tunnels, which is strong for highly connected and distributed branch environments. The device has 8 × 1 GbE RJ-45 ports, 2 × 2.5 GbE SFP+, 2 × USB 3.0, and a console port × enabling flexible wired networking. For wireless, it supports dual-band 802.11ac (Wi-Fi 5) with solid coverage and performance.Running on SonicOS 7, the TZ470W supports SD-WAN, zero-touch deployment, and scalable management. The appliance's storage is expandable (up to ~256 GB), making it suitable for local logs, reporting, or caching. Its compact form factor and high throughput make it a future-proof choice for secure, high-speed branch deployments.
Key Features
3.5 Gbps firewall throughput × balances performance and deep packet inspection.
1.5 Gbps threat prevention × enables strong IPS, antivirus, and SSL/TLS inspection.
Integrated Wi-Fi AC (802.11ac) × no need for separate access point at branch.
Multi-gig connectivity × 8×1 GbE + 2×2.5 GbE for flexible network design.
3-Year Advanced Protection + 1-Year Cloud Secure Edge × full NGFW service + cloud management.
SonicOS 7 × SD-WAN ready, zero-touch deployment, and unified policy control.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-3016 |
| Product Type | Next-Generation Firewall Appliance + 3-year Security Bundle |
| Firewall Throughput | 3.5 Gbps |
| Threat Prevention Throughput | 1.5 Gbp |
| VPN (IPSec) Throughput / Tunnels | Up to ~1.5 Gbps; supports 200 VPN tunnels |
| New Connections / Second | ~12,000 |
| Maximum SPI Connections | ~1,000,000 |
| Maximum DPI Connections | ~250,000 |
| Max DPI SSL Connections | ~35,000 |

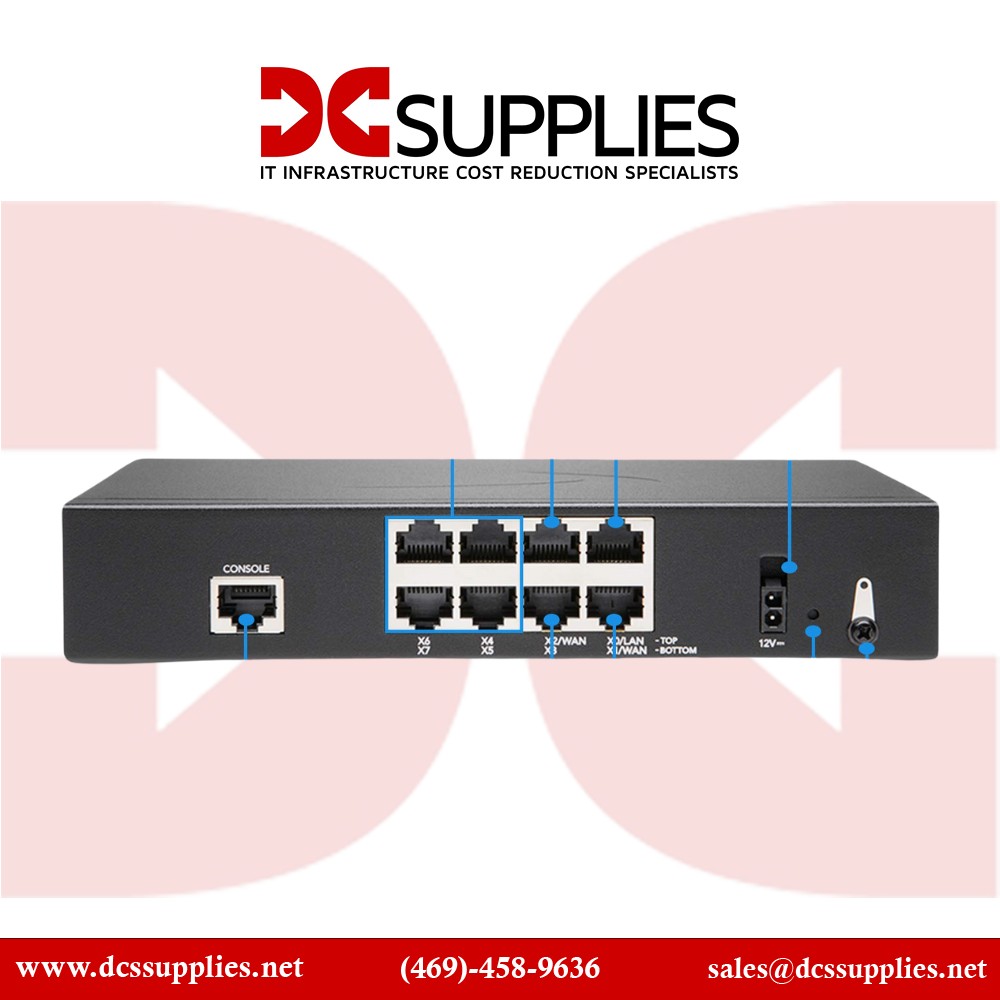

| Ports / Interfaces | 8 × 1 GbE RJ-45, 2 × 2.5 GbE SFP+, 2 × USB 3.0, 1 × Console |
| Wireless Standard | IEEE 802.11ac (Wi-Fi 5) |
| Expansion Slots | 2 × SFP+ |
| Power Consumption | ~21.98 W |
| Form Factor | Desktop or 1U Rack-mountable |
| Operating System | SonicOS 7.0 |
| Storage | Built-in + optionally expandable (~256 GB) |
| Operating Temperature | 0-40 °C |
