Detailed Specifications

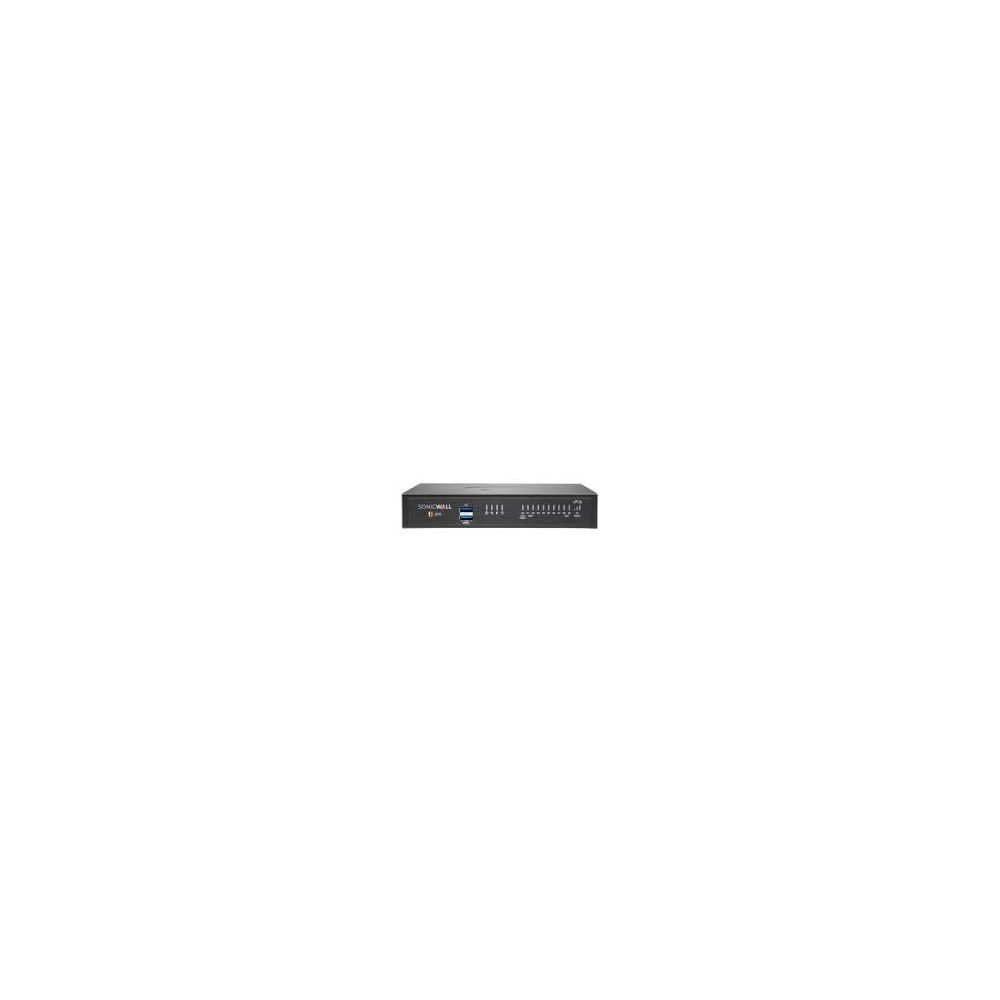

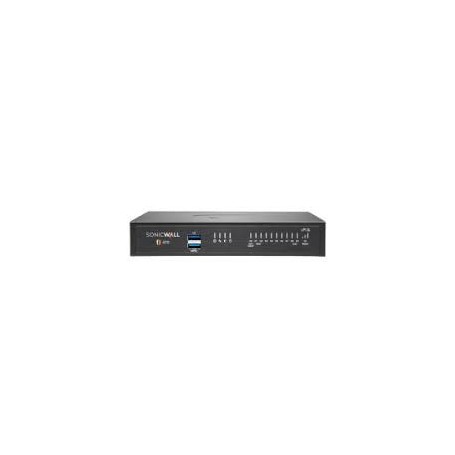

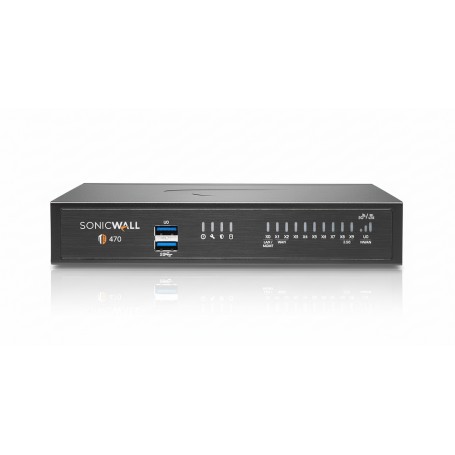

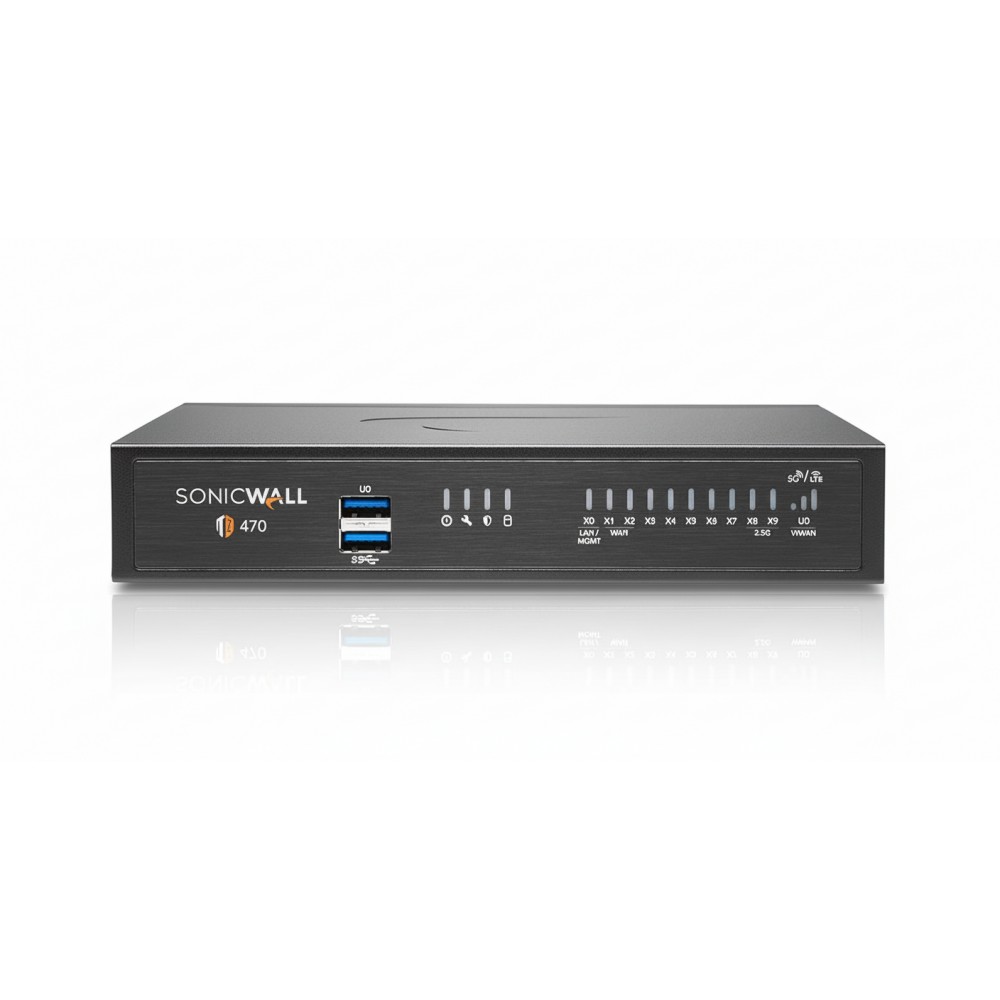

SonicWall TZ470 (02-SSC-6796) - Gen-7 3.5 Gbps Next-Gen Firewall + 2-Year Essential Edition
Overview
The SonicWall TZ470, SKU 02-SSC-6796, is a seventh-generation desktop or rack-mount firewall (1 U) tailored for small to mid-size branch or edge deployments. This SKU includes a 2-year Secure Upgrade Plus Essential Protection license, which gives you intrusion prevention, anti-malware, application control, content filtering, and 24×7 support.In terms of hardware, it offers 8×1 GbE RJ-45 ports and 2×2.5 GbE SFP+ expansion slots, providing flexibility for both LAN and high-speed uplink connections. On performance, the TZ470 delivers 3.5 Gbps firewall throughput, 1.5 Gbps threat prevention, 2 Gbps application throughput, and 2 Gbps IPS processing as per its spec sheet. It also supports 150 site-to-site VPN tunnels, making it a strong candidate for secure connectivity in distributed branch environments.Powered by SonicOS 7, the device supports SD-WAN, zero-touch deployment via SonicExpress, and centralized management. There is built-in storage with the option to expand (up to 256 GB) for logs, caching, and firmware backup. The compact form factor and modern multi-gig interfaces make it a future-proof choice for branch offices.
Key Features
3.5 Gbps firewall throughput × handles high-speed Internet or WAN links.
1.5 Gbps threat prevention × deep-packet inspection, IPS, malware protection.
8×1 GbE + 2×2.5 GbE × supports LAN and multi-gig uplinks.
2-Year Essential Protection × comprehensive security + support.
SonicOS 7 × SD-WAN, zero-touch deployment, centralized control.
Expandable storage up to 256 GB × for logs, reports, and backup.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-6796 |
| Product Type | Next-Generation Firewall + 2-Year Security Bundle |
| Firewall Throughput | 3.5 Gbps |
| Threat Prevention Throughput | 1.5 Gbps |
| Application Throughput | 2.0 Gbps |
| IPS / IDS Throughput | 2.0 Gbps |
| VPN Throughput (IPSec) | ~1.5 Gbps |
| New Connections / Second | ~12,000 |
| SPI Connections (Max) | ~1,000,000 |
| DPI Connections (Max) | ~250,000 |
| SSL / TLS Inspection Throughput | ~600 Mbps |
| VLAN Interfaces Supported | 128 |
| Ethernet Ports | 8 × 1 GbE RJ-45 |
| Expansion Slots | 2 × 2.5 GbE SFP+ |
| USB / Console | 2 × USB 3.0, 1 × Console |
| Storage | Internal + up to 256 GB |
| Form Factor | Desktop or 1U Rack |
| Power | External adapter |
| Operating Temperature | 0-40 °C |
| Weight | ~830 g |
