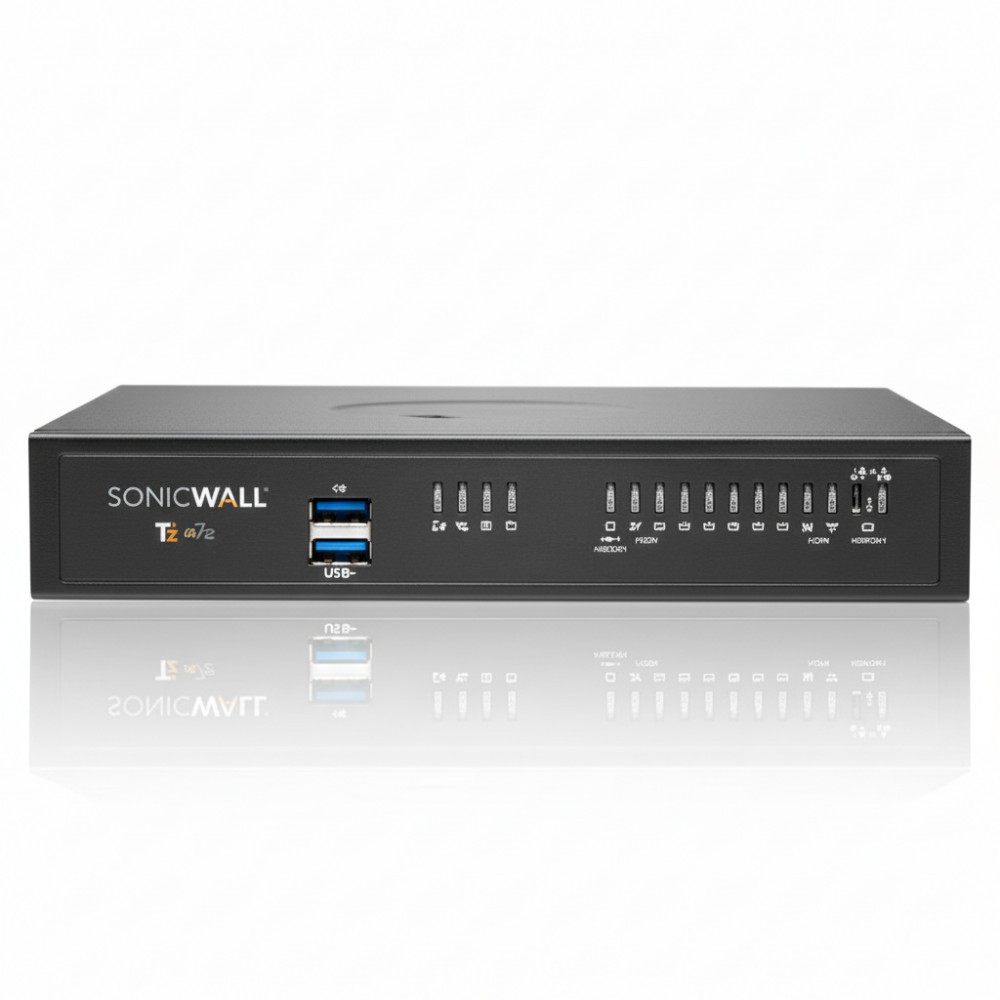

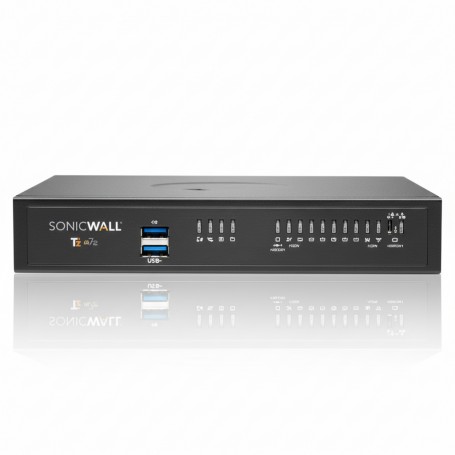

SonicWall TZ470 (02-SSC-6794) - Gen-7 3.5 Gbps Next-Gen Firewall + 1-Year Advanced Edition
Overview
The SonicWall TZ470, SKU 02-SSC-6794, is a next-generation firewall built for small to mid-size businesses or distributed enterprise branch sites. It packs powerful security into a compact, desktop or 1U form factor. This SKU includes a 1-year Advanced Protection Service Suite, covering intrusion prevention, gateway anti-malware, application control, content filtering, and real-time deep memory inspection.Performance-wise, the TZ470 delivers 3.5 Gbps firewall throughput and about 1.5 Gbps threat prevention. It supports 8 × 1 GbE RJ-45 ports, 2 × 2.5 GbE SFP+ uplink ports, 2 USB 3.0 ports, and a console port. With SonicOS 7, it offers SD-WAN, zero-touch provisioning, and centralized management × making it ideal for SD-Branch deployments or secure internet edge setups.Expandable storage (up to 256 GB) supports local logging, reporting, caching, and firmware backup. The firewall is also highly scalable in connectivity, giving future-growth flexibility for higher-speed links or deployments with heavy traffic.
Key Features
3.5 Gbps firewall throughput × supports high-speed branch or edge scenarios.
1.5 Gbps threat prevention × deep packet inspection, IPS, anti-malware, SSL/TLS decryption.
Multi-gig connectivity × 8×1 GbE and 2×2.5 GbE SFP+ for flexible network design.
1-Year Advanced Protection Suite × full NGFW security + 24×7 support.
SonicOS 7 × SD-WAN, zero-touch deployment, and unified management.
Expandable storage to 256 GB × for logs, cache, or firmware snapshots.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-6794 |
| Product Type | Next-Generation Firewall + 1-Year Security Bundle |
| Firewall Throughput | ~3.5 Gbps |
| Threat Prevention Throughput | ~1.5 Gbps (Advanced Protection) |
| Management / OS | SonicOS 7.0 |

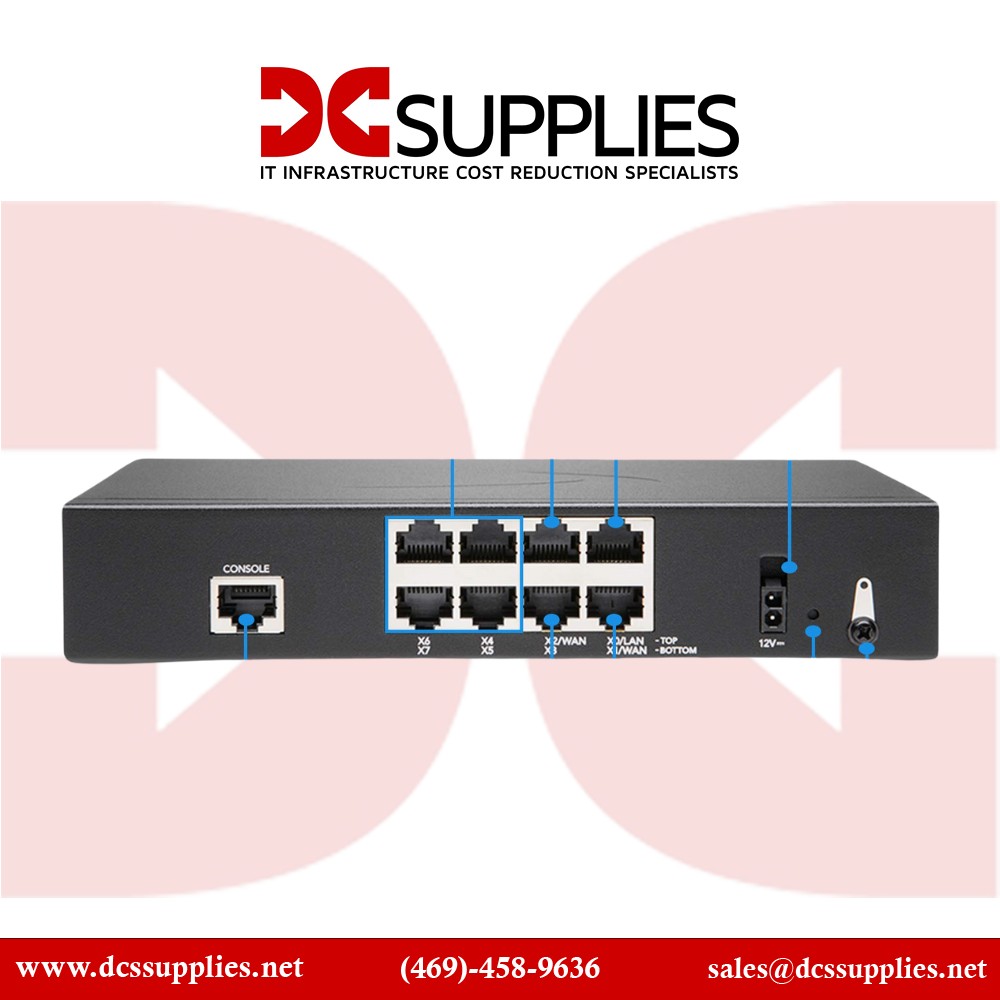

| Interfaces / Ports | 8 × 1 GbE RJ-45, 2 × 2.5 GbE SFP+, 2 × USB 3.0, 1 × Console |
| VPN Throughput (IPSec) | ~1.5 Gbps |
| Maximum Connections (SPI / DPI) | ~1,000,000 SPI / 250,000 DPI (per spec) |
| New Connections / Sec | ~12,000 / s |
| VLAN Interfaces | 128 (Gen-7 TZ range) |
| Storage Capacity | Up to 256 GB (expandable) |
| Form Factor | Desktop or 1U Rack-Mount |
| Power Consumption | ~19.95 W |
| Operating Temperature | 0-40 °C (typical) |
