Detailed Specifications

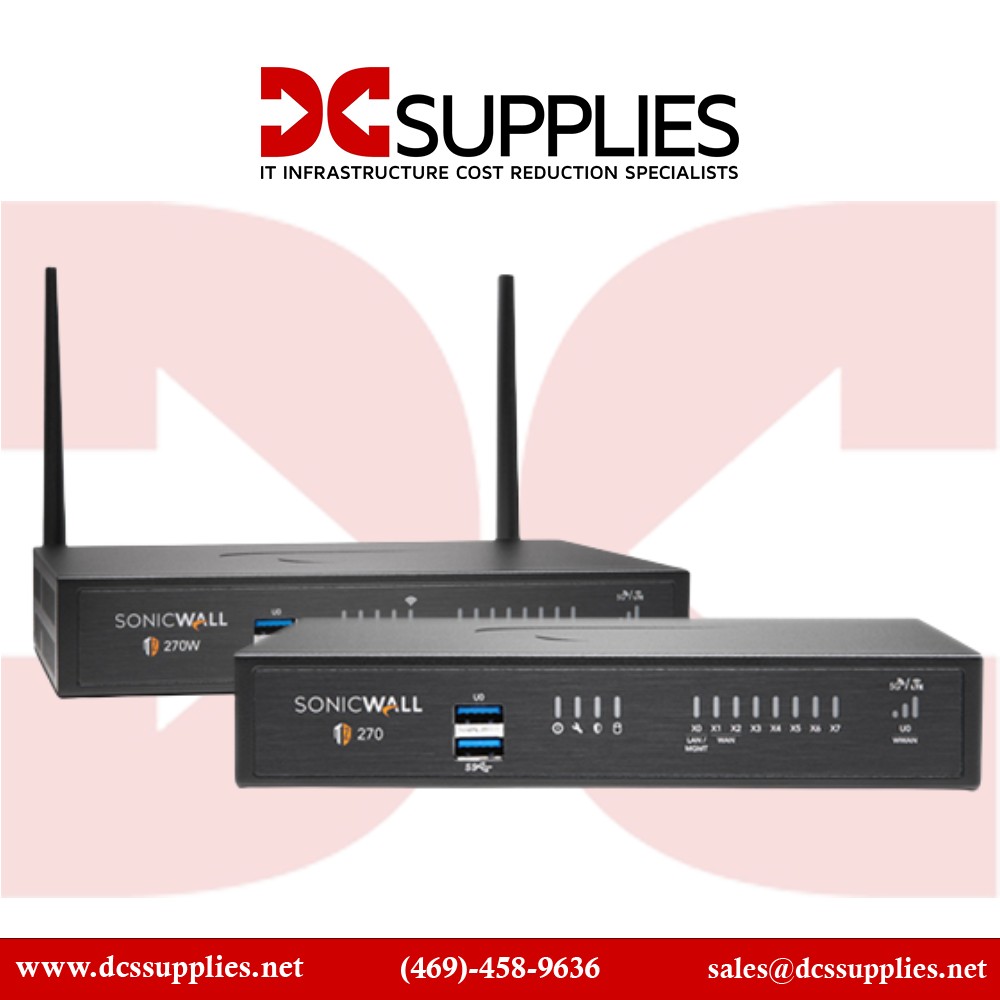

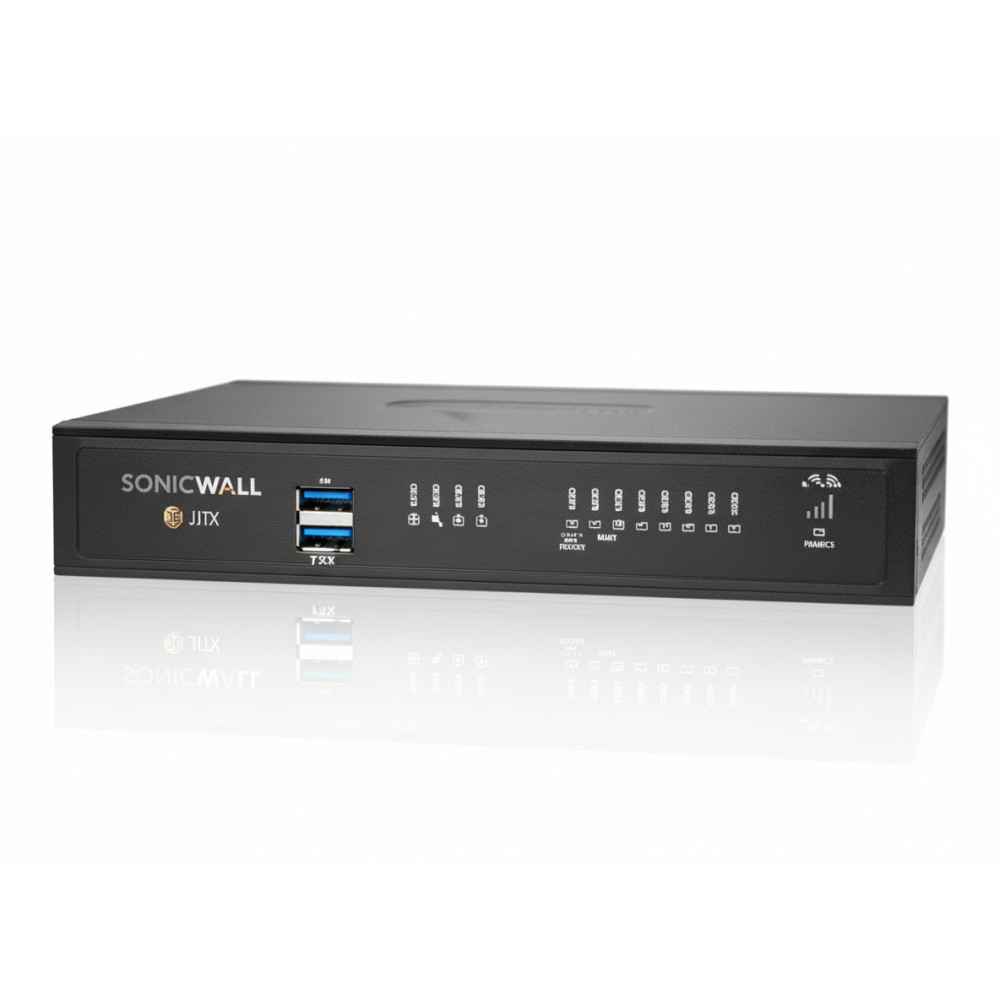

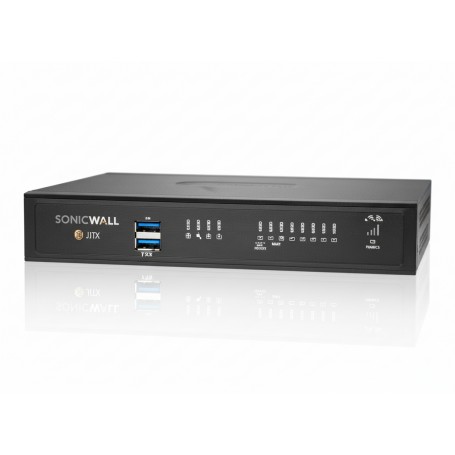

SonicWall TZ270W (02-SSC-7313) - Gen-7 2 Gbps NGFW with Wi-Fi 5 + 1-Year Threat Edition
Overview
The SonicWall TZ270W, SKU 02-SSC-7313, is a Gen-7 next-generation firewall that combines high-performance security and built-in Wi-Fi 5 (802.11ac). It comes bundled with 1 year of TotalSecure Threat Edition, giving you essential security services like intrusion prevention, gateway antivirus, content filtering, and real-time deep memory inspection.This model supports 2 Gbps firewall throughput, with 200 IPsec VPN tunnels, making it suitable for branch offices, remote sites, or small enterprises. The device has 8×1 GbE ports, USB 3.0, and a console port for flexible connectivity.Its wireless subsystem supports dual-band Wi-Fi 5, enabling secure and high-speed wireless access without needing a separate access point. Running SonicOS 7, it supports centralized management, zero-touch deployment, and SD-WAN, making it easy to manage in distributed deployments.
Key Features
2 Gbps firewall throughput × supports fast branch WAN and LAN traffic.
Integrated Wi-Fi 5 (802.11ac) × eliminates need for separate AP for small offices.
200 IPsec VPN tunnels × allows secure site-to-site and remote worker connections.
1-Year TotalSecure Threat Edition × includes IPS, malware, URL filtering, RTDMI.
8×1 GbE RJ-45 + USB + console × supports wired and management interfaces.
SonicOS 7 × SD-WAN support, zero-touch provisioning, and unified management.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-7313 |
| Product Type | Next-Generation Firewall Appliance + Security License |
| Firewall Throughput | 2 Gbps |
| Threat Prevention Throughput | ~750 Mbps |
| VPN Tunnels (IPsec) | Up to 200 |
| New Connections / Second | ~6,000 |
| Interfaces / Ports | 8 × 1 GbE RJ-45, USB 3.0, Console |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac (Wi-Fi 5) |
| Encryption / Authentication | DES, 3DES, MD5, SHA-1, AES-128/192/256, WEP, WPA, WPA2, EAP-PEAP, EAP-TLS |
| Power Consumption | ~18.91 W |
| Form Factor | Desktop or 1U Rack-mount |
| Operating Temperature | 0-40 °C (typical for TZ-series) |
| Security Service | 1-Year TotalSecure Threat Edition included |
