Detailed Specifications
SonicWall TZ370 (03-SSC-3004) - Gen-7 3 Gbps Next-Gen Firewall + 3-Year Advanced Protection Bundle
Overview

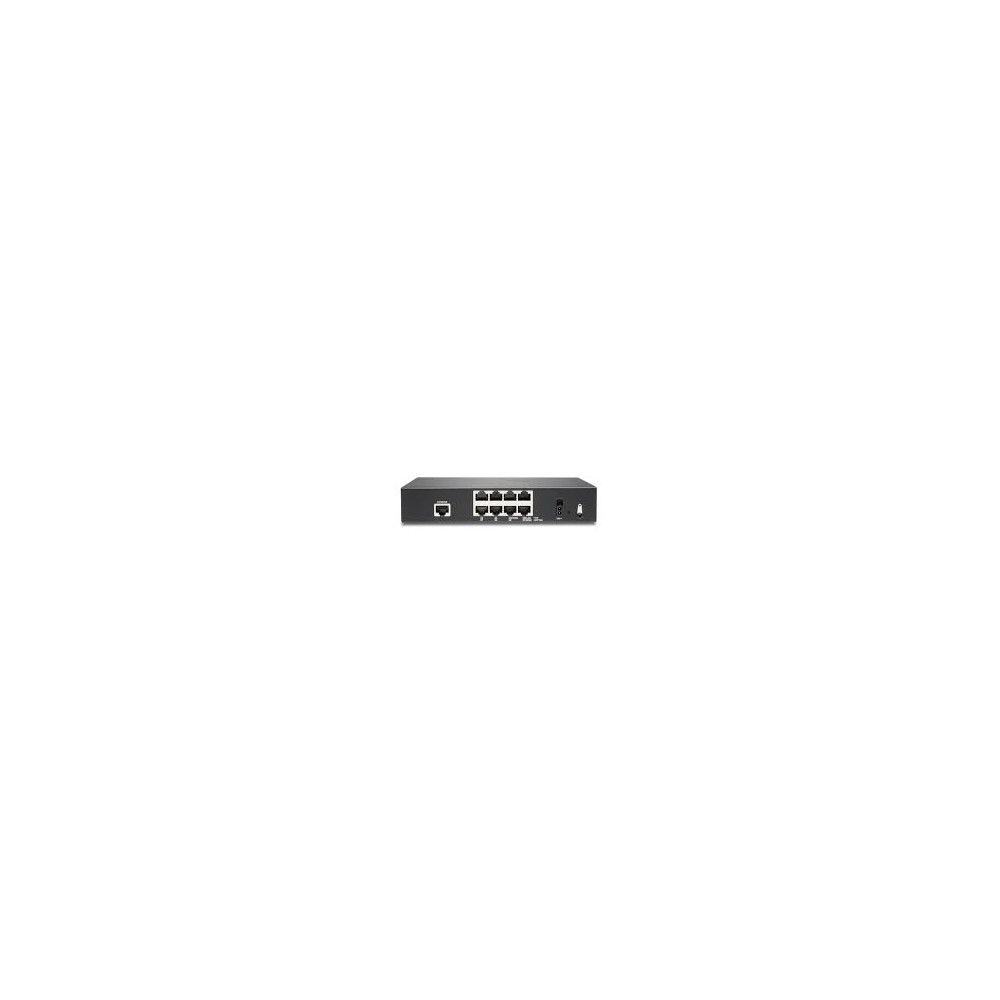

The SonicWall TZ370, SKU 03-SSC-3004, is a seventh-generation next-generation firewall in a compact desktop (or 1U rack) form factor. This particular SKU bundles 3 years of Advanced Protection Services plus 1 year of Cloud Secure Edge, giving robust security: intrusion prevention, application control, content filtering, real-time deep memory inspection (RTDMI), and centralized policy enforcement.It achieves 3 Gbps firewall throughput, 1 Gbps of threat prevention, and 1.5 Gbps application inspection. The IPS/IDS capacity is rated at 1.5 Gbps, and it can handle 100 site-to-site VPN tunnels. This makes it ideal for branch offices, small data centers, or remote locations where high-performance inspection and secure connectivity are needed without a bulky rack appliance.Running SonicOS 7, it supports SD-WAN, zero-touch deployment (SonicExpress), VLAN segmentation, and centralized management via NSM or REST API. The device has 8 × 1 GbE RJ-45 ports plus 2 USB 3.0 ports and a console port. It also supports expandable storage (up to 256 GB), for logging, reporting, or caching.
Key Features
3 Gbps firewall throughput × supports high-speed branch or office Internet.
1 Gbps threat prevention × deep packet inspection, IPS, malware, SSL decryption.
1.5 Gbps application inspection × ensures application-level control and visibility.
100 IPsec VPN tunnels × secure site-to-site connectivity.
3-Year Advanced Protection + 1-Year Cloud Secure Edge × full security services + centralized cloud management.
SonicOS 7 × SD-WAN, zero-touch deployment, and easy integration with network management.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-3004 |
| Product Type | Next-Generation Firewall Appliance + 3-Year Service Bundle |
| Firewall Throughput | 3 Gbps |
| Threat Prevention Throughput | 1 Gbps |
| Application Inspection Throughput | 1.5 Gbps |
| IPS / IDS Throughput | 1.5 Gbps |
| VPN Throughput (IPSec) | 1.3 Gbps |
| Max New Connections / Sec | 9,000 |
| Max SPI Connections | 900,000 |
| Max DPI Connections | 200,000 |
| Max DPI SSL Connections | 30,000 |
| VLAN Interfaces Supported | 128 |
| IPSec VPN Tunnels | 100 |
| IPSec VPN Clients | 5 (expandable up to 200) |
| SSL VPN Licenses | 2 (up to 100) |

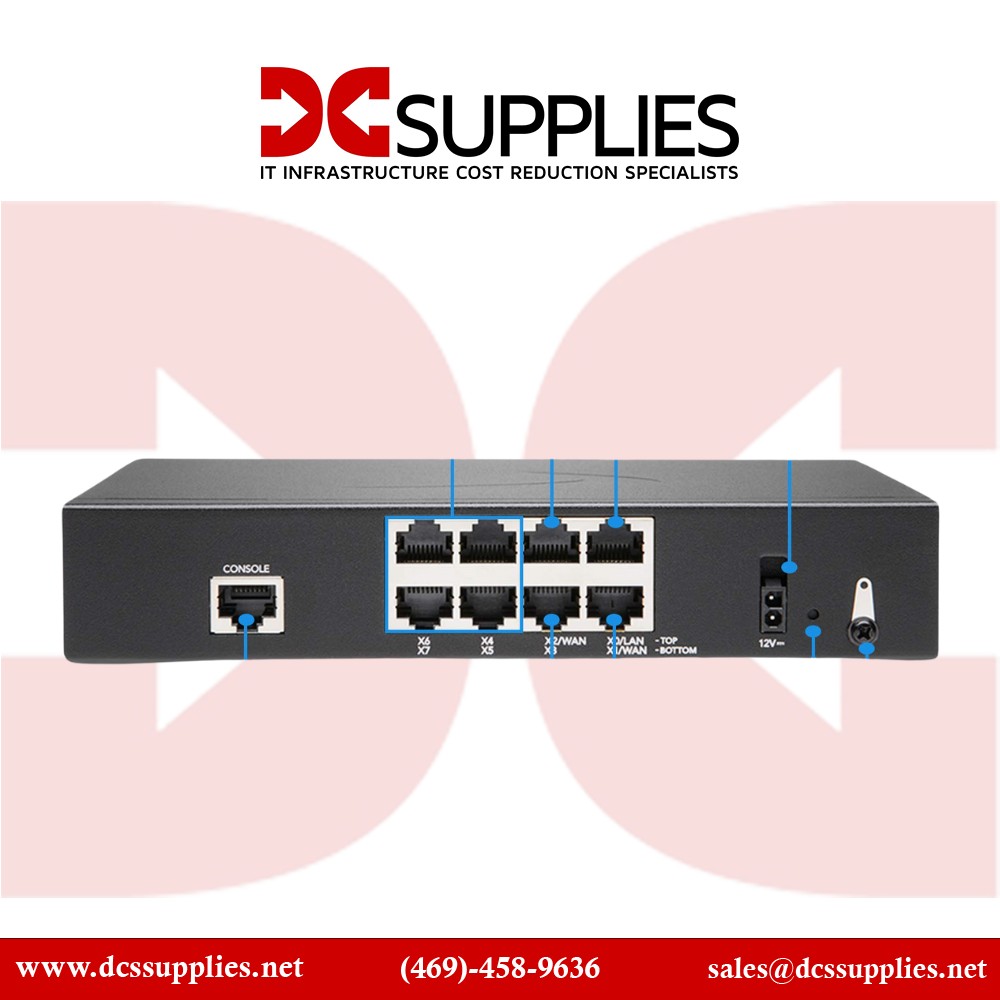

| Interfaces / Ports | 8 × 1 Gb RJ-45, 2 × USB 3.0, 1 × Console RJ-45 |
| Storage | Supports up to 256 GB for logs / cache |
| Form Factor | Desktop or 1U Rack |
| Power Requirements | 100-240 V AC, ~36 W |
| Operating Temperature | 0-40 °C |
| Weight | ~820 g |
