Detailed Specifications

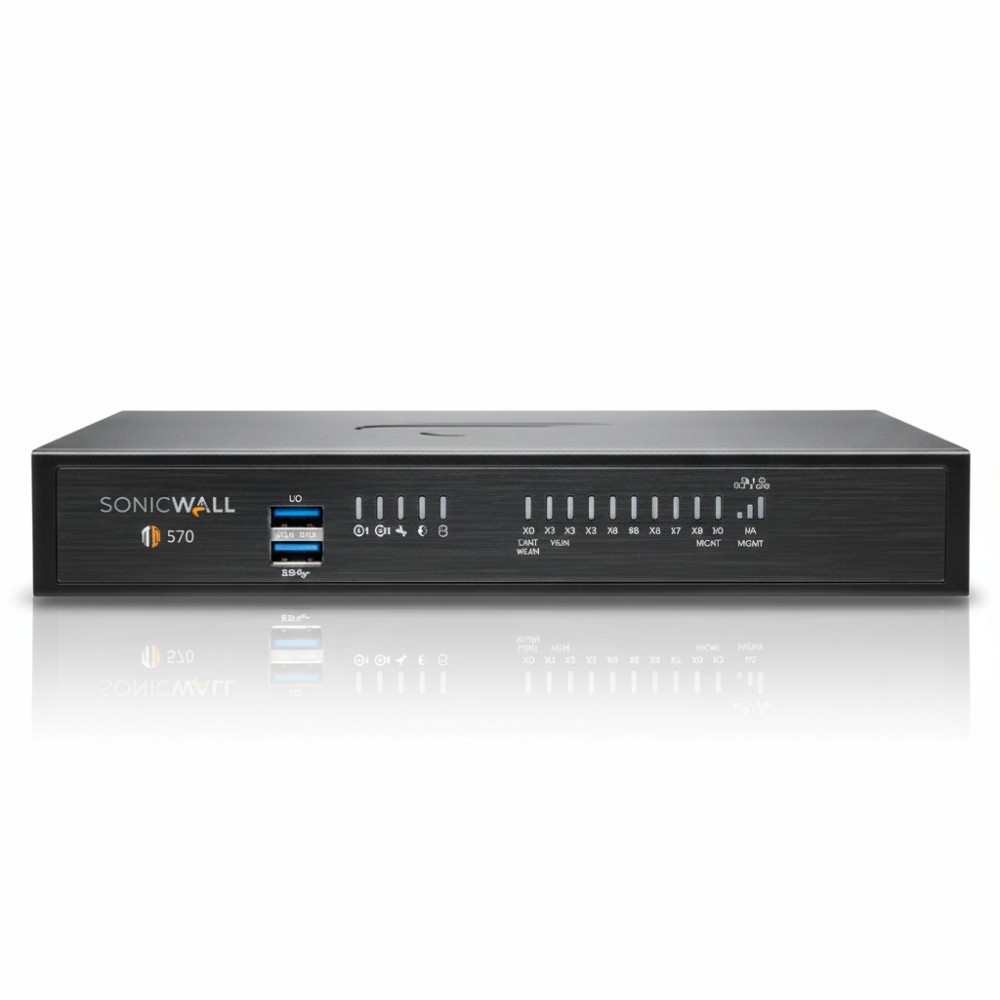

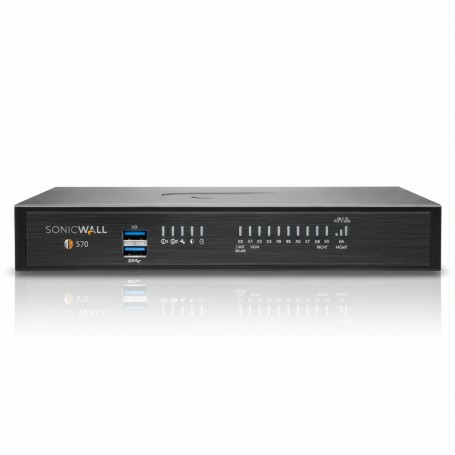

SonicWall TZ570 (02-SSC-5687) - Gen-7 5 Gigabit Firewall + 3-Year Advanced Edition Protection
Overview
The SonicWall TZ570, SKU 02-SSC-5687, is a Gen-7 next-generation firewall designed for mid-sized branch offices and distributed enterprise environments. It supports 5 Gigabit Ethernet performance, delivering high-speed inspection with its 8 × 1 Gb RJ-45 ports and 2 expansion slots for SFP+.This SKU is bundled with a 3-year Secure Upgrade Plus - Advanced Edition, which includes full NGFW security: intrusion prevention, application control, gateway anti-malware, content filtering, SSL decryption, and 24×7 support. It runs SonicOS 7, supporting SD-WAN, zero-touch deployment (via SonicExpress), VLAN segmentation, and unified management with other SonicWall devices.The TZ570 supports expandable local storage (up to ~256 GB) for centralized log retention, caching, or firmware backup, making it reliable for remote sites where on-site storage and visibility are needed. Its form factor is compact, allowing both desktop and 1U rack-mount deployments.
Key Features
5 GbE performance in a compact form factor
8×1 GbE RJ-45 + 2 SFP+ slots for flexible deployment
3-Year Advanced Protection (Secure Upgrade Plus)
SD-WAN and zero-touch provisioning with SonicOS 7
Scalable internal storage (up to ~256 GB)
High session and connection capacity for branch traffic
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-5687 |
| Product Type | Next-Generation Firewall Appliance + 3-Yr License |
| Firewall Throughput | ~4 Gbps (estimated for this bundle) |
| Threat Prevention Throughput | ~2 Gbps |
| IPSec VPN Throughput | ~1.8 Gbps |
| New Connections / Sec | ~16,000 |
| SPI Connections (Max) | ~1,250,000 |
| VLAN Interfaces | 256 |

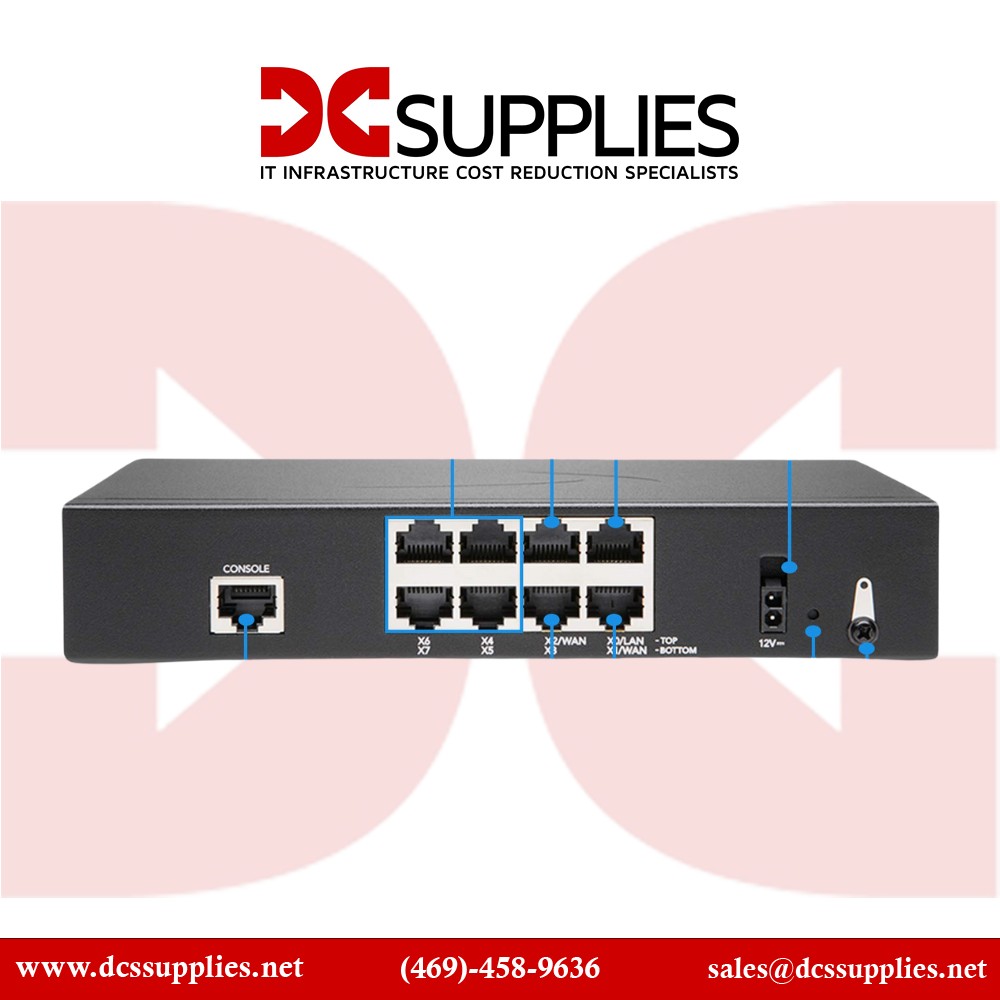

| Ports / Interfaces | 8 × 1 GbE RJ-45, 2 × SFP+, USB 3.0, Console |
| Storage | Expandable up to ~256 GB |
| Operating System | SonicOS 7.0 |
| Form Factor | Desktop or 1U Rack |
| Power Supply | External power adapter |
| Operating Temperature | 0-40 °C |
