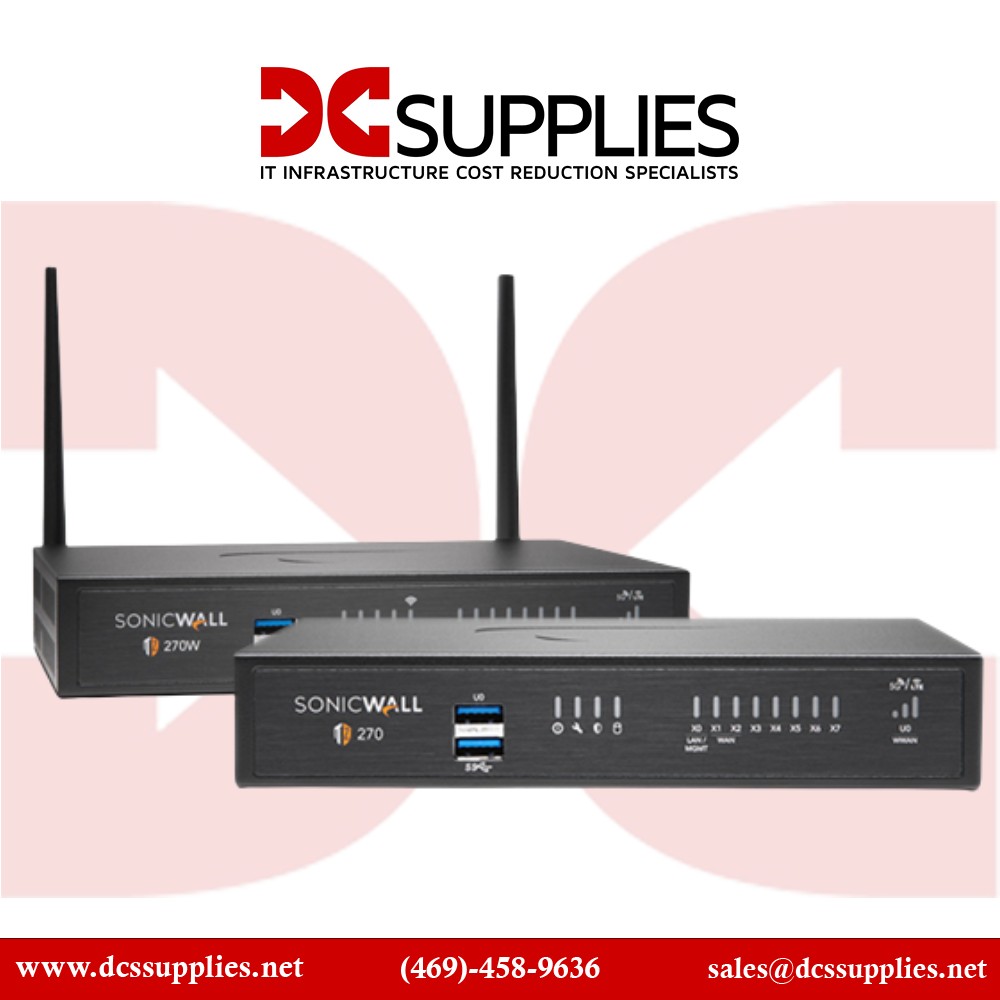

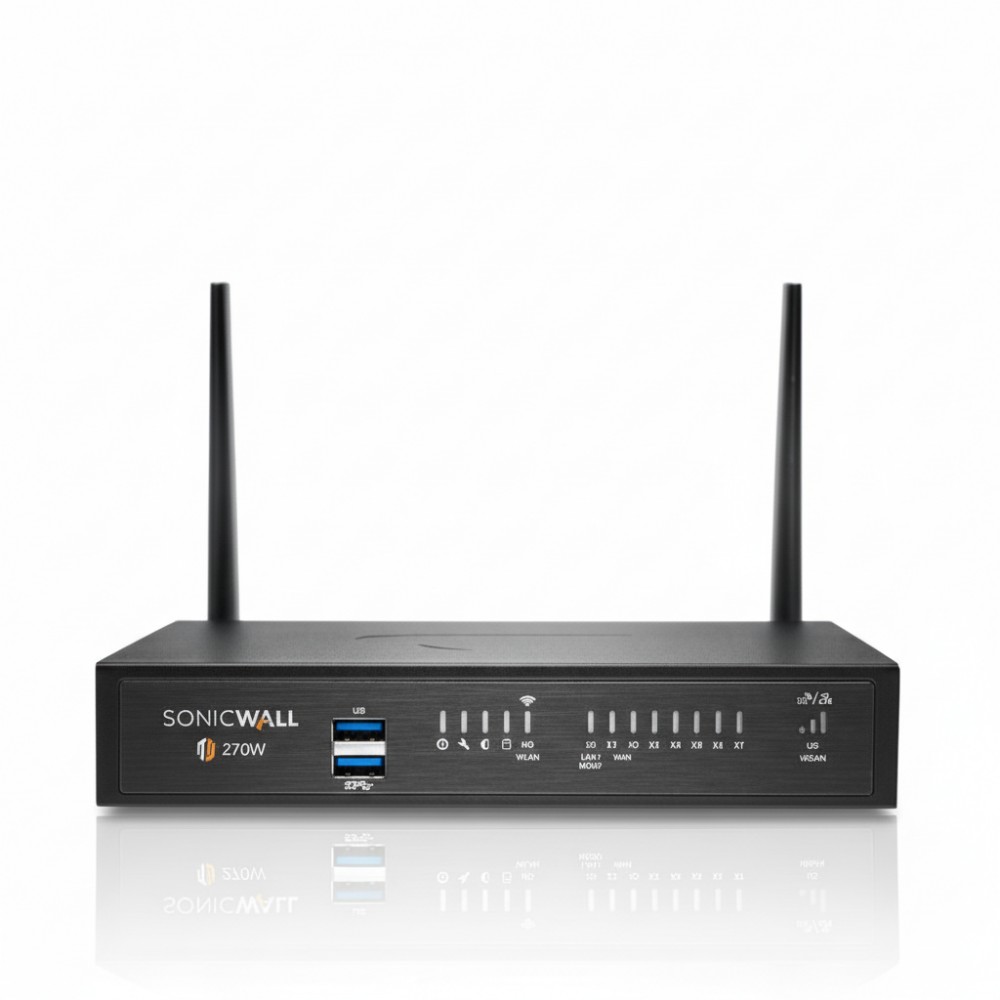

SonicWall TZ270W (02-SSC-7321) - Gen-7 2 Gbps Desktop Firewall with Wi-Fi 5 and VPN
Overview
The SonicWall TZ270W, SKU 02-SSC-7321, is a seventh-generation desktop/rack-mountable next-generation firewall designed for small offices, remote sites, and branch deployments. It combines wired and wireless networking, offering 8×1 GbE ports, two USB 3.0 ports, and integrated Wi-Fi 5 (802.11ac) for secure local connectivity.This appliance delivers 2 Gbps firewall throughput with full security features including intrusion prevention, anti-malware, content filtering, SSL/TLS inspection, and RTDMI. It supports up to 200 VPN tunnels, enabling secure site-to-site and remote access connections. SonicOS 7 provides centralized management, SD-WAN, and zero-touch deployment, making it efficient for small IT teams.The TZ270W is suitable for branch offices that need a single-box solution for wired/wireless security, supporting both internal users and secure connectivity to central enterprise resources. Its compact form factor and low power consumption (~18.9 W) make it practical for tight spaces while maintaining enterprise-grade protection.
Key Features
2 Gbps firewall throughput × handles branch office traffic efficiently.
Wi-Fi 5 integrated × provides secure wireless access without separate APs.
200 VPN tunnels × supports site-to-site and remote access.
8×1 GbE RJ-45 + USB + Console × flexible wired connectivity and management.
SonicOS 7 × zero-touch provisioning, SD-WAN, and unified security management.
Low power draw (~18.9 W) × ideal for small office environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-7321 |
| Product Type | Next-Generation Firewall with Wi-Fi |
| Firewall Throughput | 2 Gbps |
| Threat Prevention Throughput | 1 Gbps |
| Management / OS | SonicOS 7.0 |

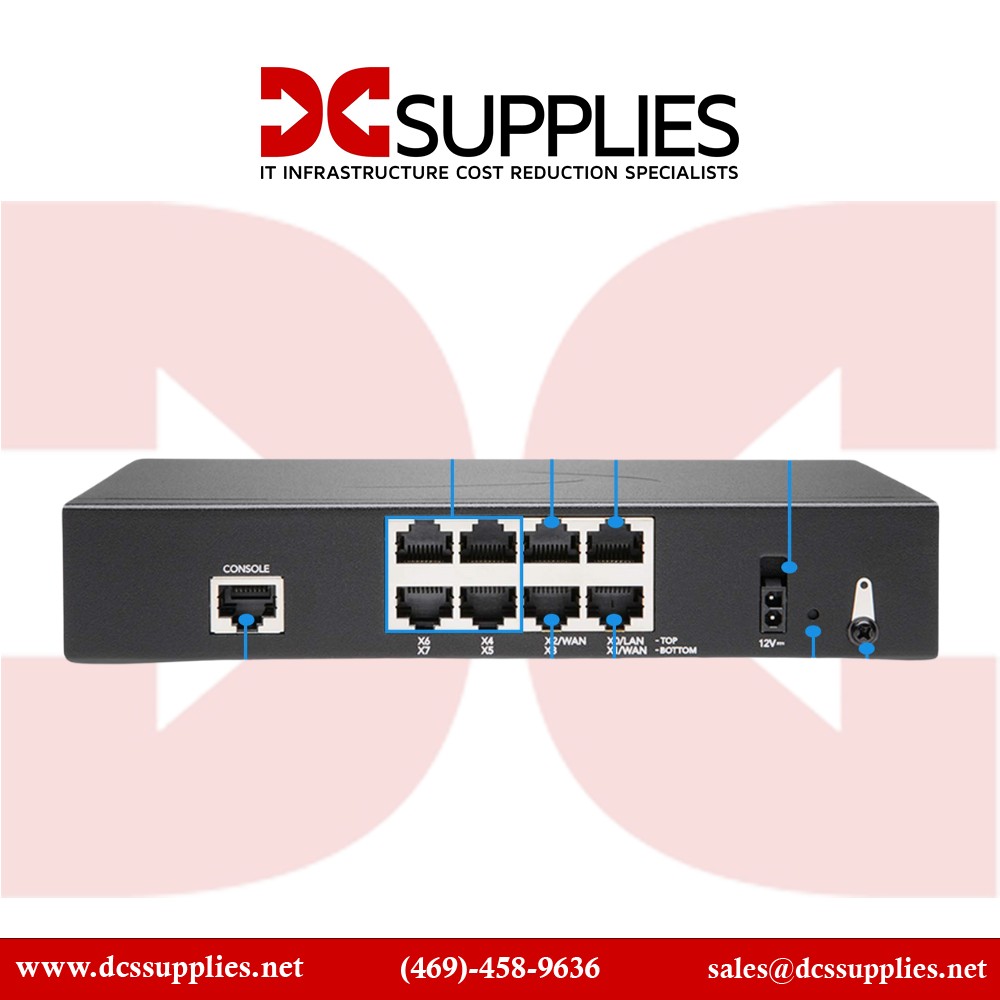

| Interfaces / Ports | 8×1 GbE RJ-45, 2×USB 3.0, 1×Console |
| VPN Support | Up to 200 IPsec tunnels |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac (Wi-Fi 5) |
| Power Consumption | ~18.9 W |
| Form Factor | Desktop or 1U rack-mountable |
| Operating Temperature | 0-40 °C |
| Encryption / Authentication | DES, 3DES, AES 128/192/256, WPA/WPA2, EAP |
| New Connections / Sec | ~6,000 |
| Maximum DPI Sessions | ~50,000 |
| SPI Connections (Max) | ~500,000 |
| Warranty / Service | 2-Year Secure Upgrade Plus - Threat Edition |
