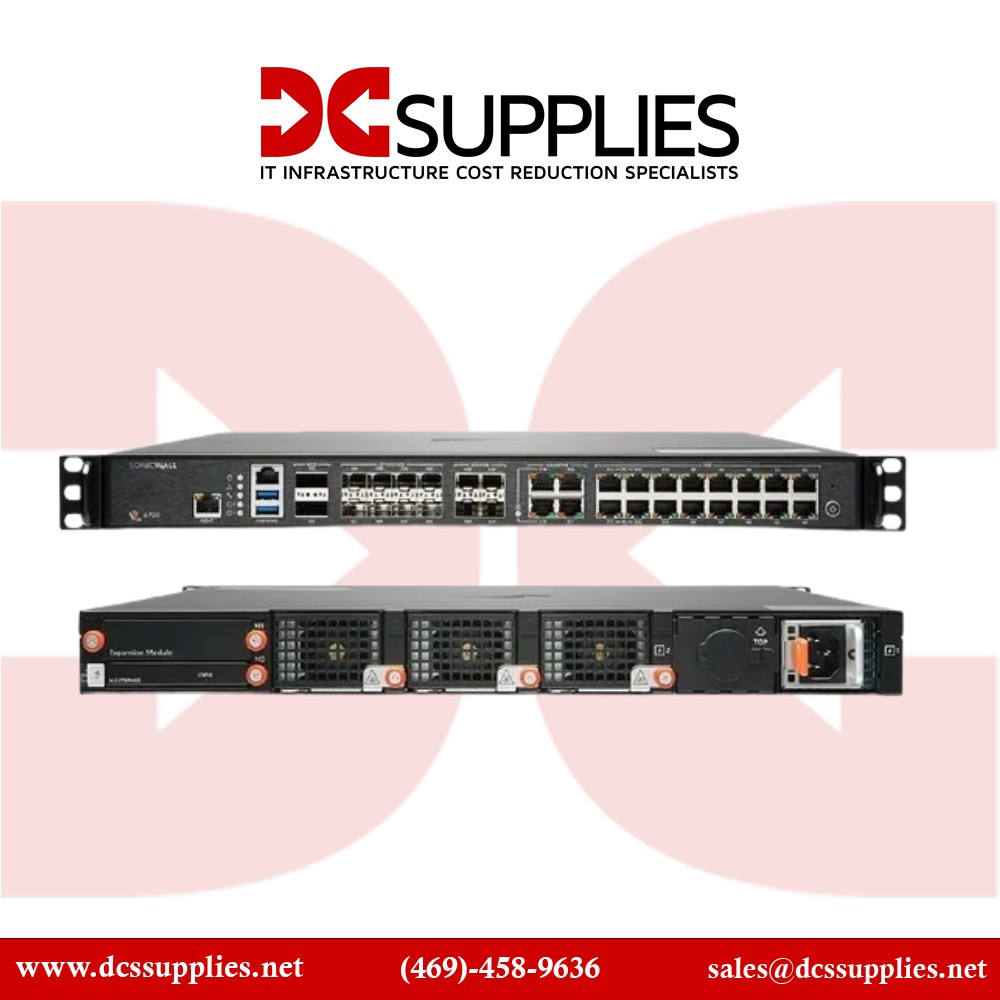

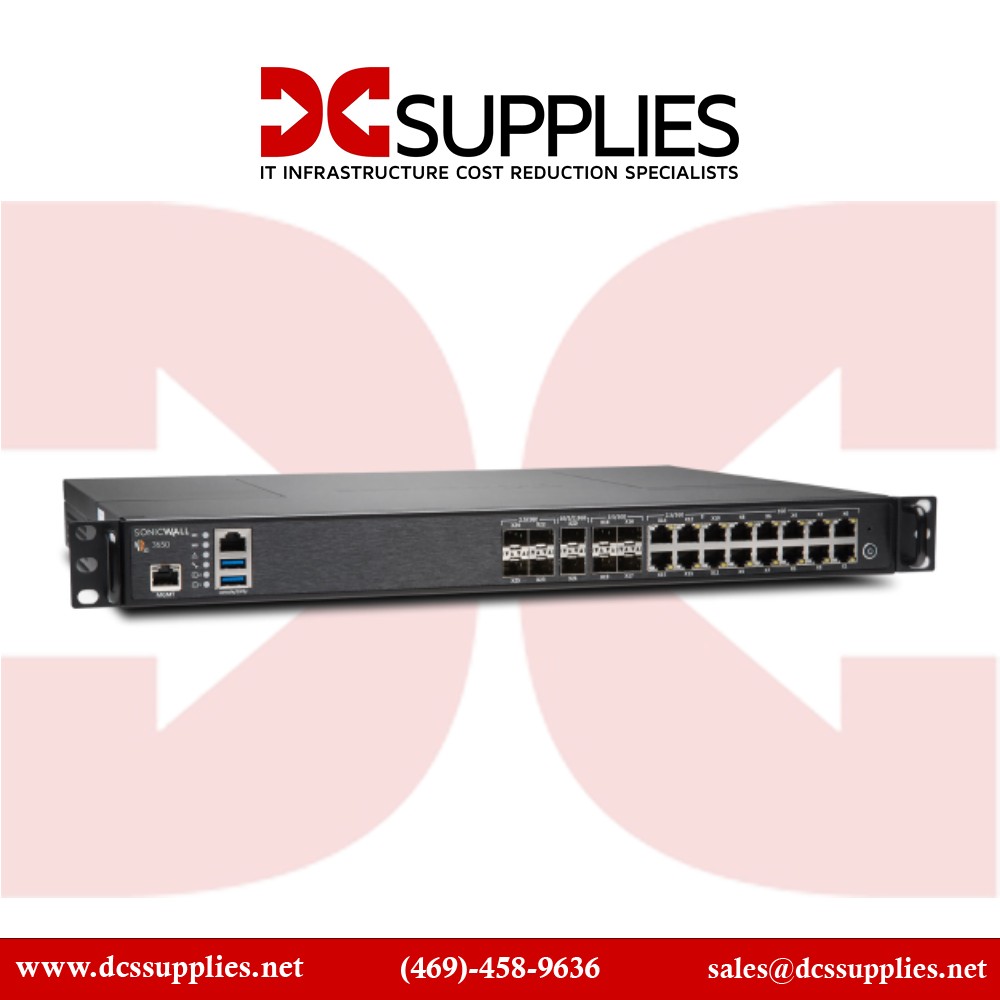

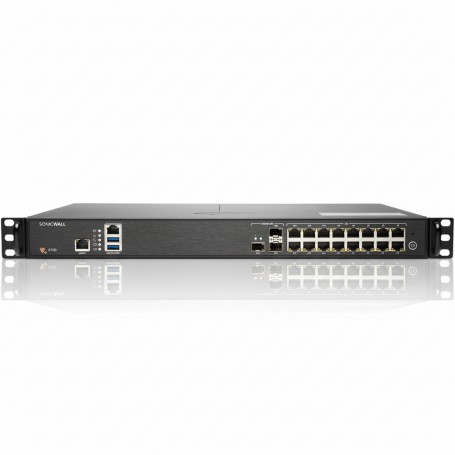

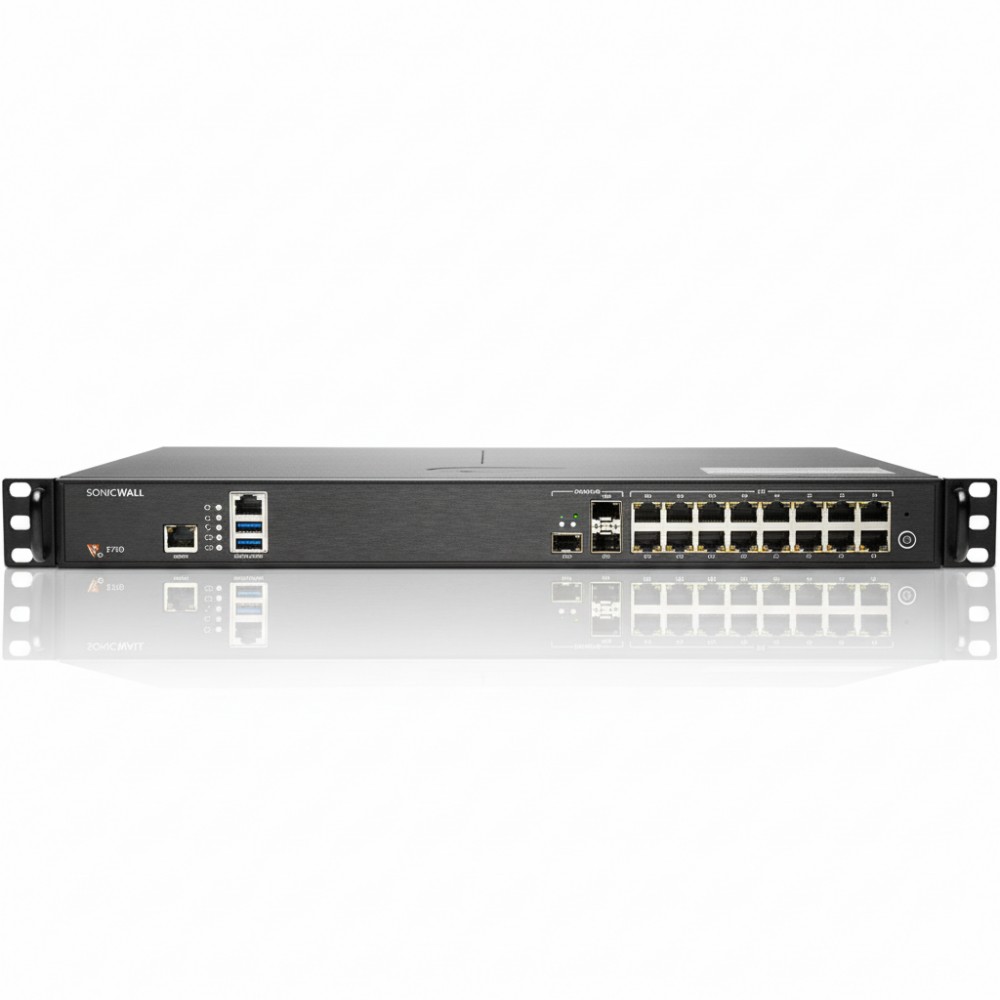

SonicWall NSa 2700 (02-SSC-7370) - Gen-7 5.2 Gbps Firewall + 3-Year Essential Protection
Overview
The SonicWall NSa 2700, part number 02-SSC-7370, is a 1U rack-mount next-generation firewall (NGFW) designed for medium to large enterprises. This specific SKU includes a 3-year Essential Protection Services suite, providing key security functions such as intrusion prevention, anti-malware, content filtering, application control, and 24/7 support.Performance-wise, the NSa 2700 delivers around 5.2 Gbps firewall throughput and 3.0 Gbps threat prevention, making it strong enough for high-throughput scenarios without turning into a bottleneck. It features 16 × 1 GbE RJ-45 ports, 3 × 10 GbE SFP+ ports, two USB 3.0, plus console and management ports. Storage comes on a 64 GB M.2 SSD, with expansion capacity up to 256 GB.The appliance runs SonicOS 7, enabling modern firewall workflows, SD-WAN, and zero-touch provisioning. With support for up to 250 site-to-site VPN tunnels and 1.5 million concurrent SPI connections, it fits well at enterprise perimeters or WAN aggregation points.
Key Features
~5.2 Gbps firewall throughput × supports high-volume traffic at the network edge.
3.0 Gbps threat prevention × IPS, anti-malware, SSL decryption to protect against modern threats.
High port density × 16×1 GbE + 3×10 GbE SFP+ for flexible connectivity.
3-Year Essential Protection × full security stack + 24/7 support for sustained protection.
SonicOS 7 × supports SD-WAN, zero-touch provisioning, and unified management.
Robust VPN support × handles high-speed IPSec VPN with strong connection capacity.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-7370 |
| Product Type | Next-Generation Firewall + Protection Bundle |
| Firewall Throughput | ~5.2 Gbps |
| Threat Prevention Throughput | ~3.0 Gbps |
| Management / OS | SonicOS 7.0 |
| Interfaces / Ports | 16×1 GbE RJ-45, 3×10 GbE SFP+, 2×USB 3.0, 1×Console, 1×Mgmt |
| Storage | 64 GB M.2 SSD (expandable to 256 GB) |
| VLAN Interfaces | Up to 256 |
| Maximum DPI Connections | ~500,000 |
| SPI Connections (Max) | ~1,500,000 |
| VPN Tunnels | Up to 250 site-to-site |
| New Connections / Sec | ~21,500 |
| Operating Temperature | 0-40 °C |
| Form Factor | 1U, Rack-mount |
