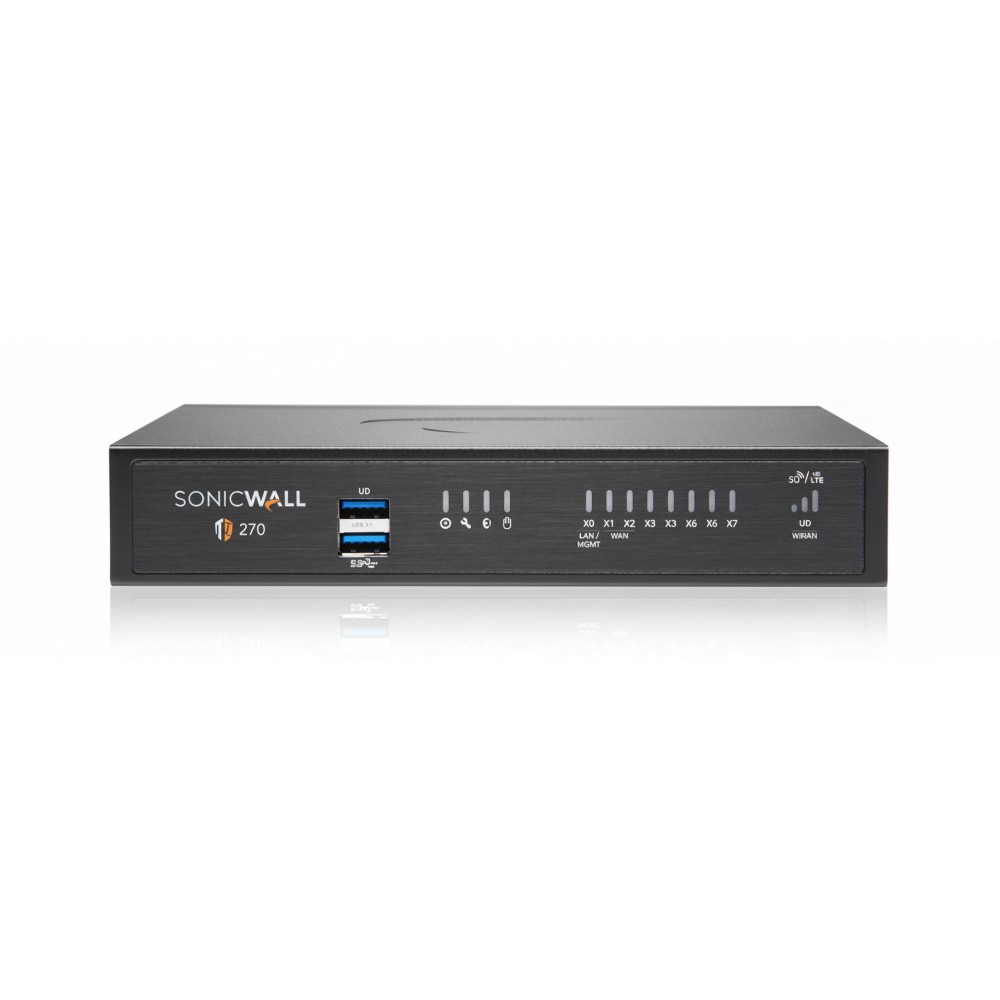

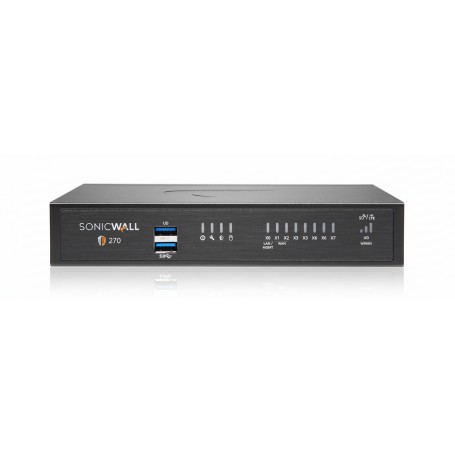

SonicWall TZ270 (02-SSC-6843) - Gen-7 2 Gbps Next-Gen Firewall with TotalSecure Advanced
Overview
The SonicWall TZ270, SKU 02-SSC-6843, is a seventh-generation desktop NGFW designed for small to mid-sized branch sites and distributed deployments. This particular SKU bundles the firewall hardware with 1 year of TotalSecure Advanced, giving you a full security stack: anti-malware, intrusion prevention, application control, content filtering, sandboxing (Capture ATP), and 24/7 support.On the hardware side, it delivers 2 Gbps of firewall throughput and 750 Mbps threat prevention, which is strong enough for typical office Internet loads and real-time inspection. It includes 8× 1 GbE ports, 2× USB 3.0, and a console port, making it flexible for LAN, WAN, and management.Running SonicOS 7.0, the unit supports SD-WAN, zero-touch provisioning, and centralized management via Network Security Manager. Its compact desktop design and optional SSD storage (up to 256 GB) make it easy to deploy in tight branch closets, with room for logs, reports, or caching.
Key Features
2 Gbps firewall throughput - handles high-traffic site perimeter.
750 Mbps threat prevention - includes IPS, anti-malware, content filtering, and deep inspection.
1-year TotalSecure Advanced - full SonicWall security services + 24×7 support.
High port count - 8×1 GbE RJ-45 + USB + console for flexible deployment.
Zero-touch deployment & SD-WAN ready - fast rollout for branch locations.
Expandable storage up to 256 GB - ideal for logging, reporting or caching.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-6843 |
| Product Type | Next-Generation Firewall Appliance + Security Bundle |
| Firewall Throughput | ~2 Gbps |
| Threat Prevention Throughput | ~750 Mbps |
| Management | SonicOS 7.0 (web GUI, CLI, SSH, NSM) |
| Interfaces / Ports | 8×1 GbE RJ-45, 2×USB 3.0, 1×Console |
| VPN Throughput (IPSec) | ~750 Mbps |
| Maximum Session Capacity | SPI: ~750,000; DPI: ~150,000 |
| VPN Tunnels (Site-to-Site) | Up to 50 |
| Operating Temperature | 0 °C - 40 °C |
| Power Requirements | 100-240 V AC, external adapter, ~16.84 W consumption |
| Dimensions & Weight | 190 × 135 × 35 mm, ~0.82 kg |
| Warranty / Support | Includes 1-year TotalSecure Advanced edition |
