Detailed Specifications

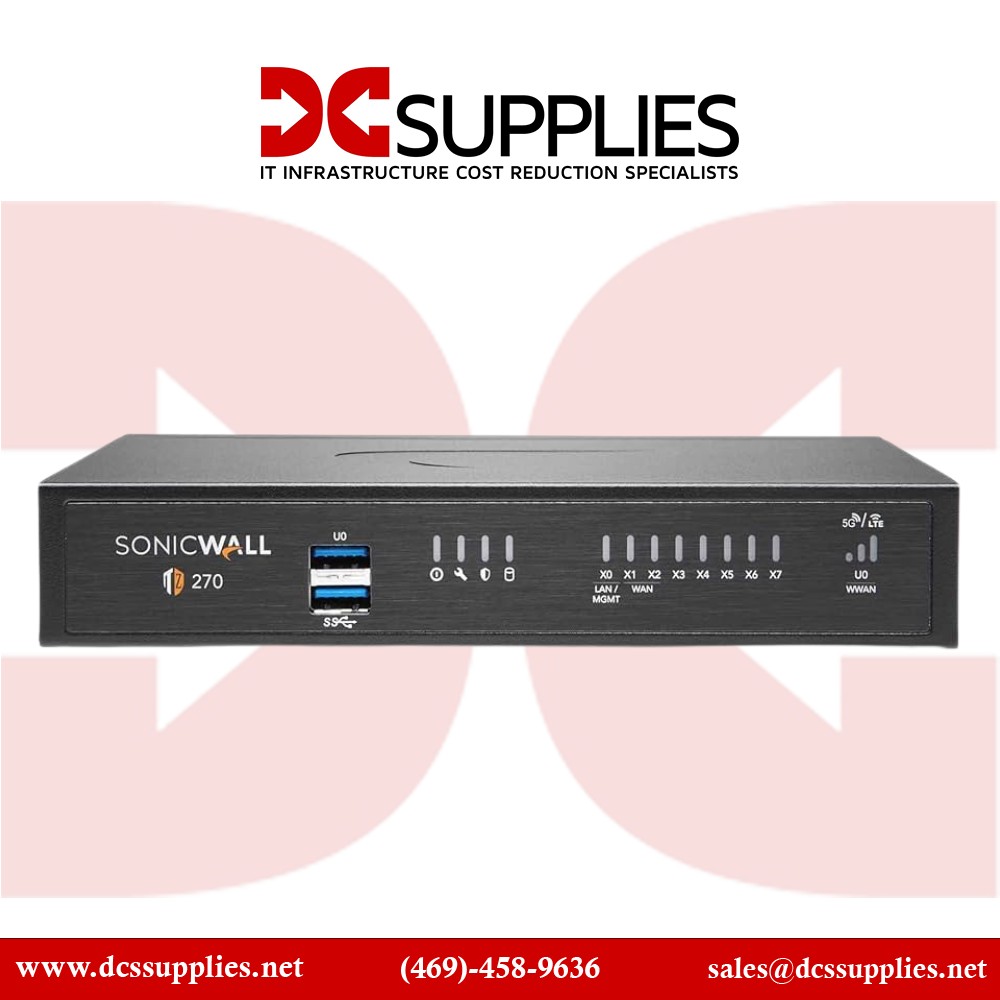

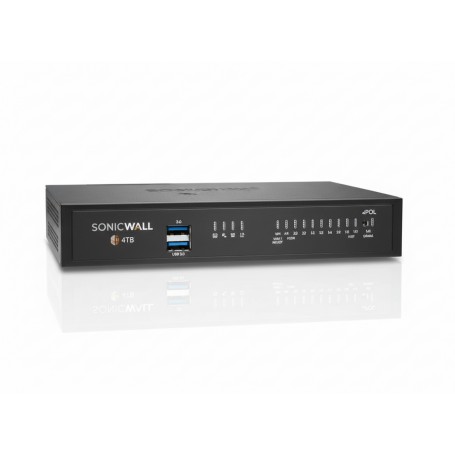

SonicWall TZ270 (03-SSC-2997) - Gen-7 2 Gbps Next-Gen Firewall
Overview
This is the SonicWall TZ270, part number 03-SSC-2997 × a Gen-7 next-generation firewall built for small to medium branches or distributed offices. It delivers enterprise-grade threat prevention without becoming a heavy, rack-only appliance. With 2 Gbps firewall throughput and integrated threat inspection, it's suited to sites that demand solid security but don't have a full data-center.It supports real-time deep memory inspection (RTDMI) and TLS/SSL decryption, giving you strong protection against modern, encrypted threats. The unit has eight 1 GbE RJ-45 ports and supports up to 50 VPN tunnels, making it practical for remote branch connectivity and site-to-site security.You can manage it via SonicOS 7.0, using CLI, web GUI, or centralized management with Network Security Manager. The compact, desktop form factor makes it easy to deploy in tight branch offices, and it's ready for SD-WAN and zero-touch deployment.
Key Features
Delivers 2 Gbps firewall throughput in a compact desktop footprint for branch-level deployment
750 Mbps threat prevention throughput, including deep inspection and SSL/TLS decryption
8×1 GbE ports for LAN/WAN connectivity, plus dual USB 3.0 and console for flexible deployment
50 VPN tunnels support enables secure remote site or remote user connectivity
Real-time Deep Memory Inspection (RTDMI') to detect advanced malware and zero-day threats
SD-WAN ready with zero-touch deployment for distributed branch environments
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-2997 |
| Product Type | Network Security / Firewall Appliance |
| Firewall Throughput | 2 Gbps |
| Threat Prevention Throughput | 750 Mbps |
| IPS Throughput | ~1 Gbps |
| Management | SonicOS 7.0 × Web GUI, CLI, SSH, REST APIs, Network Security Manager |
| Power Requirement | 100-240 VAC, 50-60 Hz, ~3 A |

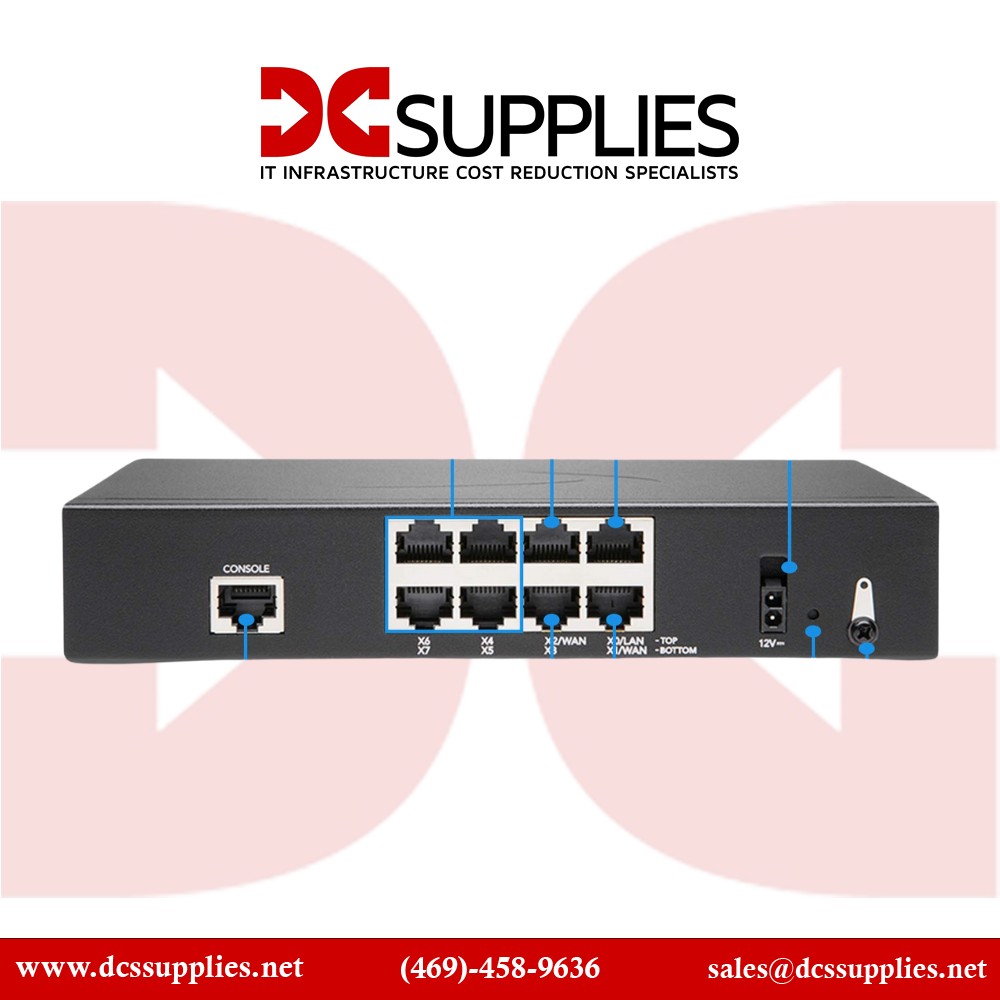

| Ports / Interfaces | 8×1 GbE RJ-45, 2×USB 3.0, 1×Console RJ-45 |
| VPN Tunnels | Up to 50 site-to-site + 200 IPSec client (max) per different sources |
| New Connections / Sec | 6,000 concurrent new connections per second |
| Operating Temperature | 0-40 °C |
| Dimensions & Weight | Approx. 190 × 135 × 35 mm, ~0.82 kg |
| Warranty | 1-year limited (varies by seller) |
