Detailed Specifications

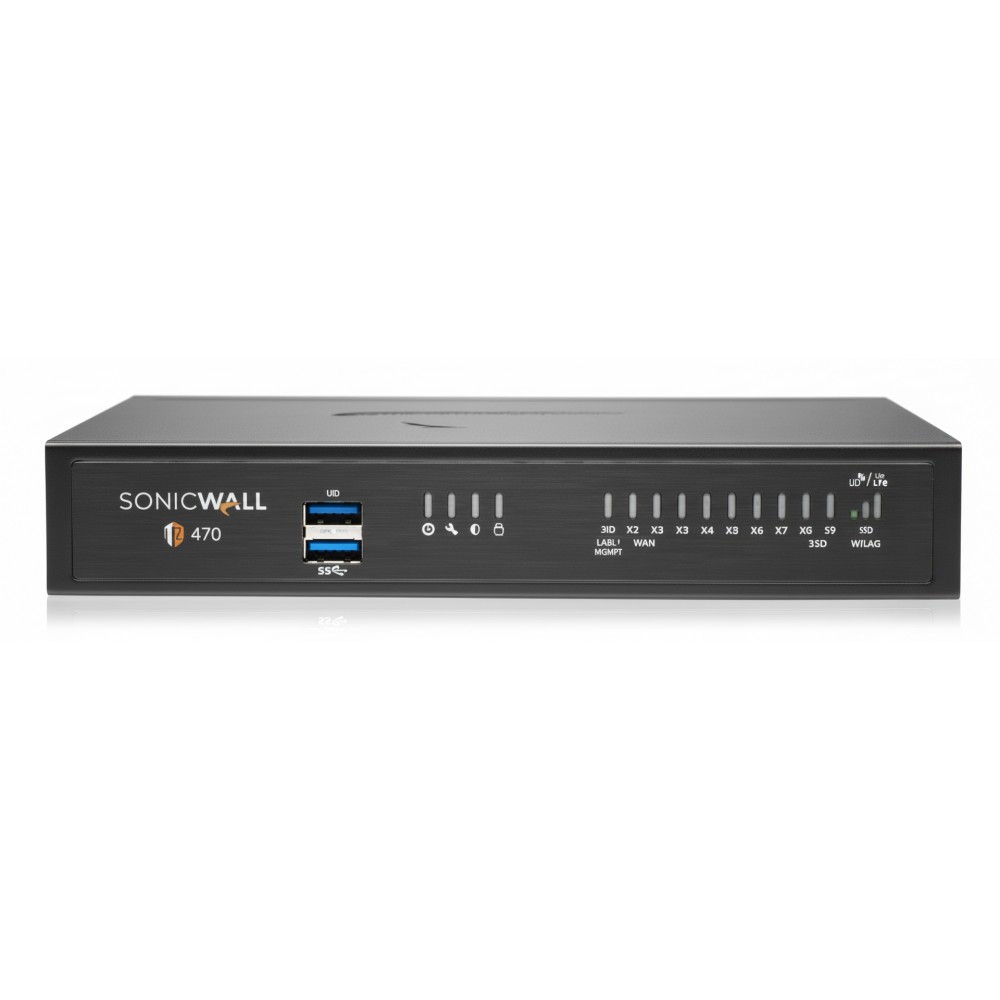

SonicWall 02-SSC-6792 - TZ470 Network Security / Firewall Appliance
Overview
The SonicWall 02-SSC-6792 refers to the TZ470 next-generation firewall appliance bundled with a 1-year TotalSecure Essential Edition license. It's designed for small to mid-sized offices, branch locations, or SD-Branch environments that need strong security, good performance, and compact hardware. With 8 ports and 2.5 GbE capabilities, it handles modern network loads and secures up to dozens of users/devices. The TotalSecure Essential suite includes real-time threat protection, deep memory inspection (RTDMI), anti-malware, content filtering, and more × making it ideal for distributed enterprises or standalone branch sites. You can also expand its logging or caching via optional storage up to 256 GB.
Key Features
8-port high-speed connectivity: Provides 8 RJ-45 ports with 2.5 GbE uplink options for fast internal and edge data flow.
Strong threat protection: Includes sandboxing via capture ATP with real-time deep memory inspection (RTDMI) to spot zero-day threats.
Scalable storage: Supports up to 256 GB of storage for detailed logging, reporting, and firmware backup.
Integrated SD-WAN: Comes with SD-Branch readiness and secure SD-WAN for branch office networking.
VPN & TLS performance: Delivers solid IPSec VPN and TLS traffic support, useful for remote office and secure site-to-site connections.
Compact form factor: Desktop or rack-mountable hardware makes deployment flexible for small closets or distributed setups.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-6792 |
| Product Type | Network Security / Firewall Appliance |

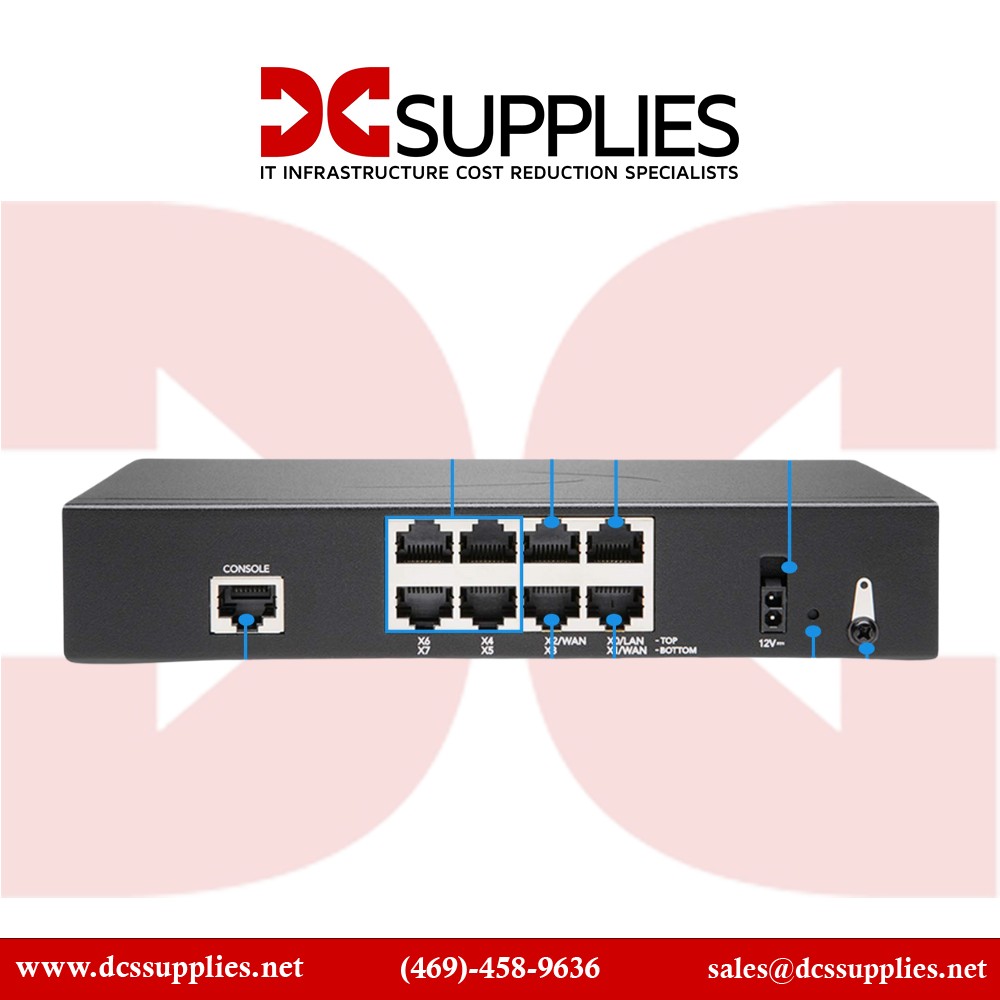

| Ports / Interfaces | 8 × RJ-45 (1 Gb/2.5 Gb) + 2 × 2.5 GbE SFP (expansion) |
| Firewall Throughput | ~3.5 Gbps |
| Threat Protection Throughput | ~1.5 Gbps |
| Encryption / VPN | DES, 3DES, MD5, SHA-1, AES-128/192t |
| Concurrent Sessions | 1,000,000 (SPI), up to 250,000 (DPI) |
| New Sessions Per Second | ~12,000 |
| Storage | Expandable up to 256 GB |
| Management | Web UI, CLI, REST API, SSH, Network Security Manager |
| Power / Form Factor | Desktop / rack-mountable; 60 Hz |
