Detailed Specifications

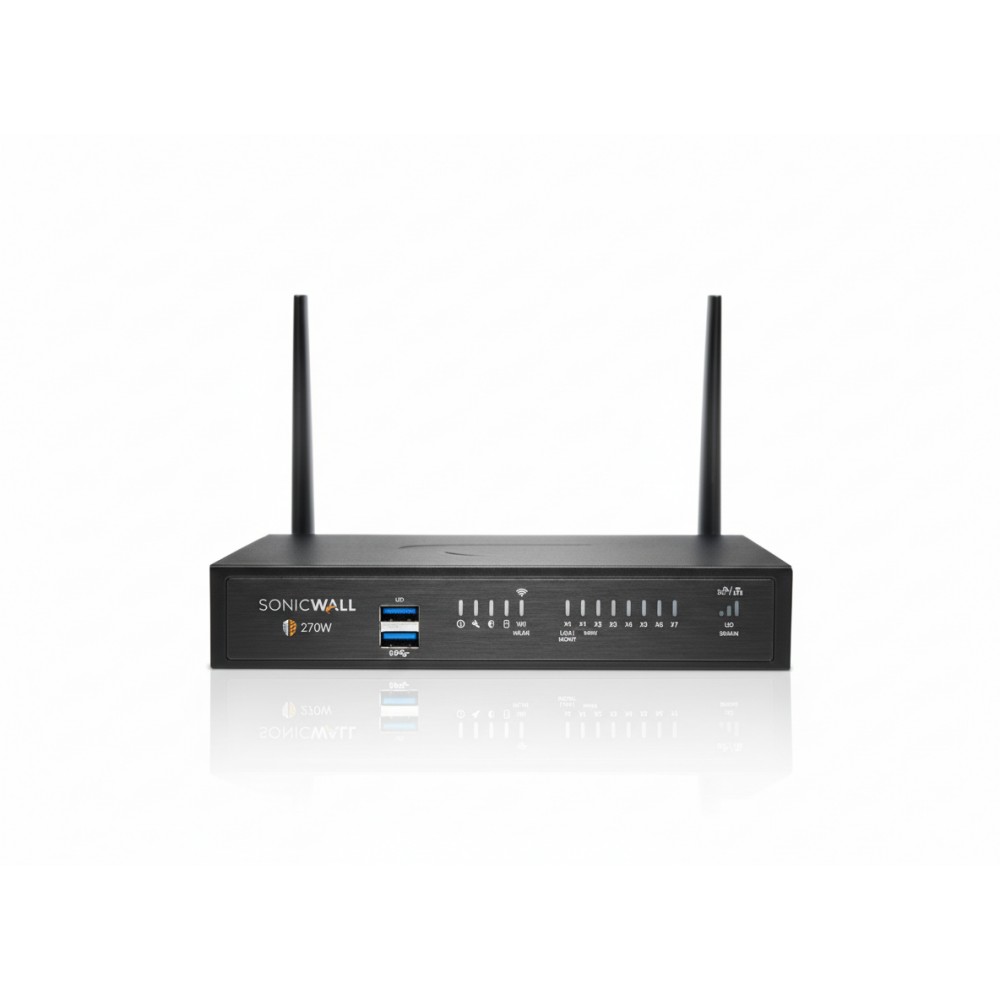

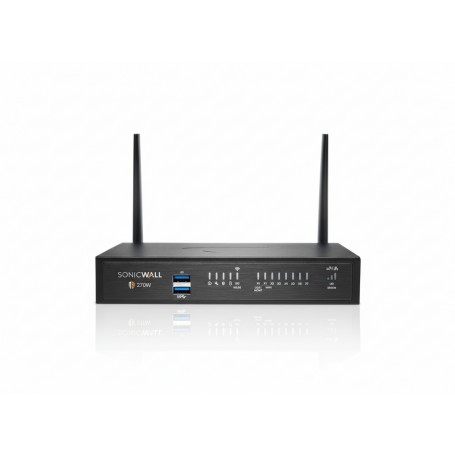

SonicWall TZ270W - 03-SSC-3002 (Gen-7 Wireless Firewall + 3-Yr Advanced)
Overview
The SonicWall 03-SSC-3002 is the Gen-7 TZ270W firewall bundled with a 3-year Advanced Protection license (APSS + Cloud Secure Edge). This model is optimized for small and lean branch sites where both wired security and wireless access are required. It offers 8 Gigabit RJ-45 ports plus built-in dual-band Wi-Fi (802.11 a/b/g/n/ac), combining next-gen threat protection (IPS, RTDMI, content filtering) with flexible connectivity options. At about 2 Gb/s firewall throughput, it's well-suited for SMB or branch deployments that need both secure Internet access and Wi-Fi in a compact form.
Key Features
8 × 1 Gb RJ-45 ports × for LAN/WAN segmentation.
Integrated Wi-Fi (802.11ac) × dual-band wireless for branch coverage without separate APs
2 Gb/s firewall throughput × Good performance for a secure branch gateway.
3-year Advanced Protection × Includes IPS, RTDMI sandboxing, application control, content filtering, and more
Gen-7 SonicOS × Modern OS with SD-WAN, zero-touch deployment, and deep packet inspection.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-3002 |
| Model | TZ270W (Gen 7) |
| Form Factor | Desktop / Rack-mountable |
| Ports | 8 × Gigabit RJ-45, USB, Console |
| Wireless | Dual-band 802.11 a/b/g/n/ac |
| Firewall Throughput | ~2 Gb/s |
| Encryption / VPN | Supports DES, 3DES, MD5, SHA-1, AES-128/192/256; IPSec VPN |
| Connections / New Sessions | ~6,000 new connections per second |
| Power Consumption | ~18.9 W |
| IPS Throughput | ~128 MB/s |
| VPN Tunnels | Up to 200 IPSec VPN connections |
