Overview

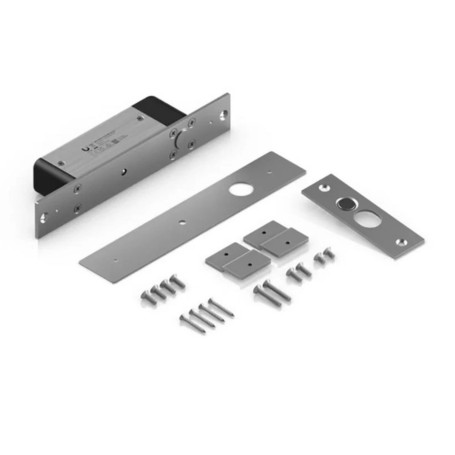

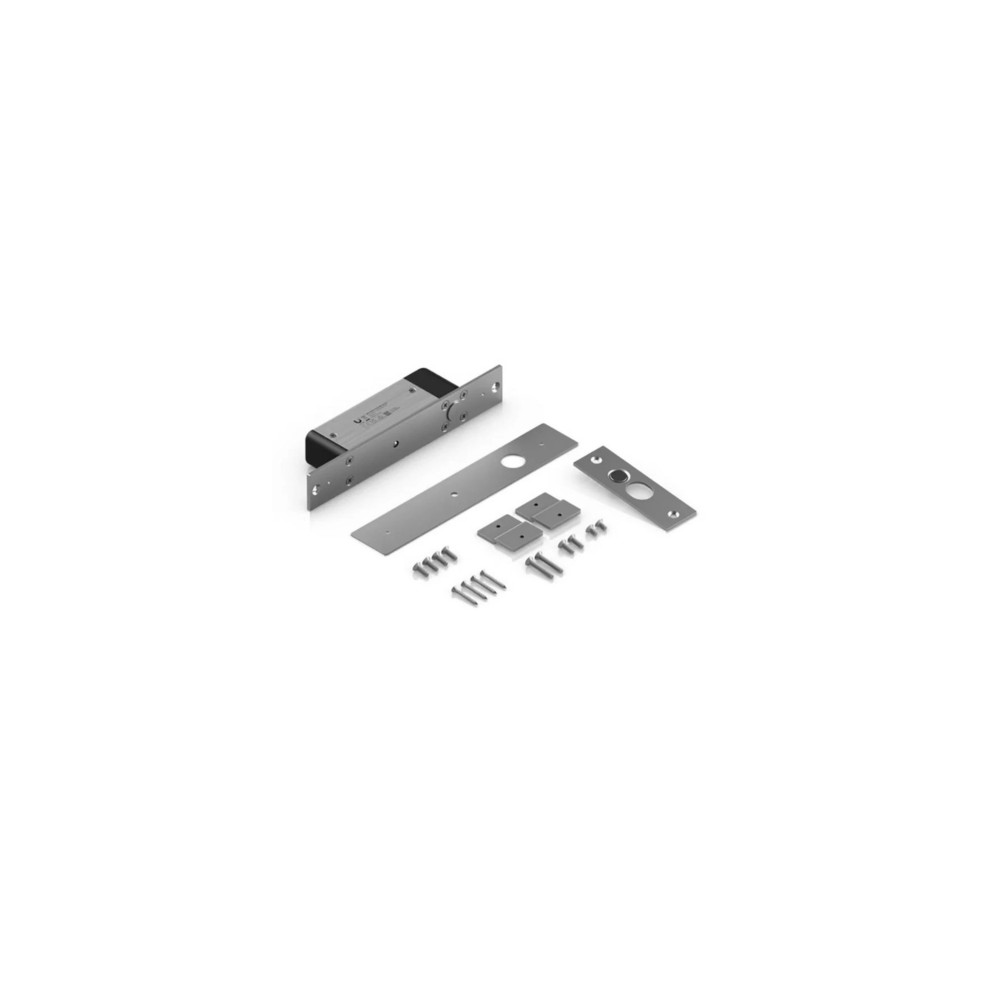

The Ubiquiti UACC-Lock-Bolt-Secure is a fail-secure electric drop bolt lock designed for UniFi Access door control installations. It uses 12V DC power and is intended for single wooden or metal doors with door-frame recess mounting. The lock includes an embedded door position sensor (DPS) for monitoring door status.
Operation
The fail-secure design keeps the bolt locked when power is removed and releases the lock when electrical power is applied. Ubiquiti specifies NO/COM/NC relay wiring for connection to a UniFi Access Hub. The lock supports a maximum current draw of 900mA at 12V DC ±10%.
Door Monitoring
An embedded door position sensor provides a dry-contact output for door-status monitoring. The DPS reports an open door when DPS/+ and DPS/- are open and a closed door when those contacts are shorted. The contact is rated for up to 30V DC and 0.5A.
Mounting and Construction
The lock is designed for door-frame recess mounting. The lock body measures 132 x 30 x 42 mm, while the supplied door frame plate measures 82 x 32 x 3 mm and the door plate measures 204 x 33 x 3 mm. The lock body and plates use aluminum alloy construction.
Key Features
- Fail-secure electric drop bolt operation
- 12V DC ±10% operating voltage
- Embedded door position sensor for door-status monitoring
- NO/COM/NC relay wiring for UniFi Access Hub installations
- Red and green LED status indication
Applications
The UACC-Lock-Bolt-Secure is intended for controlled single-door access installations where the locking mechanism must remain locked during a power loss. It can be used with UniFi Access Hubs for electronically controlled entry on compatible wooden or metal doors.
DC Supplies Product Note
Because this is a fail-secure lock, the locking behavior differs from Ubiquiti's fail-safe bolt model: the UACC-Lock-Bolt-Secure remains locked without power and requires power to release.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-Lock-Bolt-Secure |
| Product Type | Fail-Secure Bolt Lock |
| Lock Type | Fail secure |
| Lock Mechanism | Electric drop bolt |
| Supported Door Type | Single door, wooden or metal |
| Operating Voltage | 12V DC ±10% |
| Maximum Current | 900mA |
| Door Position Sensor | Embedded |
| Door Status Contact Type | Dry contact |
| Door Status Contact Rating | Maximum 30V DC, 0.5A |
| Wiring | 12V/NO, 12V/COM, 12V/NC, DPS/-, DPS/+ |
| Mounting | Door frame recess mount |
| Lock Body Dimensions | 132 x 30 x 42 mm (5.2 x 1.2 x 1.7 in) |
| Door Frame Plate Dimensions | 82 x 32 x 3 mm (3.2 x 1.3 x 0.1 in) |
| Door Plate Dimensions | 204 x 33 x 3 mm (8 x 1.3 x 0.1 in) |
| Lock Body Weight | 350 g (12.3 oz) |
| Door Frame Plate Weight | 22 g (0.7 oz) |
| Door Plate Weight | 46 g (1.6 oz) |
| Material | Aluminum alloy |
| LED Indicator | Red: locked; Green: unlocked and power indicator |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
Frequently Asked Questions
What type of lock is the UACC-Lock-Bolt-Secure?
It is a fail-secure electric drop bolt lock. It remains locked when power is removed and unlocks when electrical power is applied.
What voltage does the lock require?
The UACC-Lock-Bolt-Secure is specified for 12V DC ±10% and has a maximum current requirement of 900mA.
Does the lock include door-status monitoring?
Yes. The lock has an embedded door position sensor with a dry-contact output for monitoring whether the door is open or closed.
Which doors are supported?
Ubiquiti specifies support for single wooden or metal doors.
How is the lock mounted?
The UACC-Lock-Bolt-Secure uses a door-frame recess mounting arrangement with a lock body, door frame plate, and door plate.
Can it connect to a UniFi Access Hub?
Yes. Ubiquiti specifies NO/COM/NC relay wiring for the fail-secure bolt lock when connected to a UniFi Access Hub.
