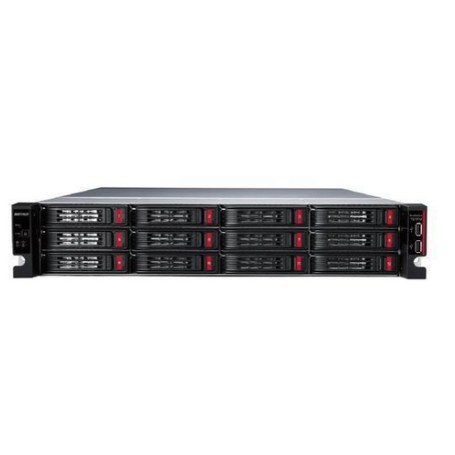

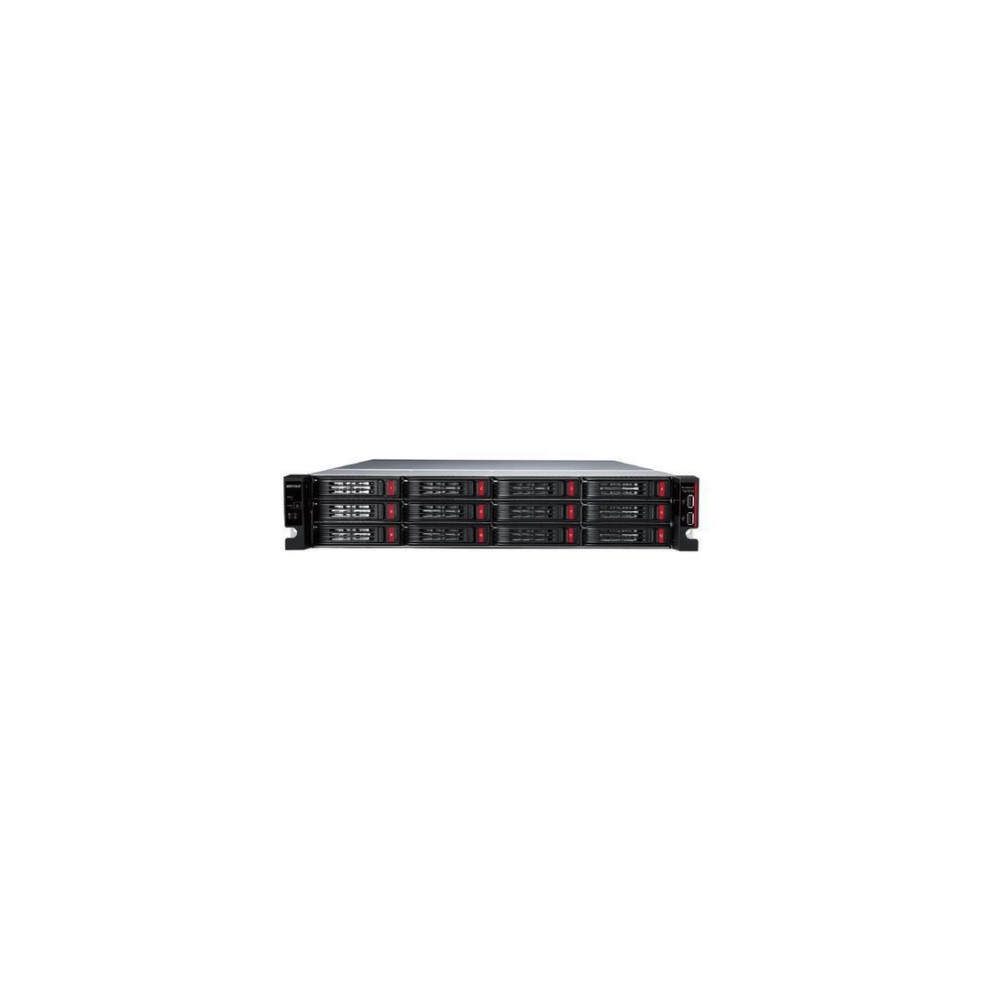

BUFFALO TS71210RH8004 – TeraStation 71210RH 80TB 12-Bay Rackmount NAS
Overview
The BUFFALO TS71210RH8004 is an 80TB enterprise-class rackmount NAS in the TeraStation 71210RH series. This partially populated 12-bay system includes four 20TB enterprise-grade CMR hard drives, leaving eight drive bays available for future storage expansion.
The platform is designed for data-intensive business environments requiring high-capacity network storage, centralized file services, backup infrastructure, virtualization workloads, and scalable storage expansion.
Technical Information
The TS71210RH8004 uses an Intel Xeon D-1713NT 2.2GHz quad-core processor with Turbo Boost up to 3.5GHz and 16GB of DDR4 ECC memory. Memory can be expanded to 64GB using compatible 16GB modules.
The NAS uses the Btrfs file system and supports snapshots for file and volume recovery. It provides four native 10GbE RJ45 network ports and two PCIe Gen 4 x8 expansion slots for additional networking and SSD caching capabilities.
The four installed 20TB enterprise-grade CMR drives provide 80TB of raw installed capacity. The 12-bay chassis supports RAID 0, 1, 5, 6, 10, and JBOD configurations.
Compatibility
The TS71210RH8004 supports Windows 11, Windows 10, Windows 8.1, Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012, Windows Server 2012 R2, and macOS 10.13 or later.
Network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS. The four native RJ45 interfaces support 10GbE, 1000Mbps, 100Mbps, and 10Mbps network speeds.
Two PCIe Gen 4 x8 slots support compatible expansion options, including SSD caching and additional high-speed SFP+/QSFP networking. Compatible Buffalo SSD and memory expansion options are available separately.
Key Features
- 80TB installed capacity with four 20TB enterprise-grade CMR HDDs
- 12-bay rackmount chassis with eight available drive bays
- Intel Xeon D-1713NT 2.2GHz quad-core processor and 16GB DDR4 ECC memory
- Four native 10GbE RJ45 ports and two PCIe Gen 4 x8 expansion slots
- Btrfs file system with snapshots and support for RAID 0/1/5/6/10/JBOD
Applications
The TS71210RH8004 is suited to enterprise file storage, centralized business data, backup repositories, virtualization environments, production data storage, large-scale storage deployments, and high-bandwidth network workloads.
DC Supplies Product Note
The TS71210RH8004 is a partially populated 12-bay configuration with four 20TB drives installed and eight bays open. This provides an upgrade path for increasing storage capacity without replacing the existing chassis.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS71210RH8004 |
| Product Type | Enterprise Rackmount NAS |
| Series | TeraStation 71210RH |
| Form Factor | Rackmount |
| Drive Bays | 12 |
| Installed Drives | 4 × 20TB |
| Installed Capacity | 80TB |
| Drive Type | Enterprise-Grade CMR HDD |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| Processor | Intel Xeon D-1713NT 2.2GHz Quad-Core |
| Turbo Boost | Up to 3.5GHz |
| Memory | 16GB DDR4 ECC |
| Maximum Memory | 64GB |
| File System | Btrfs |
| Network Ports | 4 × 10GBASE-T RJ45 |
| Network Speeds | 10Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| USB Ports | 2 × USB 3.2 Gen 1, 2 × USB 2.0 |
| PCIe Expansion | 2 × PCIe Gen 4 x8 |
| SSD Caching | Supported |
| Power Consumption | 500W maximum; 251W data transfer; 238W idle |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Dimensions | 29.0 × 18.9 × 3.5 in |
| Weight | 41.7 lb |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| Warranty | 5 years with product registration, including hard drives |
FAQs
How much storage does the TS71210RH8004 provide?
The TS71210RH8004 includes four 20TB enterprise-grade CMR hard drives for 80TB of installed raw capacity.
How many drive bays are available?
The system has 12 drive bays. Four are populated with 20TB drives, leaving eight bays available for additional compatible drives.
Which processor and memory are installed?
The NAS uses an Intel Xeon D-1713NT 2.2GHz quad-core processor with Turbo Boost up to 3.5GHz and 16GB of DDR4 ECC memory. Memory is expandable to 64GB.
What network connectivity is provided?
The TS71210RH8004 has four native 10GBASE-T RJ45 ports supporting 10Gbps, 1000Mbps, 100Mbps, and 10Mbps connections.
Does the TS71210RH8004 support SSD caching?
Yes. SSD caching is supported through the system's PCIe Gen 4 x8 expansion capability using compatible Buffalo SSD options.
Which RAID levels are supported?
The system supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
