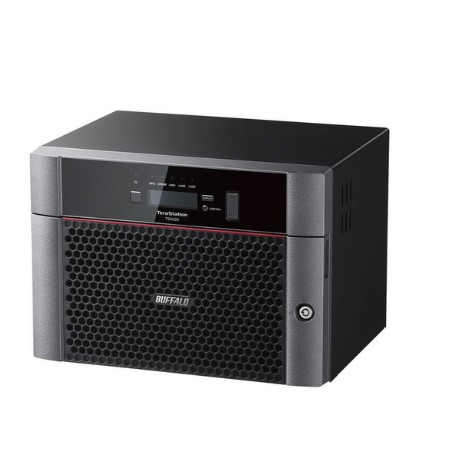

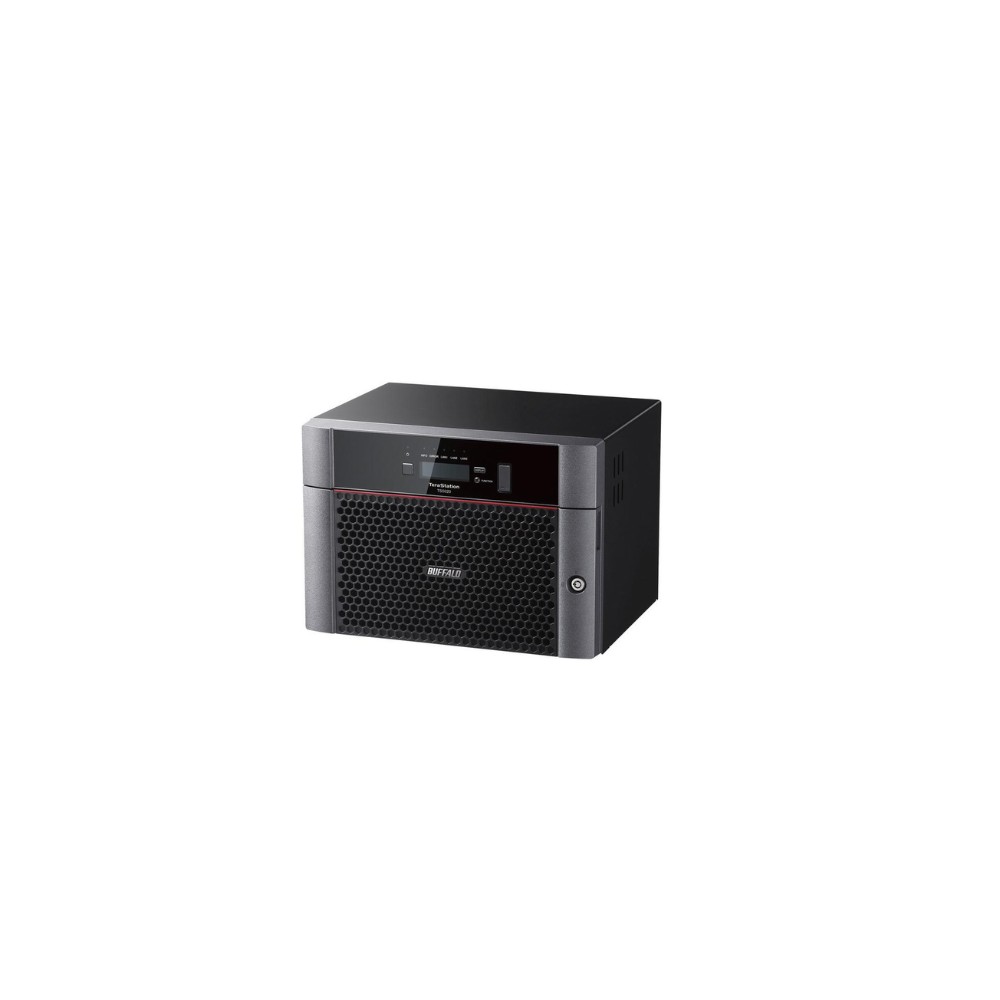

BUFFALO TS5820DN9608 – TeraStation 5020 96TB 8-Bay 10GbE NAS
Overview
The BUFFALO TS5820DN9608 is an 8-bay desktop NAS in the TeraStation 5020 series, configured with eight 12TB NAS-dedicated hard drives for 96TB of total installed capacity. It is designed for business storage environments requiring centralized network file services, RAID protection, 10GbE connectivity, snapshots, and scalable storage in a desktop chassis.
Technical Information
The TS5820DN9608 uses an Annapurna Labs Alpine AL524 quad-core 64-bit processor operating at 2.0GHz with 8GB of DDR4 ECC memory. The eight 3.5-inch SATA drive bays are populated with NAS-dedicated hard drives and support software RAID configurations including RAID 6, RAID 5, RAID 10, RAID 1, and RAID 0. RAID 6 is the factory configuration.
Network connectivity consists of one 10GBASE-T RJ-45 port and two 1000BASE-T RJ-45 ports. The 10GbE interface supports 10Gbps, 5Gbps, and 2.5Gbps operation, while the Gigabit Ethernet interfaces support 1000Mbps, 100Mbps, and 10Mbps connectivity.
The system provides firmware redundancy using HDD and NAND flash storage and includes snapshot, copy-on-write, metadata duplication, iSCSI volume backup, scheduled backup, replication, failover, and abnormal file-operation detection capabilities. An optional virus-checking extension is also supported.
Compatibility
The TS5820DN9608 is designed for standard Ethernet storage environments using RJ-45 network infrastructure. Its 10GBASE-T interface can connect to compatible 10GbE copper switches, while the two 1000BASE-T ports provide conventional Gigabit Ethernet connectivity.
The system uses eight 3.5-inch SATA drives and supports RAID 6, RAID 5, RAID 10, RAID 1, and RAID 0. Buffalo specifies 72TB of effective capacity in the factory RAID 6 configuration, with 84TB available in RAID 5, 48TB in RAID 10, 12TB in RAID 1, and 96TB in RAID 0.
Key Features
- 96TB total installed capacity using eight 12TB NAS-dedicated HDDs
- 8-bay desktop chassis with software RAID and hot-swappable drives
- 1 × 10GBASE-T and 2 × 1000BASE-T RJ-45 network interfaces
- 8GB DDR4 ECC memory with Annapurna Labs AL524 quad-core processor
- Factory RAID 6 with snapshots, replication, failover, and iSCSI volume backup
Applications
- Business file and network storage
- Centralized SMB/CIFS and NFS storage environments
- 10GbE storage networks using copper Ethernet infrastructure
- Backup, replication, and snapshot-based recovery deployments
- iSCSI storage and shared business data repositories
DC Supplies Product Note
The TS5820DN9608 is fully populated with eight 12TB drives and ships with RAID 6 configured by default. Buffalo specifies 72TB of effective RAID 6 capacity from the 96TB raw installation, making the RAID level and resulting usable capacity important considerations when planning the storage environment.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS5820DN9608 |
| Product Type | Desktop NAS |
| Series | TeraStation 5020 / TeraStation 5820DN |
| Form Factor | Desktop |
| Total Installed Capacity | 96TB |
| Included Drives | 8 × 12TB NAS-dedicated HDD |
| Drive Bays | 8 × 3.5-inch |
| Drive Interface | SATA III, 6Gbps |
| Default RAID | RAID 6 |
| Supported RAID | RAID 6, 5, 10, 1, 0 |
| RAID 6 Effective Capacity | 72TB |
| RAID 5 Effective Capacity | 84TB |
| RAID 10 Effective Capacity | 48TB |
| RAID 1 Effective Capacity | 12TB |
| RAID 0 Effective Capacity | 96TB |
| CPU | Annapurna Labs Alpine AL524, 2.0GHz, Quad-Core 64-bit |
| Memory | 8GB DDR4 ECC |
| 10GbE | 1 × 10GBASE-T RJ-45 |
| Gigabit Ethernet | 2 × 1000BASE-T RJ-45 |
| USB | 2 × USB 3.2; 2 × USB 2.0 |
| RAID Type | Software RAID |
| Snapshots | Supported |
| Copy-on-Write | Supported |
| Metadata Duplication | Supported |
| iSCSI Volume Backup | Supported |
| Replication | Supported |
| Failover | Supported |
| Hot Swap | Supported |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 150W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 300 × 215 × 230mm (W × H × D) |
| Weight | Approximately 12.5kg |
| Warranty | 3 years |
| Country of Origin | Japan |
FAQs
What is the storage capacity of the BUFFALO TS5820DN9608?
The TS5820DN9608 has 96TB of total installed storage using eight 12TB NAS-dedicated hard drives.
What RAID mode is configured by default?
Buffalo specifies RAID 6 as the factory configuration. The exact-model RAID table lists 72TB of effective capacity in RAID 6.
Does the TS5820DN9608 support 10GbE?
Yes. The NAS provides one 10GBASE-T RJ-45 port and two 1000BASE-T RJ-45 ports.
How much memory does the TS5820DN9608 have?
The system is equipped with 8GB of DDR4 ECC memory.
Does the TS5820DN9608 support hot-swapping?
Yes. Buffalo specifies hot-swapping for the internal hard drives, allowing supported drive replacement without powering down the NAS.
