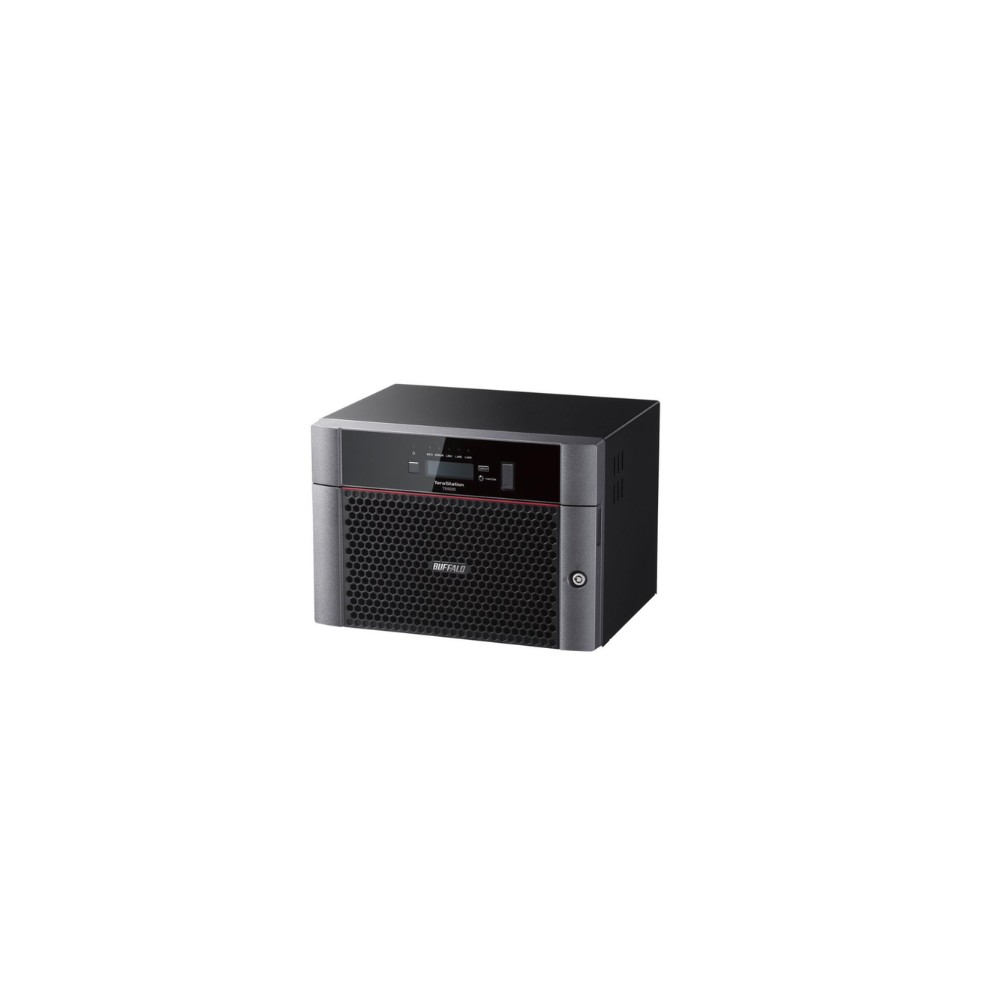

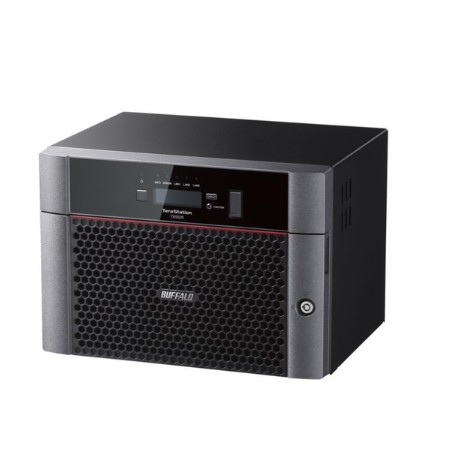

BUFFALO TS5820DN8004 – TeraStation 5020 80TB 8-Bay 10GbE NAS
Overview
The BUFFALO TS5820DN8004 is a TeraStation 5020 Series 8-bay desktop NAS configured with 80TB of installed storage using four 20TB NAS-grade CMR hard drives. The chassis provides four additional drive bays for expansion and supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD configurations.
The TS5820DN8004 is designed for business environments requiring centralized network storage, high-capacity disk configurations, and high-speed Ethernet connectivity. Its eight-bay desktop chassis combines a 10GbE interface with two additional 1GbE ports for deployment across mixed-speed network infrastructure.
Technical Information
The system uses an Annapurna Labs Alpine AL524 processor operating at 2.04GHz with four CPU cores and 8GB of DDR4 memory. The included NAS-grade hard drives use SATA storage interfaces, while the platform provides two USB 3.2 ports and two USB 2.0 ports for supported peripherals.
Network connectivity consists of one 10GbE RJ-45 port and two 1GbE RJ-45 ports. Network services include TCP/IP, CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS.
The TS5820DN platform supports snapshots, remote configuration, and abnormal file activity detection. Buffalo also specifies hot-swapping and hot-spare support for the eight-bay platform.
Compatibility
The TS5820DN8004 is intended for Ethernet-based NAS environments and supports 10GbE and Gigabit Ethernet connectivity through RJ-45 interfaces. The system supports Windows and macOS client environments listed by Buffalo for the TeraStation 5020 platform.
Supported storage configurations include RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD. Four of the eight drive bays are populated in the TS5820DN8004, leaving four bays available for compatible additional drives.
Buffalo identifies the TS5820DN platform as using NAS-grade CMR hard drives. Compatible replacement and expansion drives should be selected from Buffalo-supported drive options rather than assuming that any third-party HDD is supported.
Key Features
- 80TB installed capacity using four 20TB NAS-grade CMR hard drives
- Eight-bay desktop chassis with four populated and four available drive bays
- One 10GbE RJ-45 port plus two 1GbE RJ-45 ports
- Annapurna Labs AL524 2.04GHz quad-core processor with 8GB DDR4 memory
- RAID 0/1/5/6/10 and JBOD support with snapshots, hot swap, and hot spares
Applications
- Business file and shared network storage
- Centralized departmental and office data storage
- High-capacity backup and data-protection deployments
- 10GbE storage environments
- Expandable desktop NAS installations requiring additional drive bays
DC Supplies Product Note
The TS5820DN8004 uses four of its eight drive bays for the supplied 80TB configuration, leaving four bays available for future expansion. Buffalo's TS5020 platform is supplied with NAS-grade drives and preconfigured RAID, while the supported RAID mode should be selected according to the required balance between usable capacity and drive-failure protection.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS5820DN8004 |
| Product Type | Desktop NAS |
| Series | TeraStation 5020 |
| Form Factor | 8-Bay Desktop |
| Drive Bays | 8 |
| Included Drives | 4 × 20TB |
| Total Installed Capacity | 80TB |
| Available Drive Bays | 4 |
| Drive Type | NAS-Grade HDD, CMR |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 / JBOD |
| Processor | Annapurna Labs Alpine AL524, 2.04GHz Quad-Core |
| Memory | 8GB DDR4 |
| 10GbE Network | 1 × 10GbE |
| Gigabit Network | 2 × 1GbE |
| Network Connector | RJ-45 |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| USB Ports | 2 × USB 3.2, 2 × USB 2.0 |
| USB Connector | Type-A |
| SSD Caching | Not supported |
| Snapshots | Supported |
| Abnormal File Activity Detection | Supported |
| Remote Configuration | Supported |
| Hot Swap | Supported |
| Hot Spare | Supported |
| Maximum Power Consumption | 150W |
| Data Transfer Power Consumption | 112W |
| Idle Power Consumption | 97W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 9.06 × 11.81 × 8.46 in |
| Product Weight | 23.72–26.91 lb |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| Warranty | 3 years |
FAQs
How much storage does the TS5820DN8004 provide?
The TS5820DN8004 includes four 20TB drives for 80TB of total installed raw capacity.
How many drive bays are available?
The chassis has eight drive bays. Four are populated in the 80TB configuration, leaving four bays available for compatible additional drives.
What RAID levels are supported?
The TS5820DN8004 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network ports are included?
The NAS provides one 10GbE RJ-45 port and two 1GbE RJ-45 ports.
What processor and memory are installed?
The system uses an Annapurna Labs Alpine AL524 2.04GHz quad-core processor and 8GB of DDR4 memory.
Does the TS5820DN8004 support hot-swappable drives?
Yes. Buffalo specifies hot-swapping and hot-spare support for the TS5820DN eight-bay platform.
