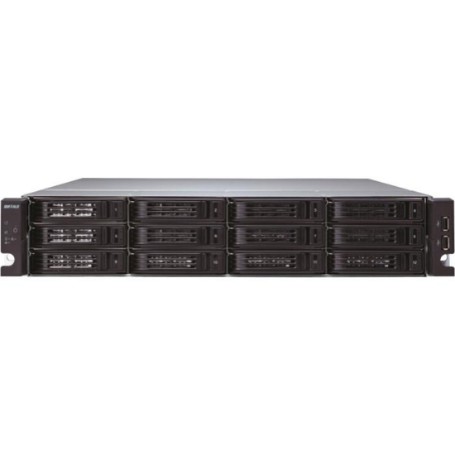

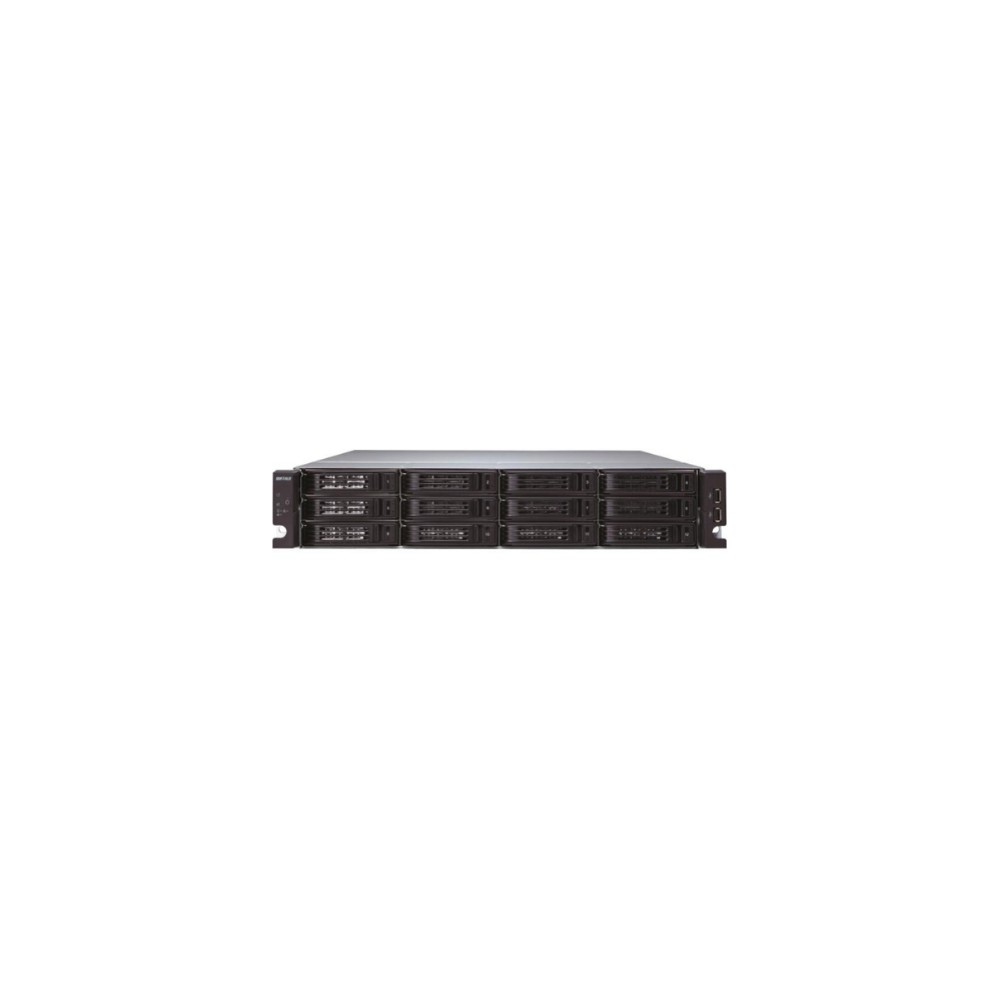

BUFFALO TS71210RH9612 – TeraStation 71210RH 96TB 12-Bay 2U 10GbE NAS
Overview
The BUFFALO TS71210RH9612 is a fully populated 12-bay 2U rackmount NAS configured with 96TB of installed storage using twelve 8TB enterprise-grade CMR hard drives. It is designed for enterprise file storage, backup, data-intensive workloads, and other network storage deployments requiring high capacity within a 2U rack footprint.
The TS71210RH platform supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD configurations. Four native 10GbE RJ-45 ports provide high-speed network connectivity, while two PCIe Gen 4 x8 expansion slots provide additional options for storage acceleration and high-speed networking.
Technical Information
The TS71210RH9612 uses an Intel Xeon D-1713NT 2.2GHz quad-core processor with Turbo Boost up to 3.5GHz and 16GB of DDR4 ECC memory. System memory can be expanded to 64GB using compatible 16GB modules.
The NAS uses the Btrfs file system and supports snapshots, SSD caching, and iSCSI functionality. Buffalo also specifies copy-on-write and metadata duplication capabilities for the platform. Four 10GBASE-T interfaces support 10Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Two USB 3.2 Gen 1 ports and two USB 2.0 ports provide additional peripheral connectivity. The rackmount platform supports hot swapping and hot spares for compatible drive configurations.
Compatibility
The TS71210RH9612 is intended for enterprise rackmount environments using standard Ethernet infrastructure. Its four RJ-45 10GbE ports support 10Gbps as well as 1Gbps, 100Mbps, and 10Mbps Ethernet connections.
Network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS. Buffalo also specifies support for iSCSI targets and iSCSI volume backup, making the system suitable for storage environments that require block-level network storage in addition to conventional file services.
The two PCIe Gen 4 x8 expansion slots support compatible 10GbE SFP+, 25GbE SFP28, and 40GbE QSFP network expansion options, as well as SSD caching hardware. Expansion hardware is not assumed to be included unless separately specified.
Key Features
- 96TB installed capacity using twelve 8TB enterprise-grade CMR hard drives
- 12-bay 2U rackmount chassis with all bays populated
- Intel Xeon D-1713NT quad-core processor with 16GB DDR4 ECC memory
- Four native 10GBASE-T RJ-45 network ports
- Two PCIe Gen 4 x8 expansion slots with SSD caching and high-speed network expansion support
Applications
- Enterprise file and shared network storage
- Centralized business data repositories
- High-capacity backup and data-protection environments
- 10GbE data-center and server-room storage deployments
- iSCSI storage for compatible server and virtualization environments
DC Supplies Product Note
The TS71210RH9612 is the fully populated 96TB configuration of the TS71210RH platform, using all twelve drive bays with 8TB enterprise-grade CMR HDDs. Because all bays are populated, storage expansion within the chassis requires replacing installed drives with supported higher-capacity drives rather than adding additional drive bays.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS71210RH9612 |
| Product Type | Enterprise Rackmount NAS |
| Series | TeraStation 71210RH |
| Form Factor | 2U Rackmount |
| Drive Bays | 12 |
| Populated Bays | 12 |
| Installed Drives | 12 × 8TB |
| Total Installed Capacity | 96TB |
| Drive Type | Enterprise-Grade CMR HDD |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 / JBOD |
| Processor | Intel Xeon D-1713NT, 2.2GHz Quad-Core |
| Turbo Frequency | Up to 3.5GHz |
| Memory | 16GB DDR4 ECC |
| Maximum Memory | 64GB |
| File System | Btrfs |
| Network Ports | 4 × 10GBASE-T |
| Network Connector | RJ-45 |
| Supported Ethernet Speeds | 10Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| iSCSI | Supported |
| PCIe Expansion | 2 × PCIe Gen 4 x8 |
| SSD Caching | Supported |
| USB Ports | 2 × USB 3.2 Gen 1, 2 × USB 2.0 |
| USB Connector | Type-A |
| Hot Swap | Supported |
| Hot Spare | Supported |
| Maximum Power Consumption | 500W |
| Data Transfer Power Consumption | 251W |
| Idle Power Consumption | 238W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Redundant Power Supply | Included |
| Dimensions | 29.0 × 18.9 × 3.5 in |
| Product Weight | 54.2 lb |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| FIPS 140 CAVP Validated | Yes |
| Warranty | 5 years with product registration |
FAQs
How much storage does the TS71210RH9612 provide?
The TS71210RH9612 is configured with 96TB of installed raw storage using twelve 8TB enterprise-grade CMR hard drives.
How many drive bays does the TS71210RH9612 have?
The chassis has 12 drive bays, and all 12 bays are populated in this 96TB configuration.
What RAID levels are supported?
The TS71210RH9612 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network interfaces are included?
The NAS provides four native 10GBASE-T RJ-45 ports supporting 10Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Can the memory be expanded?
Yes. The system includes 16GB of DDR4 ECC memory and supports expansion up to 64GB using compatible 16GB modules.
Does the TS71210RH9612 support SSD caching?
Yes. SSD caching is supported through compatible hardware, with two PCIe Gen 4 x8 expansion slots available for supported expansion options.
