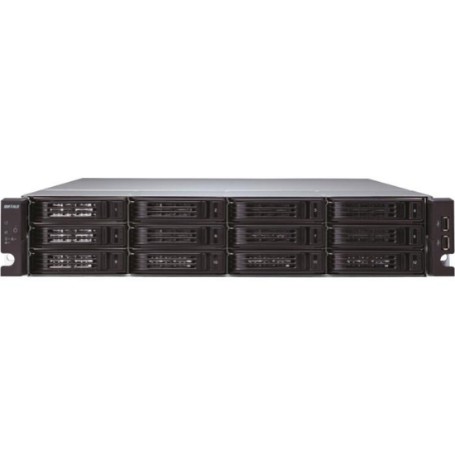

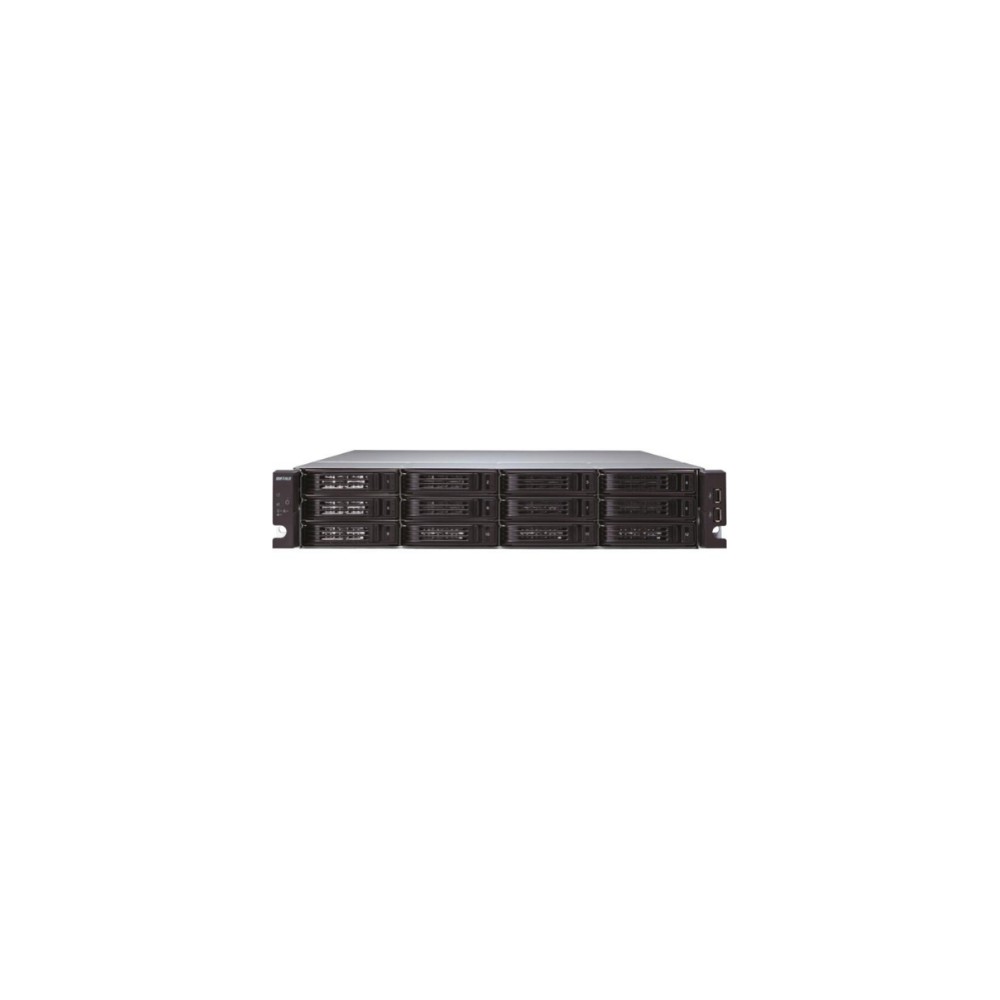

BUFFALO TS71210RH4804 – TeraStation 71210RH 48TB 12-Bay 2U 10GbE NAS
Overview
The BUFFALO TS71210RH4804 is a TeraStation 71210RH Series enterprise NAS configured with 48TB of installed storage using four 12TB enterprise-grade hard drives. The 12-bay 2U rackmount chassis leaves eight drive bays available for additional storage and supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD configurations.
The system is designed for business and data-center storage environments requiring high-capacity network storage, 10GbE connectivity, and expansion capability. Four native 10GBASE-T RJ-45 ports provide network connectivity, while two PCIe Gen 4 x8 expansion slots support compatible expansion hardware.
Technical Information
The TS71210RH4804 uses an Intel Xeon D-1713NT 2.2GHz quad-core processor with Turbo Boost up to 3.5GHz. It includes 16GB of DDR4 ECC memory and supports expansion up to 64GB using compatible 16GB memory modules. The storage system uses Btrfs and supports SSD caching through compatible expansion hardware.
Four 10GBASE-T RJ-45 ports support 10Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections. Network services include TCP/IP, CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS. The system also supports hot swapping and hot spares.
Compatibility
The TS71210RH4804 is intended for rackmount network-storage environments using standard Ethernet infrastructure. Its four 10GBASE-T ports support 10Gbps and backward-compatible 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Compatible operating systems include Windows 11, Windows 10, Windows 8.1, Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012, Windows Server 2012 R2, and macOS 10.13 or later.
Buffalo lists the OP-HD12.0H2U-5Y as a compatible 12TB replacement enterprise hard drive for the TS71210RH4804. The replacement drive uses a SATA 6Gbps interface and carries a five-year warranty.
Key Features
- 48TB installed capacity using four 12TB enterprise-grade hard drives
- 12-bay 2U rackmount chassis with eight available drive bays
- Intel Xeon D-1713NT quad-core processor with 16GB DDR4 ECC memory
- Four native 10GBASE-T RJ-45 network ports
- Two PCIe Gen 4 x8 slots with SSD caching and network expansion support
Applications
- Enterprise file and network storage
- Centralized business data repositories
- High-capacity backup and data-protection deployments
- 10GbE data-center and server-room storage environments
- Expandable rackmount NAS installations requiring additional storage or network interfaces
DC Supplies Product Note
The TS71210RH4804 uses four of the chassis's twelve drive bays for its 48TB configuration, leaving eight bays available for future expansion. The platform also combines redundant power, hot-swap drive support, four native 10GbE ports, and PCIe expansion for deployments where storage capacity and network bandwidth may need to grow over time.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS71210RH4804 |
| Product Type | Enterprise Rackmount NAS |
| Series | TeraStation 71210RH |
| Form Factor | 2U Rackmount |
| Drive Bays | 12 |
| Populated Bays | 4 |
| Available Bays | 8 |
| Installed Drives | 4 × 12TB |
| Total Installed Capacity | 48TB |
| Drive Type | Enterprise-Grade HDD |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 / JBOD |
| Processor | Intel Xeon D-1713NT, 2.2GHz Quad-Core |
| Turbo Frequency | Up to 3.5GHz |
| Memory | 16GB DDR4 ECC |
| Maximum Memory | 64GB |
| File System | Btrfs |
| Network Ports | 4 × 10GBASE-T |
| Network Connector | RJ-45 |
| Supported Ethernet Speeds | 10Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| PCIe Expansion | 2 × PCIe Gen 4 x8 |
| SSD Caching | Supported |
| USB Ports | 2 × USB 3.2 Gen 1, 2 × USB 2.0 |
| USB Connector | Type-A |
| Hot Swap | Supported |
| Hot Spare | Supported |
| Maximum Power Consumption | 500W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Redundant Power Supply | Included |
| Dimensions | 29.0 × 18.9 × 3.5 in |
| Product Weight | 41.7 lb |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| FIPS 140 CAVP Validated | Yes |
| Warranty | 5 years with Next Business Day Services on all components, including hard drives, with product registration |
FAQs
How much storage does the TS71210RH4804 provide?
The TS71210RH4804 is configured with 48TB of installed raw storage using four 12TB enterprise-grade hard drives.
How many drive bays are available?
The chassis has 12 drive bays. Four are populated in the TS71210RH4804 configuration, leaving eight bays available for expansion.
What RAID levels are supported?
The TS71210RH4804 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network interfaces are included?
The NAS provides four native 10GBASE-T RJ-45 ports. Each port supports 10Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Can the memory be expanded?
Yes. The system includes 16GB of DDR4 ECC memory and supports expansion up to 64GB using compatible 16GB memory modules.
Does the TS71210RH4804 support SSD caching?
Yes. Buffalo specifies SSD caching support through compatible expansion hardware, with two PCIe Gen 4 x8 expansion slots available.
