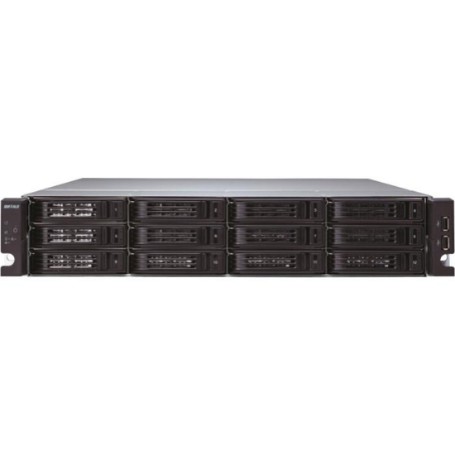

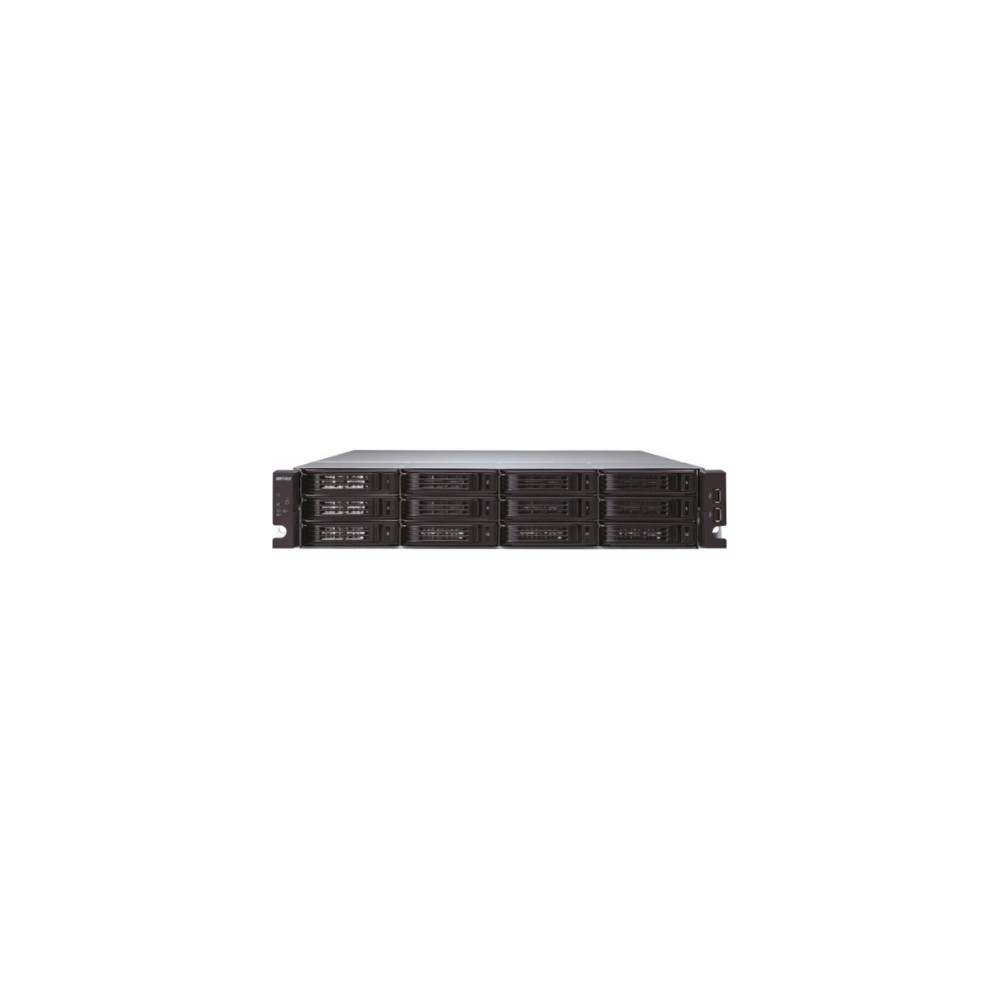

BUFFALO TS71210RH6404 – TeraStation 71210RH 64TB 12-Bay 2U 10GbE NAS
Overview
The BUFFALO TS71210RH6404 is a TeraStation 71210RH Series enterprise NAS configured with 64TB of installed storage using four 16TB enterprise-grade hard drives. The 12-bay 2U rackmount chassis provides eight additional drive bays for storage expansion and supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD configurations.
The system is designed for business and data-center storage environments requiring high-capacity network storage, multi-gigabit connectivity, and expansion capability. Four native 10GbE RJ-45 ports provide network connectivity, while two PCIe Gen 4 x8 expansion slots support compatible expansion options.
Technical Information
The TS71210RH6404 uses an Intel Xeon D-1713NT 2.2GHz quad-core processor with Turbo Boost up to 3.5GHz. It is equipped with 16GB of DDR4 ECC memory and supports expansion up to 64GB using compatible 16GB memory modules.
Four 10GBASE-T RJ-45 ports support 10Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections. Network services include TCP/IP, CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS.
The NAS uses Btrfs and supports SSD caching. Two PCIe Gen 4 x8 expansion slots provide additional expansion capability, including support for compatible high-speed networking and storage acceleration options. Buffalo specifies support for 25GbE and 40GbE expansion through compatible network adapters.
Compatibility
The TS71210RH6404 is intended for rackmount network-storage deployments using standard Ethernet infrastructure. Its four 10GbE RJ-45 interfaces can operate with 10Gbps, 1Gbps, 100Mbps, and 10Mbps Ethernet connections.
Compatible operating systems include Windows 11, Windows 10, Windows 8.1, Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012, Windows Server 2012 R2, and macOS 10.13 or later.
Buffalo specifies the OP-HD16.0H2U-5Y enterprise replacement drive for the TS71210RH6404. The compatible replacement drive uses a SATA 6Gbps interface and carries a five-year warranty.
Key Features
- 64TB installed capacity using four 16TB enterprise-grade hard drives
- 12-bay 2U rackmount chassis with eight additional drive bays
- Intel Xeon D-1713NT quad-core processor with 16GB DDR4 ECC memory
- Four native 10GbE RJ-45 network ports
- Two PCIe Gen 4 x8 slots with SSD caching support
Applications
- Enterprise file and network storage
- Centralized business data repositories
- High-capacity backup and data-protection deployments
- 10GbE data-center and server-room storage environments
- Expandable rackmount NAS installations requiring additional storage or network interfaces
DC Supplies Product Note
The TS71210RH6404 occupies 2U of rack space while using only four of its twelve drive bays in the supplied 64TB configuration. This leaves eight bays available for future expansion, subject to supported drive and RAID configurations. The system also includes redundant power supplies and four native 10GbE ports for enterprise infrastructure deployment.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS71210RH6404 |
| Product Type | Enterprise Rackmount NAS |
| Series | TeraStation 71210RH |
| Form Factor | 2U Rackmount |
| Drive Bays | 12 |
| Populated Bays | 4 |
| Available Bays | 8 |
| Installed Drives | 4 × 16TB |
| Total Installed Capacity | 64TB |
| Drive Type | Enterprise Grade HDD |
| Drive Interface | SATA 6Gbps |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 / JBOD |
| Processor | Intel Xeon D-1713NT, 2.2GHz Quad-Core |
| Turbo Frequency | Up to 3.5GHz |
| Memory | 16GB DDR4 ECC |
| Maximum Memory | 64GB |
| File System | Btrfs |
| Network Ports | 4 × 10GBASE-T |
| Network Connector | RJ-45 |
| Supported Ethernet Speeds | 10Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| PCIe Expansion | 2 × PCIe Gen 4 x8 |
| SSD Caching | Supported |
| USB Ports | 2 × USB 3.2 Gen 1, 2 × USB 2.0 |
| USB Connector | Type-A |
| Maximum Power Consumption | 500W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Redundant Power Supply | Included |
| Dimensions | 29.0 × 18.9 × 3.5 in |
| Product Weight | 41.7 lb |
| Warranty | 5 years with Next Business Day Service on all components, including hard drives, with product registration |
FAQs
How much storage does the TS71210RH6404 provide?
The TS71210RH6404 is configured with 64TB of installed raw storage using four 16TB enterprise-grade hard drives.
How many drive bays are available?
The chassis has 12 drive bays. Four are populated in the TS71210RH6404 configuration, leaving eight bays available for expansion.
What RAID levels are supported?
The TS71210RH6404 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network interfaces are included?
The NAS provides four native 10GBASE-T RJ-45 ports. Each port supports 10Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Can the memory be expanded?
Yes. The system includes 16GB of DDR4 ECC memory and supports expansion up to 64GB using compatible memory modules.
Does the TS71210RH6404 support SSD caching?
Yes. Buffalo specifies SSD caching support and provides two PCIe Gen 4 x8 expansion slots for compatible expansion hardware.
