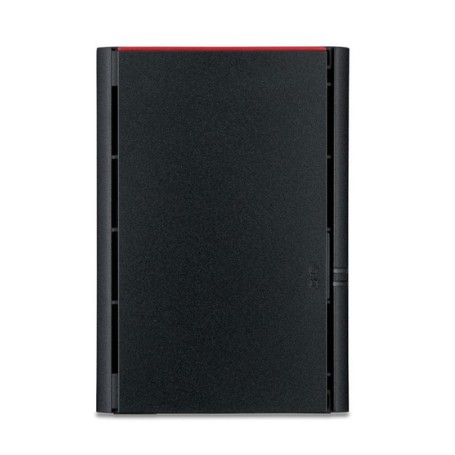

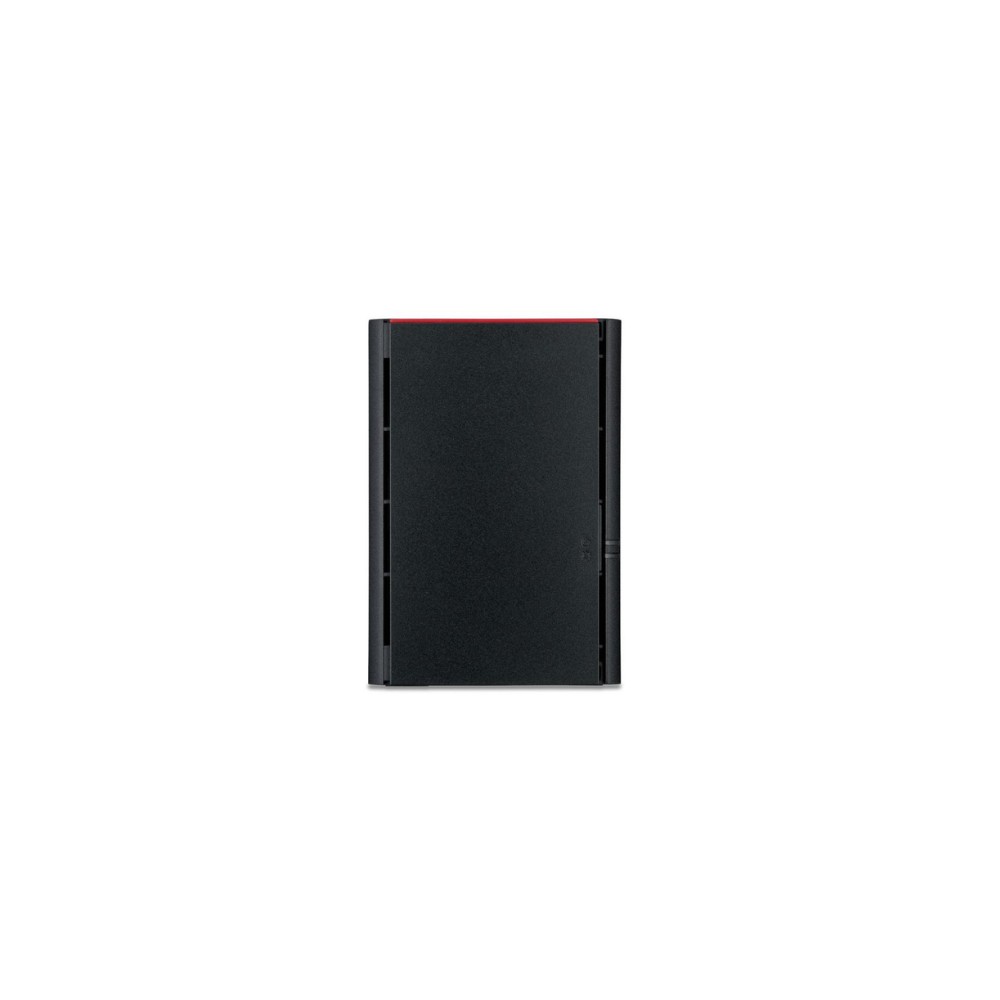

BUFFALO LS220D0402B – LinkStation SoHo 4TB 2-Bay Gigabit NAS
Overview
The BUFFALO LS220D0402B is a LinkStation SoHo 220 desktop NAS configured with two 2TB hard drives for 4TB of installed storage. The two-bay system is designed for small-office and home-office network storage, centralized file sharing, and backup applications.
The factory configuration uses RAID 1, providing a mirrored storage arrangement with 2TB of usable capacity from the two installed drives. RAID 0 and Normal/JBOD operation are also supported when a different storage configuration is required.
Technical Information
The LS220D0402B uses a Marvell Armada 370 800MHz dual-issue ARM processor with 256MB of DDR3 memory. Network connectivity is provided through one Gigabit Ethernet RJ-45 port with 10/100/1000Mbps auto-sensing operation. One USB 2.0 Type-A port is available for supported USB devices.
The NAS supports TCP/IP networking and SMB/CIFS, AFP, and FTP/FTPS network file services. The two internal drives use SATA 3Gbps interfaces.
Compatibility
The LS220D0402B is compatible with supported Windows and macOS client environments and provides standard TCP/IP network connectivity through its Gigabit Ethernet interface. Supported network file services include SMB/CIFS, AFP, and FTP/FTPS.
BUFFALO identifies the OP-HD2.0T/LS as the replacement hard drive for the 4TB LS220D0402B configuration. Drive replacement requires the NAS to be powered off; this model does not support hot-swapping.
Key Features
- 4TB installed capacity with two 2TB hard drives
- Two-bay desktop NAS with SATA 3Gbps drive interfaces
- Gigabit Ethernet RJ-45 network connectivity
- RAID 0, RAID 1, and Normal/JBOD storage modes
- Marvell Armada 370 800MHz processor with 256MB DDR3 memory
Applications
- Small-office and home-office network storage
- Centralized file sharing across network clients
- Business data backup and storage
- Mirrored RAID 1 storage for improved drive-failure protection
- Personal cloud and remote file-access deployments
DC Supplies Product Note
The LS220D0402B is a 4TB configuration using two 2TB drives and ships configured for RAID 1. Because the chassis has only two drive bays and does not support hot-swapping, plan drive replacement as a powered-off maintenance operation.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS220D0402B |
| Product Type | Desktop NAS |
| Series | LinkStation SoHo 220 / LS220DB |
| Installed Capacity | 4TB |
| Included Drives | 2 × 2TB HDD |
| Drive Bays | 2 |
| Drive Interface | SATA 3Gbps |
| Supported RAID | RAID 0, RAID 1, Normal/JBOD |
| Factory RAID | RAID 1 |
| RAID 1 Usable Capacity | 2TB |
| RAID 0 Usable Capacity | 4TB |
| Processor | Marvell Armada 370, 800MHz Dual-Issue ARM |
| Memory | 256MB DDR3 |
| LAN Port | 1 × RJ-45 Gigabit Ethernet |
| LAN Speeds | 10/100/1000Mbps, auto-sensing |
| LAN Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| USB Port | 1 × USB 2.0 Type-A |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, AFP, FTP/FTPS |
| Hot Swap | Not supported |
| Maximum Power Consumption | 48W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 5–35°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 8.1 × 3.4 × 5.0 in |
| Weight | 5.5 lb |
| Compatible Replacement Drive | OP-HD2.0T/LS |
| Warranty | 3-year warranty |
FAQs
How much storage does the LS220D0402B include?
The LS220D0402B includes two 2TB hard drives for 4TB of installed raw storage capacity.
What RAID configuration does the LS220D0402B use?
The factory configuration is RAID 1, providing 2TB of usable mirrored storage. RAID 0 and Normal/JBOD modes are also supported.
Does the LS220D0402B support hot-swapping?
No. BUFFALO specifies that drive replacement must be performed with the NAS powered off.
What network connection does the LS220D0402B provide?
The NAS has one RJ-45 Gigabit Ethernet port supporting 10Mbps, 100Mbps, and 1000Mbps operation.
Which replacement drive is specified for the LS220D0402B?
BUFFALO specifies the OP-HD2.0T/LS as the replacement hard drive for the 4TB LS220D0402B configuration.
