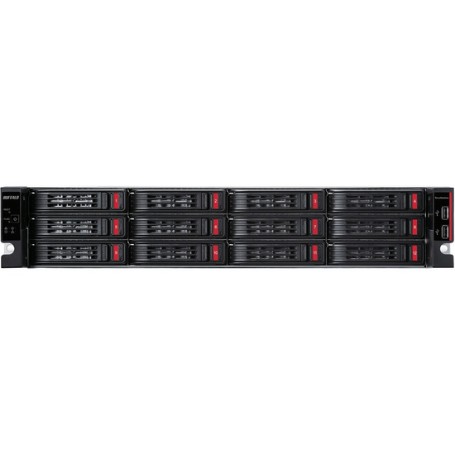

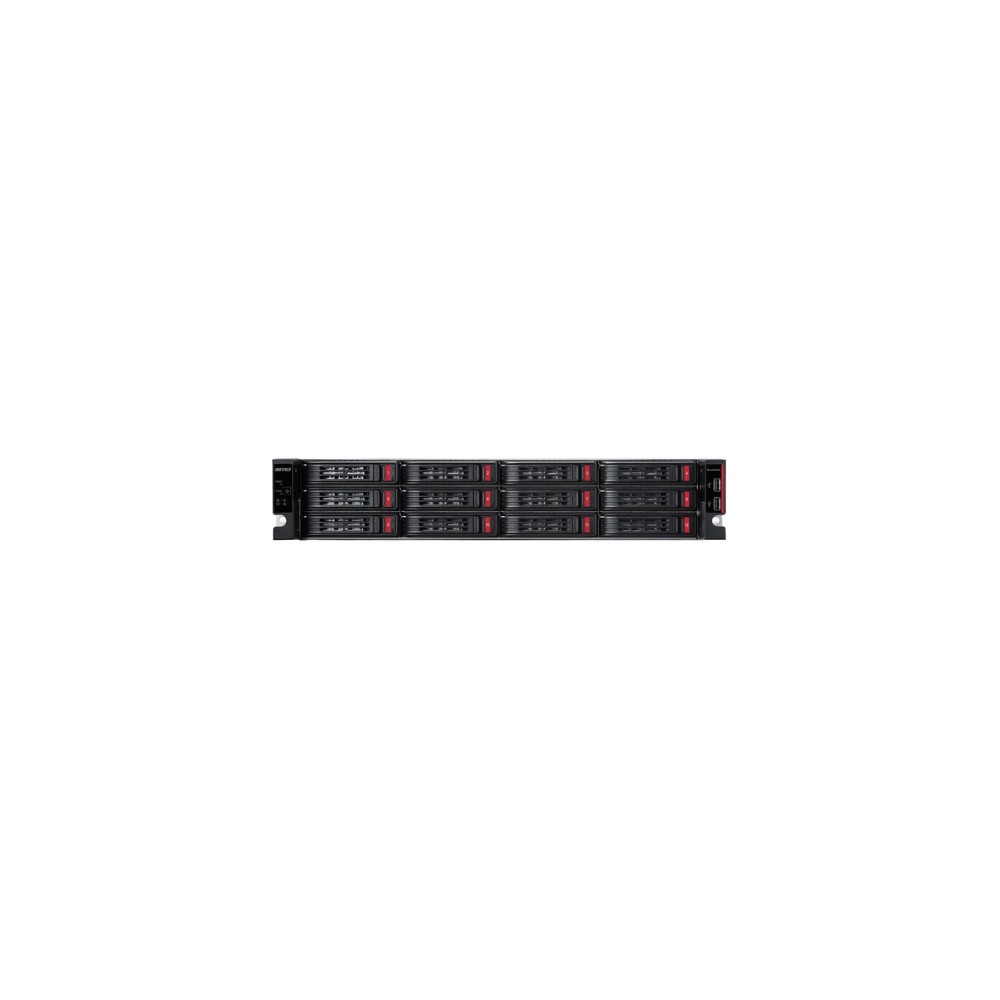

BUFFALO TS51220RH1604 – TeraStation 51220RH 16TB 12-Bay 2U Enterprise NAS
Overview
The BUFFALO TS51220RH1604 is a TeraStation 51220RH enterprise NAS configured with four 4TB enterprise-grade HDDs in a 12-bay, 2U rackmount chassis. The configuration provides 16TB of installed raw storage while leaving eight drive bays available for expansion.
The platform is designed for business and data-center storage environments requiring centralized file storage, backup, virtualization-related storage, and network-attached storage with 10GbE connectivity. The factory RAID 6 configuration provides 8TB of effective capacity from the installed four-drive configuration.
Technical Information
The TS51220RH1604 uses an Annapurna Labs Alpine V2 AL524 quad-core processor running at 2.0GHz and 16GB of DDR4 ECC memory. The system provides two 10GBASE-T ports and two 1000BASE-T ports, supporting high-speed network connectivity and link aggregation.
Storage management supports RAID 6, RAID 5, RAID 10, RAID 1, RAID 0, and JBOD. The TS51220RH platform also supports hot-swappable drives and hot spares. Snapshot functionality, snapshot backup, iSCSI, iSCSI volume backup, replication, and failover support the platform's business continuity and data-protection capabilities.
SSD caching is supported on the TS51220RH platform using separately installed compatible SSDs. The system also provides firmware redundancy and an optional redundant power supply configuration.
Compatibility
The TS51220RH1604 uses 3.5-inch enterprise-grade nearline HDDs and supports SATA 6Gbps drive interfaces. Its network interfaces include two 10GBASE-T ports and two 1000BASE-T ports with support for IEEE 802.3ad Link Aggregation, flow control, 10GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T on the applicable interfaces.
The NAS supports iSCSI storage connectivity and can be used as additional storage for compatible server environments. The platform is also specified for VMware-related deployment and supports business NAS functions including replication and failover.
Key Features
- 16TB installed capacity using four 4TB enterprise-grade HDDs
- 12-bay 2U rackmount chassis with eight open drive bays
- Dual 10GBASE-T and dual 1000BASE-T network interfaces
- Factory RAID 6 with support for RAID 0, 1, 5, 6, 10, and JBOD
- 2.0GHz quad-core AL524 processor with 16GB DDR4 ECC memory
Applications
- Enterprise file and network storage
- Centralized business backup and data protection
- Server expansion through iSCSI storage
- Virtualization-related storage deployments
- Rackmount NAS environments requiring future drive expansion
DC Supplies Product Note
The TS51220RH1604 is a partially populated 12-bay enterprise NAS: four 4TB drives are installed while eight bays remain available. This configuration provides a substantial expansion path without requiring the initial purchase of a fully populated chassis.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS51220RH1604 |
| Product Type | Enterprise Rackmount NAS |
| Series | TeraStation 51220RH / TeraStation 5020 |
| Chassis | 2U Rackmount |
| Total Installed Capacity | 16TB |
| Included Drives | 4 × 4TB |
| Drive Bays | 12 |
| Open Drive Bays | 8 |
| Drive Interface | SATA 6Gbps |
| Drive Type | Enterprise-grade Nearline HDD, CMR |
| Factory RAID | RAID 6 |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| RAID 6 Effective Capacity | 8TB |
| RAID 5 Effective Capacity | 12TB |
| RAID 10 Effective Capacity | 8TB |
| RAID 1 Effective Capacity | 4TB |
| RAID 0 Effective Capacity | 16TB |
| Hot Swap | Supported |
| Hot Spare | Supported |
| Processor | Annapurna Labs Alpine V2 AL524, 2.0GHz Quad-Core |
| Memory | 16GB DDR4 ECC |
| 10GbE Network Ports | 2 × 10GBASE-T, rear |
| 1GbE Network Ports | 2 × 1000BASE-T, rear |
| Network Features | IEEE 802.3ad Link Aggregation, IEEE 802.3x Flow Control |
| USB Ports | 2 × USB 3.2 Gen 1, 2 × USB 2.0 |
| iSCSI | Supported |
| SSD Caching | Supported |
| Snapshot | Supported |
| Replication | Supported |
| Failover | Supported |
| Maximum Power Consumption | 500W |
| Data Transfer Power | 177W |
| Idle Power | 135W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Redundant Power Supply | Optional |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 481 × 88 × 736.9mm (W × H × D) |
| Weight | Approximately 19.8kg |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| Warranty | 3-year standard warranty; 5-year warranty with product registration in applicable North American terms |
FAQs
How much storage is included with the TS51220RH1604?
The TS51220RH1604 includes four 4TB enterprise-grade HDDs for 16TB of installed raw storage capacity.
How many drive bays are available?
The chassis has 12 drive bays. Four are populated in this configuration, leaving eight bays available for compatible additional drives.
What is the factory RAID configuration?
The TS51220RH1604 is configured with RAID 6 at shipment. With the four installed 4TB drives, the specified RAID 6 effective capacity is 8TB.
What network interfaces does the TS51220RH1604 provide?
The system provides two 10GBASE-T ports and two 1000BASE-T ports. IEEE 802.3ad Link Aggregation is supported.
Does the TS51220RH1604 support iSCSI?
Yes. iSCSI is supported, allowing the NAS to provide storage to compatible server environments.
Can the TS51220RH1604 use SSD caching?
Yes. The TS51220RH platform supports SSD caching using separately installed compatible SSDs.
