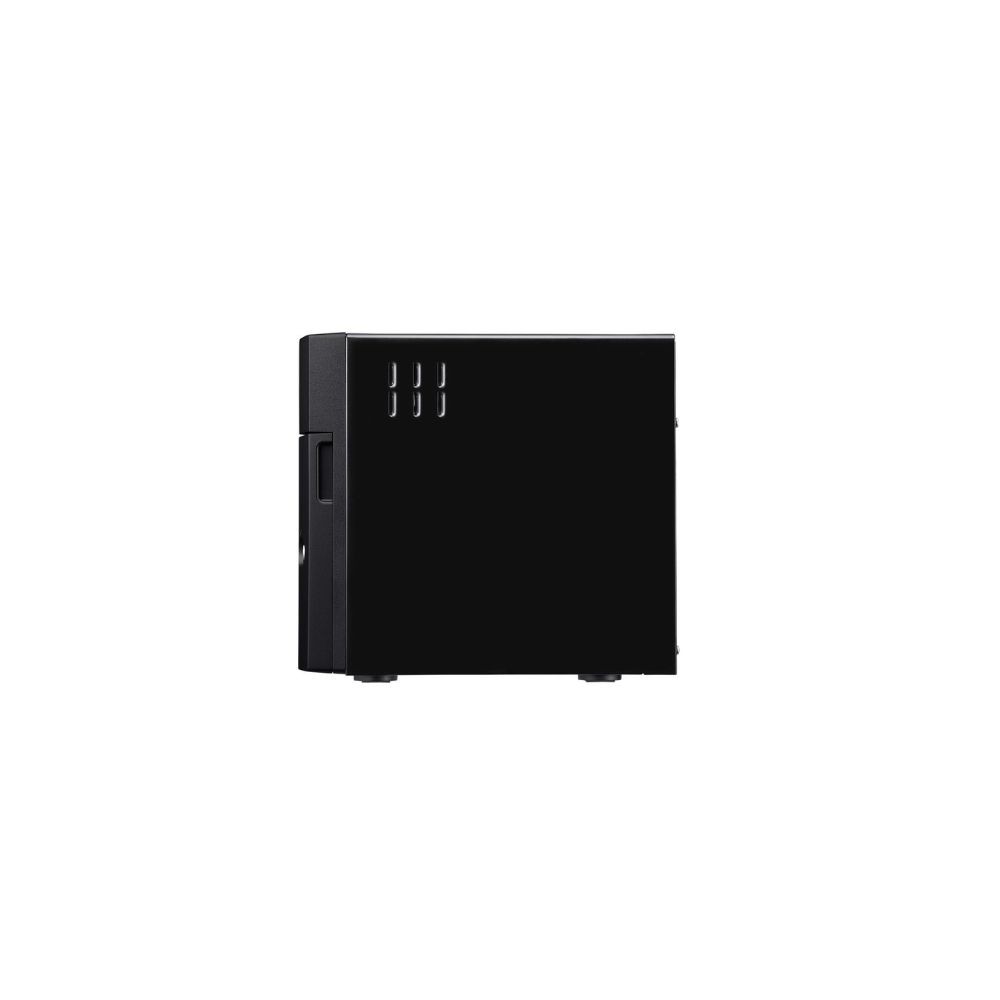

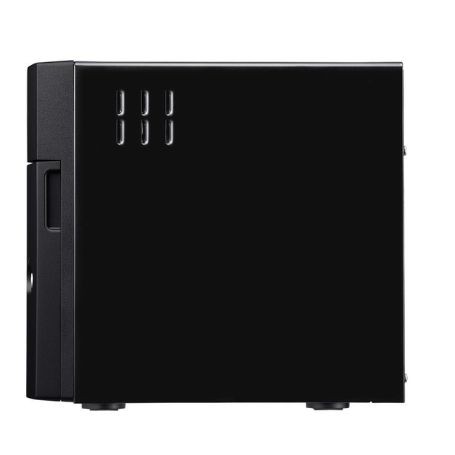

BUFFALO TS3430DN0802 – TeraStation 3430DN 8TB 4-Bay 2.5GbE Desktop NAS
Overview
The BUFFALO TS3430DN0802 is an 8TB TeraStation 3430DN desktop NAS configured with two 4TB NAS-grade SATA drives in a four-bay chassis. Two drive bays remain available for future storage expansion. The system is designed for centralized file storage, backup, and network data management in small and medium-sized business environments.
Technical Information
The TS3430DN0802 uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor with 2GB of DDR4 memory and a Btrfs file system. Network connectivity includes one 2.5GbE RJ-45 port and one 1GbE RJ-45 port, while two USB 3.2 Gen 1 Type-A ports provide connectivity for supported peripherals.
The four-bay platform supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD configurations. The supplied configuration contains two 4TB drives for 8TB of installed storage, while the two unused bays allow additional drives to be installed.
Compatibility
The TS3430DN0802 supports Windows 11, Windows 10, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS 12 or later, and Chrome OS. Supported network services include TCP/IP, CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS. iSCSI support is also specified for storage-network deployment.
The system uses 3.5-inch SATA NAS-grade hard drives and supports BUFFALO OP-HD2.0N, OP-HD4.0N, and OP-HD8.0N replacement drives. RAID configuration should be selected according to the required balance of capacity, redundancy, and performance.
Key Features
- 8TB installed capacity using two 4TB NAS-grade hard drives
- Four 3.5-inch SATA drive bays with two bays open for expansion
- 2.5GbE and 1GbE RJ-45 network connectivity
- RAID 0, 1, 5, 6, 10, and JBOD support
- 2.0GHz quad-core AL-524 processor with 2GB DDR4 memory
Applications
- Centralized business file storage and sharing
- Network backup and data protection
- Small and medium-sized office NAS deployments
- Shared storage for Windows, macOS, and Chrome OS environments
- Network storage and iSCSI-based storage applications
DC Supplies Product Note
The TS3430DN0802 is a partially populated four-bay configuration: it includes two 4TB drives while retaining two unused drive bays. This makes the exact MPN useful when an 8TB starting configuration is required without purchasing a fully populated four-bay system.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS3430DN0802 |
| Product Type | Desktop NAS |
| Series | TeraStation 3030 / 3430DN |
| Installed Capacity | 8TB |
| Included Drives | 2 × 4TB |
| Drive Bays | 4 |
| Open Drive Bays | 2 |
| Drive Interface | SATA 6Gbps |
| Drive Type | NAS-grade HDD |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| Processor | Annapurna Labs Alpine AL-524, 2.0GHz Quad-Core |
| Memory | 2GB DDR4 |
| File System | Btrfs |
| Network Ports | 1 × 2.5GbE, 1 × 1GbE RJ-45 |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A |
| Network Services | TCP/IP, CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| iSCSI | Supported |
| Maximum Power Consumption | 85W |
| Data Transfer Power | 42W |
| Idle Power | 33W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 9.1 × 6.7 × 8.5 in (L × W × H) |
| Weight | 10.6 lb |
| Country of Origin | Japan |
| Warranty | 3-year hardware warranty |
FAQs
How many drives are included with the TS3430DN0802?
The TS3430DN0802 includes two 4TB drives for 8TB of installed capacity. The chassis has four drive bays, leaving two bays available.
Which RAID levels does the TS3430DN0802 support?
The NAS supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD configurations.
What network connections are available?
The system provides one 2.5GbE RJ-45 port and one 1GbE RJ-45 port.
Can the TS3430DN0802 be expanded with additional drives?
Yes. The four-bay chassis is supplied with two installed drives, leaving two drive bays available for additional supported drives.
What processor and memory are installed?
The system uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor and 2GB of DDR4 memory.
