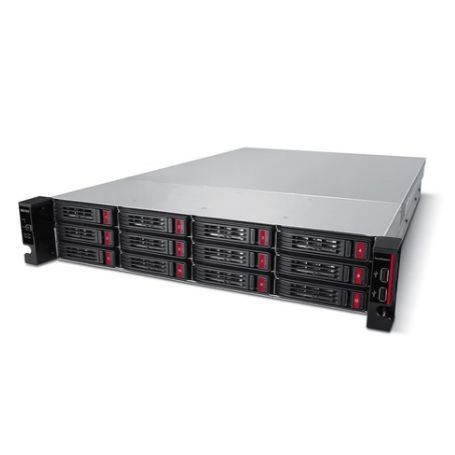

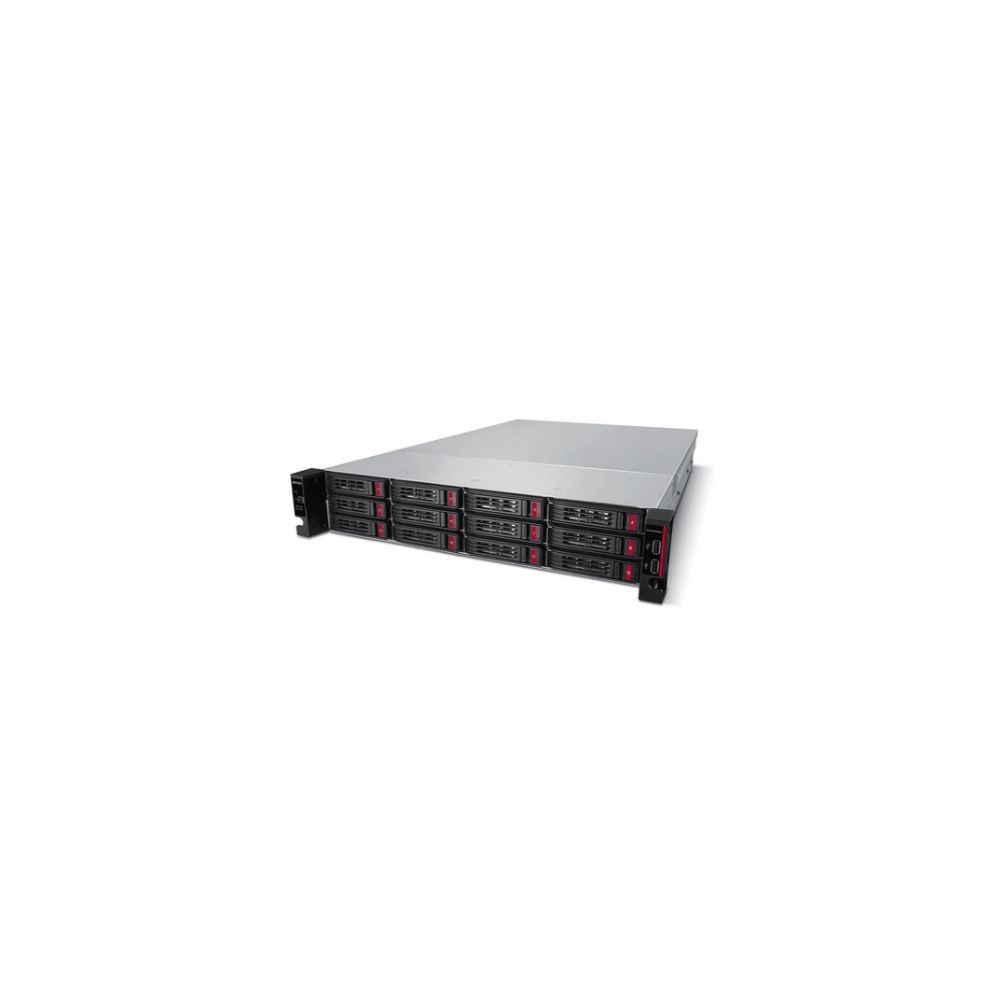

BUFFALO TS51220RH12012 – TeraStation 51220RH 120TB 12-Bay 2U Rackmount NAS
Overview
The BUFFALO TS51220RH12012 is a TeraStation 51220RH enterprise rackmount NAS with 120TB of installed storage across twelve 10TB enterprise-grade CMR hard drives. The 12-bay 2U platform provides dual 10GbE, dual Gigabit Ethernet, 16GB DDR4 memory, hardware-compatible hot-swappable drive bays, and multiple RAID configurations for business storage environments.
The twelve installed drives are factory-configured in RAID 6. With 120TB of raw installed capacity, RAID 6 provides 100TB of available capacity according to Buffalo's RAID capacity table. RAID 5, RAID 10, RAID 1, RAID 0, and JBOD are also supported.
Technical Information
The TS51220RH12012 uses an Annapurna Labs Alpine V2 AL524 quad-core processor operating at 2.0GHz and 16GB of DDR4 ECC memory. Storage uses twelve 3.5-inch nearline enterprise drives connected through SATA 6Gbps interfaces.
Network connectivity includes two 10GBASE-T RJ-45 ports and two 1000BASE-T RJ-45 ports. The 10GbE interfaces support 10GbE, 5GbE, and 2.5GbE operation, while the Gigabit interfaces support 1000BASE-T, 100BASE-TX, and 10BASE-T operation where specified by the respective interface.
The chassis provides two USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports. The platform supports network storage protocols including SMB/CIFS, AFP, FTP, FTPS, SFTP, NFS, TCP/IP, and iSCSI.
Compatibility
The TS51220RH12012 is designed for rackmount infrastructure and supports 12 installed 3.5-inch drives. Buffalo specifies enterprise-grade CMR HDDs for the TS51220RH family, with hot swapping and hot-spare functionality supported.
Supported RAID levels are RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD. The factory RAID 6 configuration provides dual-drive parity protection and 100TB of available capacity from the 120TB raw installation.
Buffalo lists compatibility with Windows 11, Windows 10, Windows Server 2022, Windows Server 2019, and macOS 10.13 or later. The system is also TAA compliant and manufactured in Japan.
Key Features
- 120TB installed capacity using 12 × 10TB enterprise-grade CMR HDDs
- 12-bay 2U rackmount chassis with factory RAID 6 and hot-swappable drives
- 2 × 10GBASE-T plus 2 × 1000BASE-T RJ-45 network ports
- 16GB DDR4 ECC memory with Annapurna Labs Alpine V2 AL524 quad-core processor
- SMB/CIFS, FTP/FTPS, SFTP, NFS, and iSCSI support with USB 3.2 and USB 2.0 connectivity
Applications
- High-capacity centralized business file storage
- Enterprise backup and data protection repositories
- 2U rackmount storage consolidation in data centers
- 10GbE network storage for high-throughput workgroups
- iSCSI storage for compatible servers and virtualization environments
DC Supplies Product Note
The TS51220RH12012 is the fully populated 12-drive configuration of the TeraStation 51220RH platform, with all twelve bays occupied by 10TB enterprise-grade drives. The factory RAID 6 configuration provides 100TB of available capacity while reserving dual-drive parity for array protection.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS51220RH12012 |
| Product Type | Enterprise SAN/NAS Storage System |
| Product Series | TeraStation 5020 |
| Product Model | TeraStation 51220RH |
| Form Factor | 2U Rackmount |
| Total Installed Capacity | 120TB |
| Installed Drives | 12 × 10TB Enterprise-grade CMR HDD |
| Drive Bays | 12 |
| Drive Size | 3.5-inch |
| Drive Interface | SATA 6Gbps |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 / JBOD |
| Factory RAID | RAID 6 |
| RAID 6 Available Capacity | 100TB |
| Hot Swap | Supported |
| Hot Spare | Supported |
| Processor | Annapurna Labs Alpine V2 AL524, 2.0GHz, Quad-Core |
| Memory | 16GB DDR4 ECC |
| 10GbE Network | 2 × 10GBASE-T RJ-45 |
| Gigabit Network | 2 × 1000BASE-T RJ-45 |
| Network Standards | IEEE 802.3ad, 802.3x, 802.3an, 802.3bz, 802.3ab, 802.3u, 802.3 |
| Network Protocols | TCP/IP, SMB/CIFS, AFP, FTP, FTPS, SFTP, NFS, iSCSI |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A; 2 × USB 2.0 Type-A |
| Power Consumption | 500W maximum; 177W data transfer; 135W idle |
| Power Supply | Internal AC 100–240V, 50/60Hz; optional dual power supply available |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 481 × 88 × 736.9mm (W × H × D) |
| Weight | Approximately 25kg |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| Warranty | 3 years standard; 5 years with product registration in supported North American terms |
FAQs
How much storage does the TS51220RH12012 provide?
The TS51220RH12012 contains twelve 10TB enterprise-grade hard drives for 120TB of total installed raw capacity.
What RAID configuration is supplied?
The factory configuration is RAID 6. Buffalo specifies 100TB of available capacity from the 120TB raw installation in RAID 6.
What RAID modes are supported?
The TS51220RH12012 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
How many network ports are provided?
The system provides two 10GBASE-T RJ-45 ports and two 1000BASE-T RJ-45 ports.
Can the drives be replaced without shutting down the system?
Buffalo specifies hot-swappable drive support for the TS51220RH platform, along with hot-spare support.
What replacement drive is specified for the TS51220RH12012?
Buffalo lists the OP-HD10.0H2U-5Y 10TB enterprise replacement drive as compatible with the TS51220RH12012.
