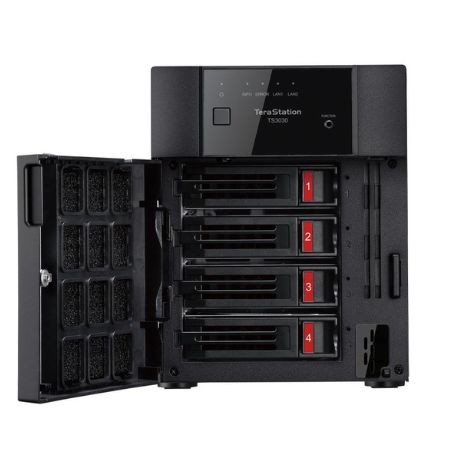

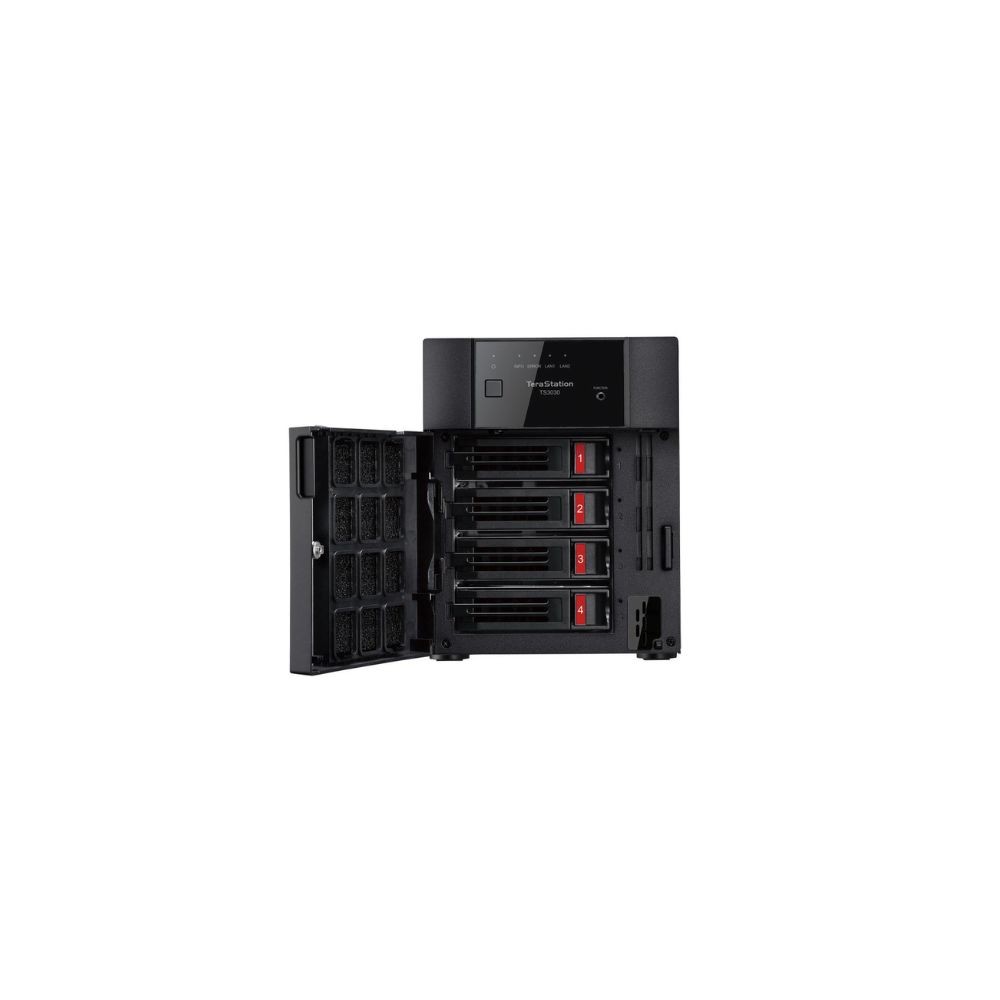

BUFFALO TS3430DN0804 – TeraStation 3430DN 8TB 4-Bay 2.5GbE NAS
Overview
The BUFFALO TS3430DN0804 is a TeraStation 3430DN desktop business NAS with 8TB of installed storage using four 2TB NAS-grade hard drives. It provides four drive bays, 2.5GbE and 1GbE network connectivity, 2GB of DDR4 memory, software RAID, and business-oriented network storage features.
The TS3430DN0804 is shipped with RAID 6 configured as the factory storage mode. The four-drive design also supports RAID 0, RAID 1, RAID 5, RAID 10, and JBOD/Individual Disks for deployments requiring different combinations of capacity, redundancy, or performance.
Technical Information
The system uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor with 2GB of DDR4 memory and a Btrfs file system. Its four SATA 6Gbps drive interfaces support the installed NAS-grade hard drives.
Network connectivity consists of one 2.5GBASE-T RJ-45 port and one 1GbE RJ-45 port. The 2.5GbE interface supports 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps operation, while the additional Gigabit interface provides a separate 1000/100/10Mbps network connection.
Two USB 3.2 Gen 1 Type-A ports provide peripheral connectivity at transfer rates up to 5Gbps. Buffalo also provides abnormal login and file activity detection and remote access/configuration capabilities on the TeraStation 3430DN platform.
Compatibility
The TS3430DN0804 supports TCP/IP networking and network file services including SMB/CIFS, AFP, FTP, FTPS, SFTP, NFS, and HTTP/HTTPS. The platform also supports SNMP and iSCSI target functionality for compatible storage environments.
Client operating systems listed by Buffalo include Windows 11, Windows 10, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS 12 or later, and Chrome OS. The 2.5GbE port supports IEEE 802.3bz, while the network interfaces also support established Gigabit and Fast Ethernet standards.
Key Features
- 8TB total storage using 4 × 2TB NAS-grade hard drives
- Four-bay desktop NAS with factory RAID 6 configuration
- Supports RAID 0, 1, 5, 6, 10, and JBOD/Individual Disks
- 1 × 2.5GbE plus 1 × 1GbE RJ-45 network interfaces
- AL-524 2.0GHz quad-core processor, 2GB DDR4, Btrfs, and iSCSI target support
Applications
- Centralized business file storage and sharing
- Network backup repositories for small and medium-sized businesses
- RAID-protected storage where multiple-drive redundancy is required
- 2.5GbE network storage deployments requiring faster-than-Gigabit connectivity
- iSCSI block storage for compatible servers and network applications
DC Supplies Product Note
The TS3430DN0804 uses four installed 2TB drives and ships with RAID 6 as the factory configuration. Because RAID 6 reserves dual-drive parity, its usable capacity is lower than the raw 8TB installed capacity but provides protection against two drive failures within the array.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS3430DN0804 |
| Product Type | 4-Bay Desktop Business NAS |
| Series | TeraStation 3430DN |
| Total Storage Capacity | 8TB |
| Installed Drives | 4 × 2TB NAS-grade HDD |
| Drive Bays | 4 |
| Drive Interface | SATA 6Gbps |
| Supported RAID | RAID 0 / 1 / 5 / 6 / 10 / JBOD (Individual Disks) |
| Factory RAID Configuration | RAID 6 |
| Processor | Annapurna Labs Alpine AL-524, 2.0GHz, Quad-Core |
| Memory | 2GB DDR4 |
| File System | Btrfs |
| Network Interfaces | 1 × 2.5GBASE-T RJ-45; 1 × 1GbE RJ-45 |
| Ethernet Data Rates | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, AFP, FTP/FTPS/SFTP, NFS, HTTP/HTTPS |
| Additional Network Services | SNMP, iSCSI |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A |
| USB Transfer Rate | Up to 5Gbps |
| Maximum Power Consumption | 85W |
| Data Transfer Power | 42W |
| Idle Power | 33W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 170 × 215 × 230mm (W × H × D) |
| Weight | Approximately 6.2kg |
| Country of Origin | Japan |
| Warranty | 3 years |
FAQs
How much storage is included with the TS3430DN0804?
The TS3430DN0804 includes 8TB of total installed storage using four 2TB NAS-grade hard drives.
What RAID configuration is supplied?
Buffalo specifies RAID 6 as the factory configuration for the four-drive TS3430DN0804.
What RAID modes are supported?
The TS3430DN0804 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD/Individual Disks.
Does the TS3430DN0804 support 2.5GbE?
Yes. It provides one 2.5GBASE-T RJ-45 port supporting up to 2.5Gbps, along with a separate 1GbE RJ-45 interface.
Does the TS3430DN0804 support iSCSI?
Yes. The TeraStation 3430DN platform supports iSCSI target functionality for compatible network storage deployments.
