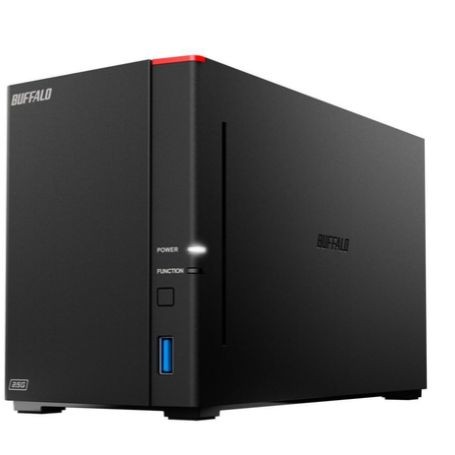

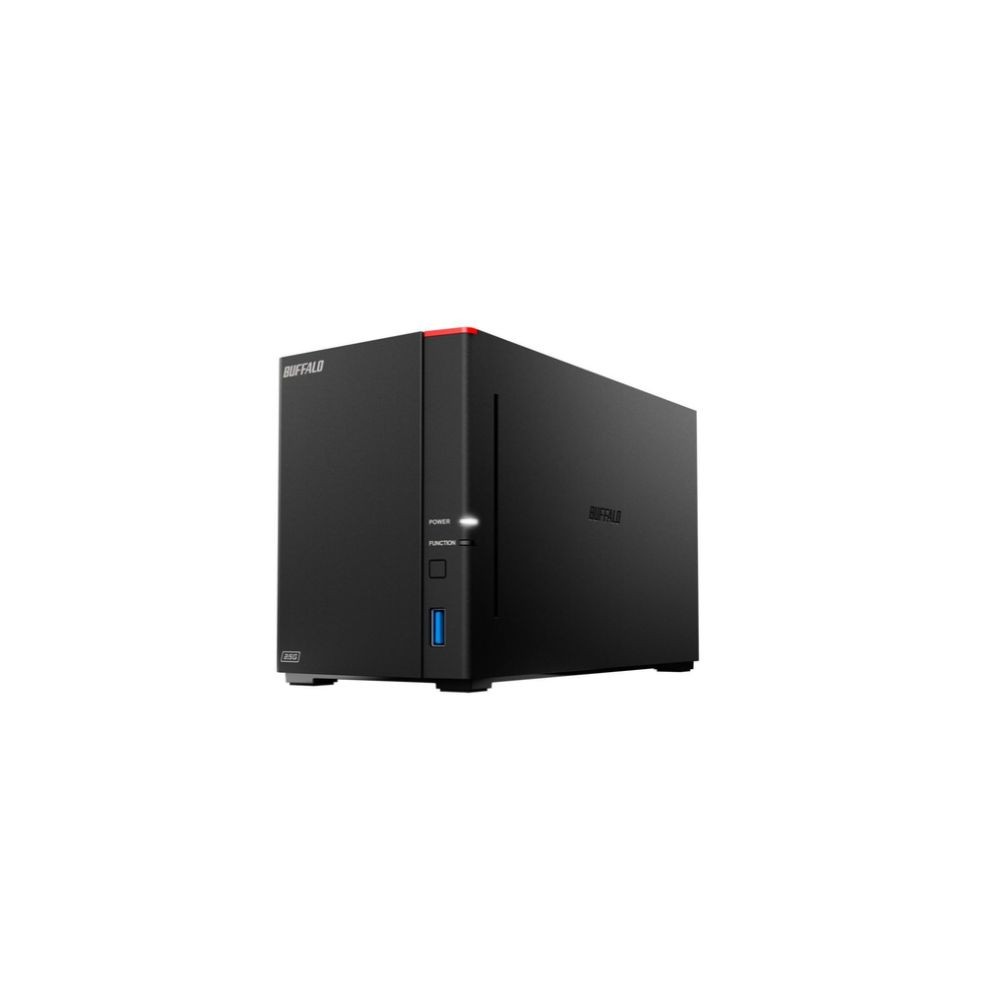

BUFFALO LS720D0802B – LinkStation SoHo 700 8TB 2-Bay 2.5GbE NAS
Overview
The BUFFALO LS720D0802B is a LinkStation SoHo 700 desktop NAS with 8TB of installed storage across two 4TB SATA hard drives. It provides two drive bays, native 2.5GbE networking, 2GB of memory, and a hexa-core 1.3GHz processor for centralized file storage and backup in home and small-office environments.
The two installed drives are factory-configured in RAID 1, providing mirrored storage with 4TB of usable capacity. RAID 0 and JBOD modes are also supported for deployments requiring alternative storage configurations.
Technical Information
The LS720D0802B uses SATA 6Gbps drive interfaces and provides one RJ-45 2.5GBASE-T network port. The Ethernet interface supports 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps operation, allowing the NAS to connect to existing Ethernet infrastructure while providing a multi-gigabit network interface.
Two USB 3.2 Gen 1 Type-A ports support interface rates up to 5Gbps, while one USB 2.0 Type-A port supports up to 480Mbps. The NAS supports SMB/CIFS and FTP/FTPS network file services and uses TCP/IP networking.
Compatibility
The LS720D0802B supports Ethernet networks using 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T. Buffalo lists compatibility with Windows 10, Windows 8.1, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, and macOS 10.12 or later.
The system includes two installed 4TB hard drives and supports Buffalo replacement drives including the OP-HD4.0BST-3Y 4TB model. The USB interfaces are intended for compatible NAS peripherals rather than direct computer connection.
Key Features
- 8TB total storage using 2 × 4TB SATA hard drives
- Two-bay NAS with factory RAID 1 configuration
- Supports RAID 0, RAID 1, and JBOD storage modes
- 2.5GBASE-T RJ-45 networking with 10/100/1000/2500Mbps support
- Two USB 3.2 Gen 1 Type-A ports plus one USB 2.0 Type-A port
Applications
- Centralized file storage for home and small-office networks
- Network backup and shared data repositories
- Multi-gigabit Ethernet storage deployments
- Mirrored storage using RAID 1 for drive redundancy
- Shared storage for compatible Windows and Mac systems
DC Supplies Product Note
The LS720D0802B is supplied with two 4TB hard drives already installed and configured in RAID 1. This provides 4TB of usable mirrored storage while maintaining a second copy of stored data on the paired drive.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS720D0802B |
| Product Type | 2-Bay Desktop NAS |
| Series | LinkStation SoHo 700 |
| Model | LinkStation SoHo 720DB |
| Total Storage Capacity | 8TB |
| Installed Drives | 2 × 4TB HDD |
| Drive Bays | 2 |
| Drive Interface | SATA 6Gbps |
| Supported RAID | RAID 0, RAID 1, JBOD |
| Factory RAID Configuration | RAID 1 |
| Usable Capacity in RAID 1 | 4TB |
| Processor | Hexa-core 1.3GHz CPU |
| Memory | 2GB |
| Network Interface | 1 × 2.5GBASE-T RJ-45 |
| Ethernet Speeds | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, FTP/FTPS |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A; 1 × USB 2.0 Type-A |
| USB Transfer Rates | 5Gbps USB 3.2; 480Mbps USB 2.0 |
| Maximum Power Consumption | 48W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 5–40°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 8.1 × 3.6 × 5 in (L × W × H) |
| Weight | 5.1 lb |
| Country of Origin | Japan |
| Warranty | 3 years |
FAQs
How much storage is included with the LS720D0802B?
The LS720D0802B includes 8TB of total installed storage using two 4TB hard drives.
What is the factory RAID configuration?
The two installed drives are preconfigured in RAID 1, providing 4TB of usable mirrored storage.
What RAID modes are supported?
The LS720D0802B supports RAID 0, RAID 1, and JBOD configurations.
What network speed does the LS720D0802B support?
It provides one 2.5GBASE-T RJ-45 port supporting 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet operation.
Which replacement drives are available for this model?
Buffalo lists the OP-HD4.0BST-3Y 4TB replacement hard drive among the compatible replacement drives for the LinkStation SoHo 700 series.
