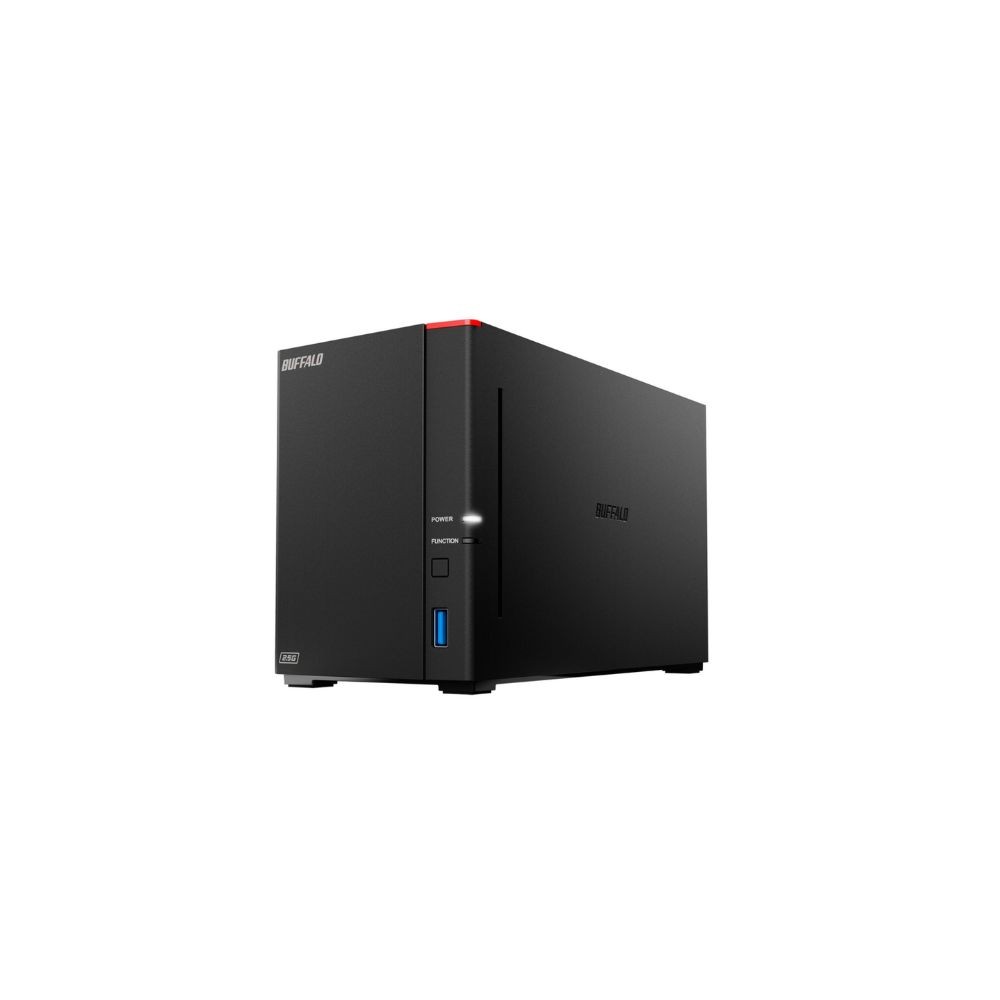

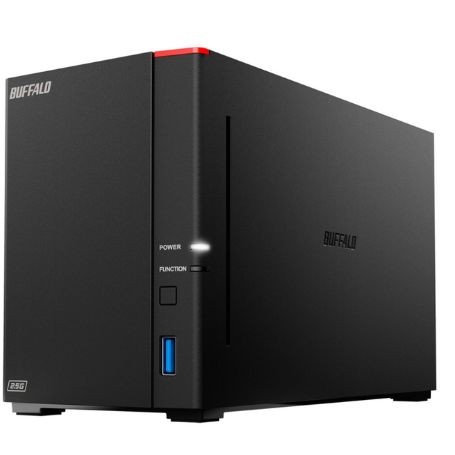

BUFFALO LS720D0402B – LinkStation SoHo 700 4TB 2-Bay 2.5GbE NAS
Overview
The BUFFALO LS720D0402B is a LinkStation SoHo 700 desktop NAS with 4TB of installed storage across two 2TB SATA hard drives. It provides two drive bays, 2.5GbE networking, 2GB of memory, and a hexa-core 1.3GHz processor for centralized file storage and backup in home-office and small-office environments.
The system ships with the two installed drives configured in RAID 1, providing a mirrored 2TB usable storage capacity. RAID 0 and JBOD modes are also supported when different storage configurations are required.
Technical Information
The LS720D0402B uses SATA 6Gbps drive interfaces and provides one RJ-45 2.5GBASE-T network port. The Ethernet interface supports 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps operation, allowing the NAS to operate on both multi-gigabit and conventional Ethernet networks.
Two USB 3.2 Gen 1 Type-A ports provide interface rates up to 5Gbps, while one USB 2.0 Type-A port supports up to 480Mbps. The USB interfaces are intended for compatible peripherals and NAS functions rather than direct computer connection.
Compatibility
The LS720D0402B supports TCP/IP networking and SMB/CIFS and FTP/FTPS network file services. Its 2.5GBASE-T interface is backward compatible with 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet.
Buffalo documentation lists compatibility with Windows 10, Windows 8.1, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, and macOS 10.12 or later. Buffalo also lists the OP-HD2.0BST-3Y 2TB drive as a direct replacement drive for the LS720D0402B.
Key Features
- 4TB total capacity using 2 × 2TB SATA hard drives
- Two-bay desktop NAS with factory RAID 1 configuration
- Supports RAID 0, RAID 1, and JBOD storage modes
- 2.5GBASE-T RJ-45 networking with 10/100/1000/2500Mbps support
- Two USB 3.2 Gen 1 Type-A ports plus one USB 2.0 Type-A port
Applications
- Centralized file storage for home and small-office networks
- Network backup and shared data repositories
- Multi-gigabit Ethernet storage deployments
- Mirrored storage using RAID 1 for drive redundancy
- Local file access and backup for compatible Windows and Mac systems
DC Supplies Product Note
The LS720D0402B is supplied with two 2TB hard drives already installed and configured in RAID 1. This provides 2TB of usable mirrored storage rather than exposing the full 4TB as a single non-redundant volume.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS720D0402B |
| Product Type | 2-Bay Desktop NAS |
| Series | LinkStation SoHo 700 |
| Total Storage Capacity | 4TB |
| Installed Drives | 2 × 2TB HDD |
| Drive Bays | 2 |
| Drive Interface | SATA 6Gbps |
| Supported RAID | RAID 0, RAID 1, JBOD |
| Factory RAID Configuration | RAID 1 |
| Processor | Hexa-core 1.3GHz CPU |
| Memory | 2GB |
| Network Interface | 1 × 2.5GBASE-T RJ-45 |
| Ethernet Speeds | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, FTP/FTPS |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A; 1 × USB 2.0 Type-A |
| USB Transfer Rates | 5Gbps USB 3.2; 480Mbps USB 2.0 |
| Maximum Power Consumption | 48W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 5–40°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 8.1 × 3.6 × 5 in (L × W × H) |
| Weight | 5.1 lb |
| Country of Origin | Japan |
| Warranty | 3 years |
FAQs
How much storage is included with the LS720D0402B?
The LS720D0402B includes 4TB of total installed storage using two 2TB hard drives.
What is the factory RAID configuration?
The two installed drives are configured in RAID 1 at shipment, providing 2TB of usable mirrored storage.
What RAID modes does the LS720D0402B support?
The NAS supports RAID 0, RAID 1, and JBOD configurations.
What network speed does the LS720D0402B support?
It provides one 2.5GBASE-T RJ-45 port supporting 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet operation.
Which replacement drive is specified for this model?
Buffalo lists the OP-HD2.0BST-3Y 2TB replacement hard drive as a direct replacement for the LS720D0402B.
