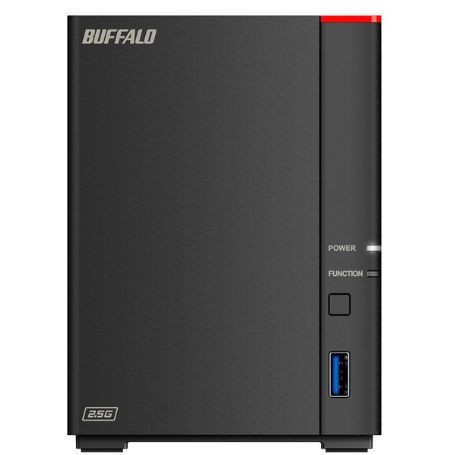

BUFFALO LS720D0802 – LinkStation 720 8TB 2-Bay 2.5GbE NAS
Overview
The BUFFALO LS720D0802 is a LinkStation 720 two-bay network-attached storage system with two installed 4TB hard drives for 8TB of total raw capacity. It combines 2.5GbE networking with a hexa-core processor and 2GB of memory for centralized storage, backup, file sharing, and compatible media applications.
The system ships configured in RAID 1, providing 4TB of nominal usable capacity through mirrored storage. RAID 0 and Normal mode are also supported when the deployment requires combined capacity or separate drive volumes.
Technical Information
The LS720D0802 uses two SATA 6Gbps internal drive interfaces and a hexa-core 1.3GHz CPU with 2GB of memory. Its single RJ-45 network port supports 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T operation with AUTO-MDIX.
Network services include TCP/IP, SMB/CIFS, FTP, and HTTP/HTTPS. The system also supports DLNA and DTCP-IP for compatible media and digital-content environments.
Three USB Type-A ports are provided, consisting of two USB 3.2 Gen 1 ports and one USB 2.0 port. Buffalo specifies these interfaces for peripheral devices and specifically states that they cannot be used for a direct computer-to-NAS connection.
Compatibility
The LS720D0802 is designed for wired Ethernet networks supporting 2.5Gbps, 1000Mbps, 100Mbps, or 10Mbps connections. A compatible 2.5GbE network switch and client interface are required to operate at the maximum 2.5Gbps rate.
Buffalo identifies compatibility with Windows computers, Intel-based Mac computers, iPhone, iPad, iPod touch, and Android devices when used with compatible network infrastructure. The NAS also supports Windows backup and macOS Time Machine workflows.
Key Features
- 8TB total installed capacity using two 4TB hard drives
- 2.5GbE RJ-45 networking with 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps support
- Hexa-core 1.3GHz processor with 2GB memory
- Factory-configured RAID 1 with RAID 0 and Normal mode support
- Two USB 3.2 Gen 1 ports plus one USB 2.0 Type-A port
Applications
- Centralized file storage for home-office and small-business networks
- High-speed file transfers over 2.5GbE infrastructure
- RAID 1 mirrored storage for drive-level redundancy
- Windows and macOS backup storage
- DLNA and DTCP-IP media storage and serving
DC Supplies Product Note
The LS720D0802 is the exact 8TB configuration of the LinkStation 720 series and contains two 4TB drives. Buffalo specifies RAID 1 as the factory configuration, providing 4TB of nominal usable capacity; RAID 1 protects against failure of one drive but does not replace a separate backup.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS720D0802 |
| Product Type | 2-Bay Network Attached Storage |
| Product Series | LinkStation 720 |
| Form Factor | Desktop |
| Total Installed Capacity | 8TB |
| Installed Drives | 2 × 4TB HDD |
| Drive Bays | 2 |
| Drive Interface | SATA 6Gbps |
| Supported RAID Modes | RAID 1, RAID 0, Normal |
| Factory RAID Configuration | RAID 1 |
| RAID 1 Usable Capacity | 4TB |
| RAID 0 Usable Capacity | 8TB |
| Normal Mode Capacity | 4TB × 2 |
| Processor | Hexa-core 1.3GHz CPU |
| Memory | 2GB |
| Network Interface | 1 × RJ-45 2.5GBASE-T |
| Network Speeds | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Standards | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, FTP, HTTP/HTTPS |
| USB Interfaces | 2 × USB 3.2 Gen 1, 1 × USB 2.0 |
| USB Connector | USB Type-A |
| USB Data Rates | 5Gbps / 480Mbps |
| Media Standards | DLNA, DTCP-IP |
| Hot Swap | Not supported |
| Maximum Power Consumption | 36W |
| Power Supply | AC 100V, 50/60Hz |
| Operating Temperature | 5–40°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 92 × 128 × 207mm (W × H × D) |
| Weight | Approx. 2.3kg |
| Country of Origin | Japan |
| Warranty | 1 year |
FAQs
What is the storage capacity of the BUFFALO LS720D0802?
The LS720D0802 contains two installed 4TB hard drives for 8TB of total raw storage capacity.
What RAID configuration does the LS720D0802 use?
The LS720D0802 is shipped with RAID 1 enabled. It also supports RAID 0 and Normal mode.
How much usable storage is available in RAID 1?
RAID 1 provides 4TB of nominal usable capacity from the two installed 4TB drives, before filesystem overhead.
Does the LS720D0802 support 2.5GbE?
Yes. Its RJ-45 network interface supports 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
How much memory does the LS720D0802 have?
The LS720D0802 has 2GB of memory and a hexa-core 1.3GHz processor.
Does the LS720D0802 support hot-swapping?
No. Buffalo specifies that the drives cannot be replaced while the NAS is powered on. The system should be powered off before drive replacement.
