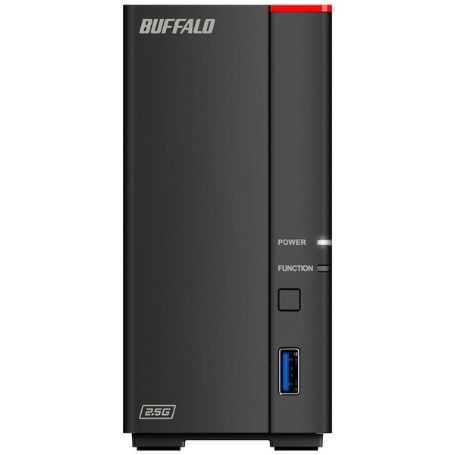

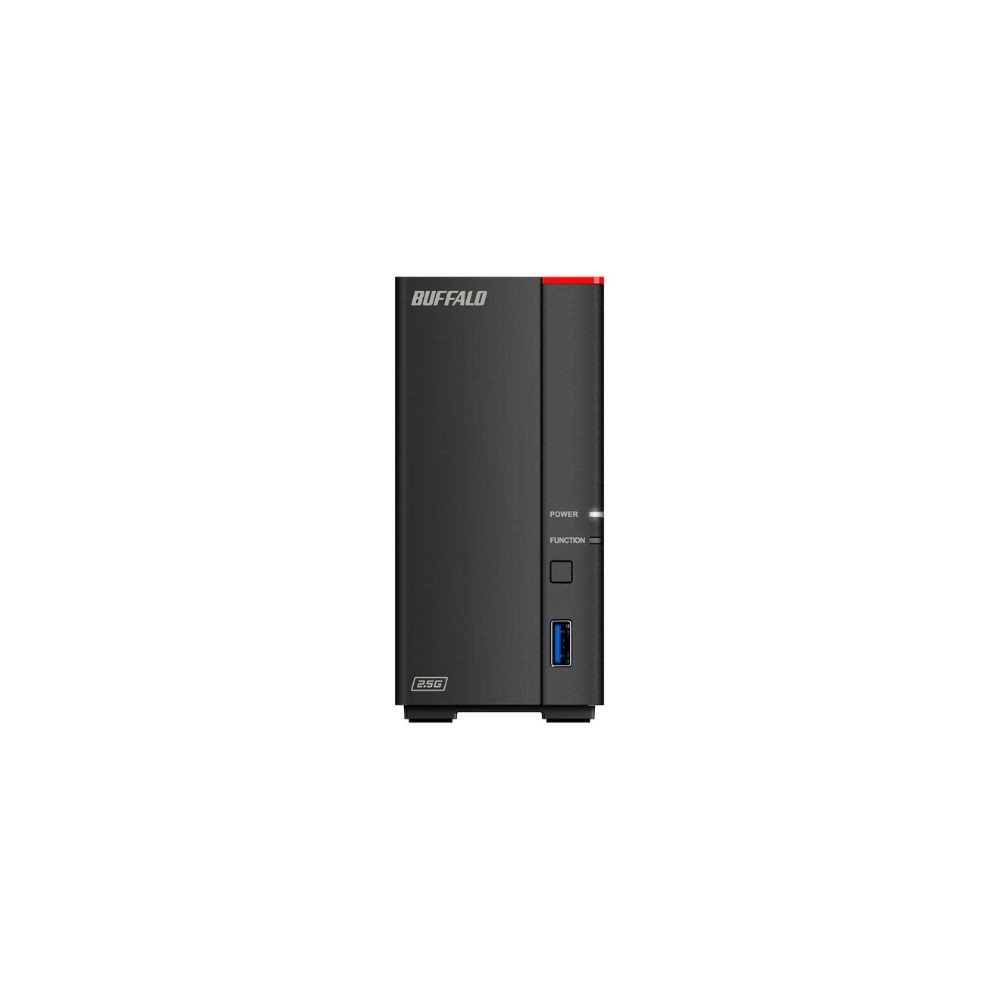

BUFFALO LS710D0801 – LinkStation 710 8TB 1-Bay 2.5GbE NAS
Overview
The BUFFALO LS710D0801 is an 8TB LinkStation 710 network-attached storage system with one installed hard drive and one internal drive bay. It is designed for centralized file storage, network sharing, backup, and compatible media-serving applications.
The system combines a hexa-core 1.3GHz processor with 2GB of memory and a 2.5GbE RJ-45 network interface. Its single-drive architecture does not support RAID, making it suited to deployments where one internal storage volume is sufficient.
Technical Information
The LS710D0801 uses a SATA 6Gbps interface for its installed 8TB drive. The single RJ-45 network port supports 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T operation with AUTO-MDIX.
Network services include TCP/IP, SMB/CIFS, FTP, and HTTP/HTTPS. Buffalo also identifies DLNA and DTCP-IP support for compatible digital-content environments.
Three USB Type-A ports are provided: two USB 3.2 Gen 1 ports and one USB 2.0 port. The USB ports are intended for supported peripherals and are not designed for direct computer-to-NAS connections.
Compatibility
The LS710D0801 is designed for wired Ethernet networks and can operate at 2.5Gbps, 1Gbps, 100Mbps, or 10Mbps depending on the connected network equipment. A 2.5GbE-capable switch and client interface are required to operate at the highest supported network speed.
Buffalo identifies compatibility with Windows PCs and Intel-based Mac computers, as well as supported iPhone, iPad, iPod touch, and Android devices within compatible network environments.
Key Features
- 8TB installed storage in a single-bay LinkStation 710 chassis
- 2.5GbE RJ-45 networking with multi-gigabit and Gigabit Ethernet support
- Hexa-core 1.3GHz processor with 2GB memory
- Two USB 3.2 Gen 1 ports and one USB 2.0 Type-A port
- DLNA and DTCP-IP support for compatible media applications
Applications
- Centralized storage for home-office and small-business networks
- High-speed file transfers over 2.5GbE infrastructure
- Network backup and shared file storage
- Media serving to compatible DLNA-enabled devices
- Personal network storage where internal RAID is not required
DC Supplies Product Note
The LS710D0801 is specifically the 8TB configuration of the LinkStation 710 1-bay series. The exact MPN should be retained when matching this unit because the LS710D range also includes 2TB and 4TB configurations with the same general platform.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS710D0801 |
| Product Type | 1-Bay Network Attached Storage |
| Product Series | LinkStation 710 |
| Form Factor | Desktop |
| Installed Capacity | 8TB |
| Installed Drives | 1 × 8TB HDD |
| Drive Bays | 1 |
| Drive Interface | SATA 6Gbps |
| Supported RAID | N/A |
| Processor | Hexa-core 1.3GHz CPU |
| Memory | 2GB |
| Network Interface | 1 × RJ-45 2.5GBASE-T |
| Network Speeds | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Standards | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, FTP, HTTP/HTTPS |
| USB Interfaces | 2 × USB 3.2 Gen 1, 1 × USB 2.0 |
| USB Connector | USB Type-A |
| USB Data Rates | 5Gbps / 480Mbps |
| Media Standards | DLNA, DTCP-IP |
| Maximum Power Consumption | 36W |
| Power Supply | AC 100V, 50/60Hz |
| Operating Temperature | 5–40°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 60 × 128 × 207mm (W × H × D) |
| Weight | Approx. 1.3kg |
| Country of Origin | Japan |
| Warranty | 1 year |
FAQs
What is the storage capacity of the BUFFALO LS710D0801?
The LS710D0801 includes one installed 8TB hard drive.
Does the LS710D0801 support 2.5GbE?
Yes. It has one RJ-45 2.5GBASE-T port supporting 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Does the LS710D0801 support RAID?
No. The LinkStation 710 has one internal drive bay and does not support RAID configurations.
How much memory does the LS710D0801 have?
The LS710D0801 has 2GB of memory and uses a hexa-core 1.3GHz processor.
How many USB ports are provided?
The LS710D0801 provides two USB 3.2 Gen 1 Type-A ports and one USB 2.0 Type-A port.
Can the USB ports connect the NAS directly to a computer?
No. Buffalo specifies the USB ports for supported peripheral devices; they are not intended for direct computer-to-NAS connections.
