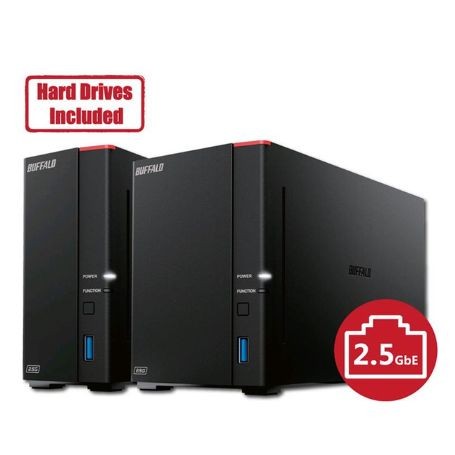

BUFFALO LS710D0201 – LinkStation 710 2TB 1-Bay 2.5GbE NAS
Overview
The BUFFALO LS710D0201 is a LinkStation 710 1-bay network-attached storage system with a 2TB internal hard drive. It is designed for centralized file storage, network sharing, backup, and multimedia access in home-office and small-business environments.
The system combines a hexa-core 1.3GHz processor and 2GB of memory with a 2.5GbE RJ-45 network interface. Its single-drive architecture does not provide RAID, while the storage interface uses SATA 6Gbps.
Technical Information
The LS710D0201 supports 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet connections through one RJ-45 port with AUTO-MDIX. Supported network protocols include TCP/IP, while Buffalo lists SMB/CIFS and FTP/FTPS among the network file services for the LinkStation 710 series.
Three USB Type-A ports are provided: two USB 3.2 Gen 1 ports with a maximum interface rate of 5Gbps and one USB 2.0 port with a maximum interface rate of 480Mbps. Buffalo specifies these USB ports for peripheral-device connectivity rather than direct computer-to-NAS connection.
The LinkStation 710 also supports DLNA and DTCP-IP functions for compatible media and digital-content environments. Actual network and storage performance depends on the connected infrastructure, client hardware, file workload, and configuration.
Compatibility
The LS710D0201 is intended for wired Ethernet networks supporting 10Mbps, 100Mbps, 1Gbps, or 2.5Gbps connections. A 2.5GbE-capable network switch and compatible client interface are required to use the highest supported Ethernet rate.
Buffalo identifies compatibility with Windows PCs and Intel-based Mac computers, while mobile-device access is supported through compatible iPhone, iPad, iPod touch, and Android devices when the required network environment is available.
Key Features
- 2TB installed storage in a single-bay NAS chassis
- 2.5GbE RJ-45 networking with 10/100/1000Mbps and 2.5Gbps support
- Hexa-core 1.3GHz processor with 2GB memory
- Two USB 3.2 Gen 1 ports plus one USB 2.0 port
- DLNA and DTCP-IP support for compatible digital-content applications
Applications
- Centralized file storage for home-office and small-business networks
- High-speed file transfers over 2.5GbE infrastructure
- Network backup and shared storage for compatible computers
- Media serving to compatible DLNA-enabled devices
- Personal network storage where a single internal drive is sufficient
DC Supplies Product Note
The LS710D0201 is specifically the 2TB 1-bay configuration of the LinkStation 710 series. Because it has only one internal drive bay and no supported RAID level, it should not be selected where internal drive mirroring is a required storage-protection method.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS710D0201 |
| Product Type | 1-Bay Network Attached Storage |
| Product Series | LinkStation 710 |
| Form Factor | Desktop |
| Installed Capacity | 2TB |
| Drive Bays | 1 |
| Drive Interface | SATA 6Gbps |
| Supported RAID | N/A |
| Processor | Hexa-core 1.3GHz CPU |
| Memory | 2GB |
| Network Interface | 1 × RJ-45 2.5GBASE-T |
| Network Speeds | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Standards | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 |
| Network Protocol | TCP/IP |
| Network File Services | SMB/CIFS, FTP/FTPS |
| USB Interfaces | 2 × USB 3.2 Gen 1, 1 × USB 2.0 |
| USB Data Rates | 5Gbps / 480Mbps |
| USB Connector | USB Type-A |
| Media Standards | DLNA, DTCP-IP |
| Maximum Power Consumption | 24W |
| Power Supply | AC 100V, 50/60Hz |
| Operating Temperature | 5–40°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 60 × 128 × 207mm (W × H × D) |
| Weight | Approx. 1.3kg |
| Country of Origin | Japan |
| Warranty | 1 year |
FAQs
What is the storage capacity of the BUFFALO LS710D0201?
The LS710D0201 includes one installed 2TB hard drive.
Does the LS710D0201 support 2.5GbE?
Yes. It has one RJ-45 2.5GBASE-T port supporting 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
Does the LS710D0201 support RAID?
No. The LinkStation 710 has one internal drive bay and does not support RAID configurations.
How much memory does the LS710D0201 have?
The LS710D0201 has 2GB of memory and a hexa-core 1.3GHz processor.
How many USB ports are provided?
The LS710D0201 has two USB 3.2 Gen 1 Type-A ports and one USB 2.0 Type-A port.
Can the USB ports connect the NAS directly to a computer?
No. Buffalo specifies the USB ports for peripheral-device connectivity; they are not intended for direct computer-to-NAS connection.
