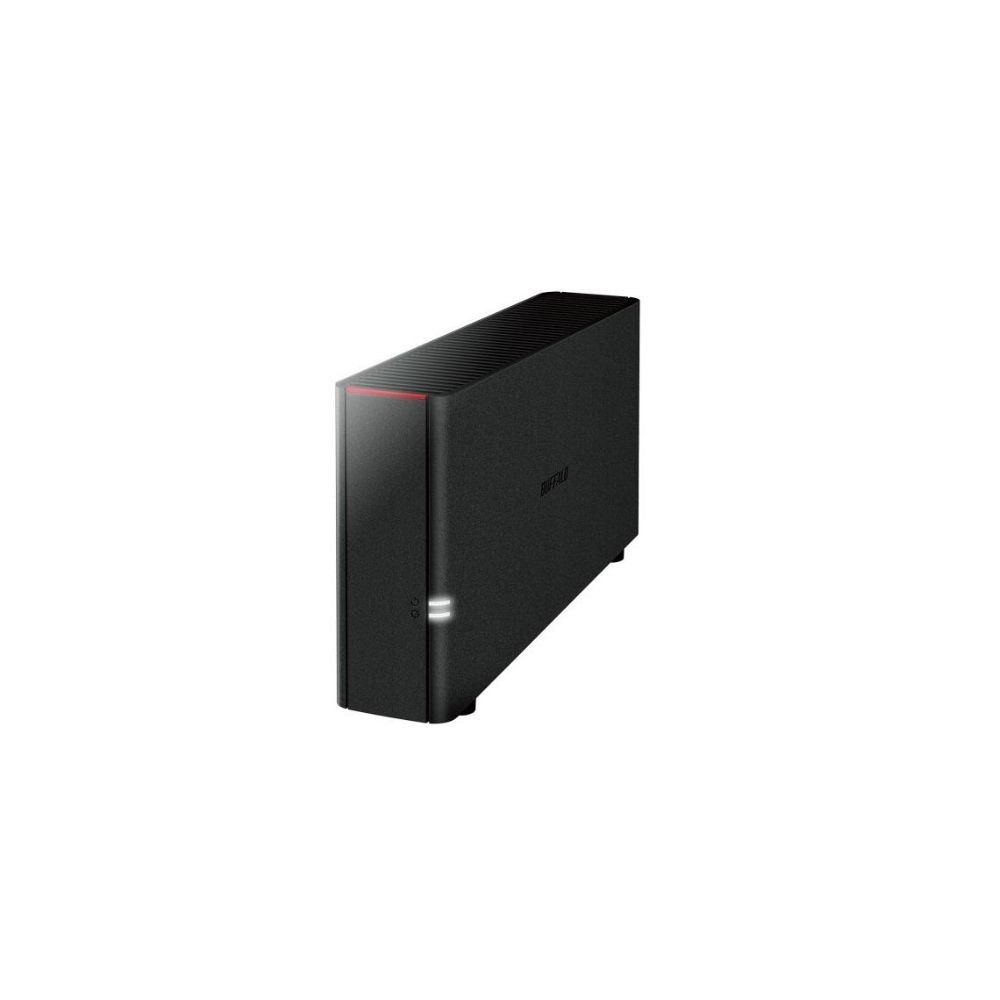

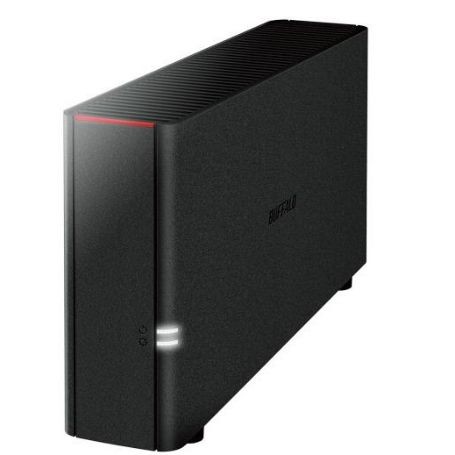

BUFFALO LS210D0601 – LinkStation 210 6TB 1-Bay Gigabit NAS
Overview
The BUFFALO LS210D0601 is a LinkStation 210 network-attached storage system with one installed 6TB hard drive and a single internal drive bay. It provides centralized network storage and file sharing through a Gigabit Ethernet connection for compatible home and small-office environments.
The single-drive design provides 6TB of installed capacity without a RAID configuration. The system supports SMB/CIFS, AFP, HTTP/HTTPS, and FTP network file services and includes one USB 2.0 port for compatible peripherals and backup storage.
Technical Information
The LS210D0601 uses an 800MHz dual-issue ARM processor and 256MB of DDR3 memory. The installed 3.5-inch hard drive connects through a SATA 3Gbps interface.
Network connectivity is provided by one RJ-45 port supporting 10/100/1000Mbps auto-sensing Ethernet and AUTO-MDIX. The USB interface is USB 2.0 with a maximum specification transfer rate of 480Mbps.
Because the LS210D0601 has only one internal drive bay, RAID is not supported. Storage capacity is therefore based on the installed 6TB drive rather than a mirrored or striped disk configuration.
Compatibility
The LS210D0601 is designed for TCP/IP Ethernet networks and supports file access through SMB/CIFS, AFP, HTTP/HTTPS, and FTP. Buffalo documentation identifies compatibility with Windows client and server operating systems and supported Mac OS X environments for this product generation.
The Gigabit Ethernet interface supports standard 10BASE-T, 100BASE-TX, and 1000BASE-T connections. The USB 2.0 port can be used with supported peripherals such as compatible backup storage or printers.
Key Features
- 6TB installed storage with one 3.5-inch SATA hard drive
- Single-bay desktop NAS architecture with no RAID requirement
- Gigabit Ethernet with 10/100/1000Mbps auto-sensing and AUTO-MDIX
- 800MHz dual-issue ARM processor with 256MB DDR3 memory
- One USB 2.0 Type-A port supporting up to 480Mbps interface speed
Applications
- Centralized file storage for home and small-office networks
- Shared documents, photos, videos, and other files over Ethernet
- Network backup for compatible Windows and Mac systems
- Personal cloud-style remote file access using supported Buffalo services
- USB-connected peripheral and backup-storage applications
DC Supplies Product Note
The LS210D0601 is the exact 6TB configuration of the LinkStation 210 single-bay series. Its one-drive architecture means it should not be selected when mirrored RAID 1 protection or multi-drive storage expansion is required.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS210D0601 |
| Product Type | 1-Bay Network Attached Storage |
| Product Series | LinkStation 210 / LinkStation 200 |
| Installed Capacity | 6TB |
| Installed Drives | 1 × 6TB 3.5-inch SATA HDD |
| Drive Bays | 1 |
| Drive Interface | SATA 3Gbps |
| Supported RAID | N/A |
| Processor | 800MHz dual-issue ARM |
| Memory | 256MB DDR3 |
| Network Interface | 1 × RJ-45 Gigabit Ethernet |
| Network Speeds | 10/100/1000Mbps auto-sensing |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, AUTO-MDIX |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, HTTP/HTTPS, FTP |
| USB Interface | 1 × USB 2.0 |
| USB Maximum Data Rate | 480Mbps |
| Maximum Power Consumption | 24W |
| Power Supply | External AC 100–240V, 50/60Hz |
| Operating Temperature | 5–35°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 1.77 × 5.02 × 8.07in (W × H × D) |
| Weight | Approx. 2.43lb |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| Warranty | 2 years |
FAQs
What is the storage capacity of the BUFFALO LS210D0601?
The LS210D0601 includes one installed 6TB hard drive.
How many drive bays does the LS210D0601 have?
The LS210D0601 has one internal 3.5-inch drive bay, which is populated with a 6TB SATA hard drive.
Does the LS210D0601 support RAID?
No. The single-bay LS210D0601 does not support RAID configurations.
Does the LS210D0601 support Gigabit Ethernet?
Yes. The NAS has one RJ-45 Ethernet port supporting 10/100/1000Mbps auto-sensing operation.
How much memory does the LS210D0601 have?
The LS210D0601 has 256MB of DDR3 memory and an 800MHz dual-issue ARM processor.
Does the LS210D0601 have a USB port?
Yes. It provides one USB 2.0 port with a maximum interface specification rate of 480Mbps.
