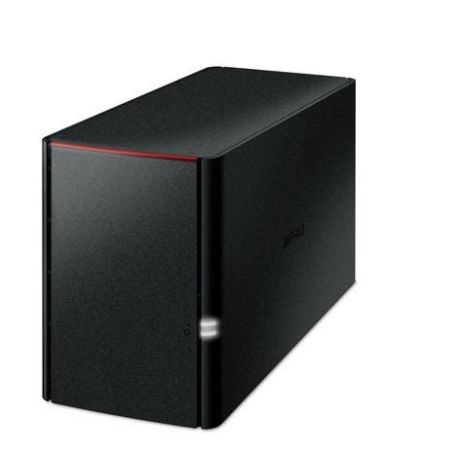

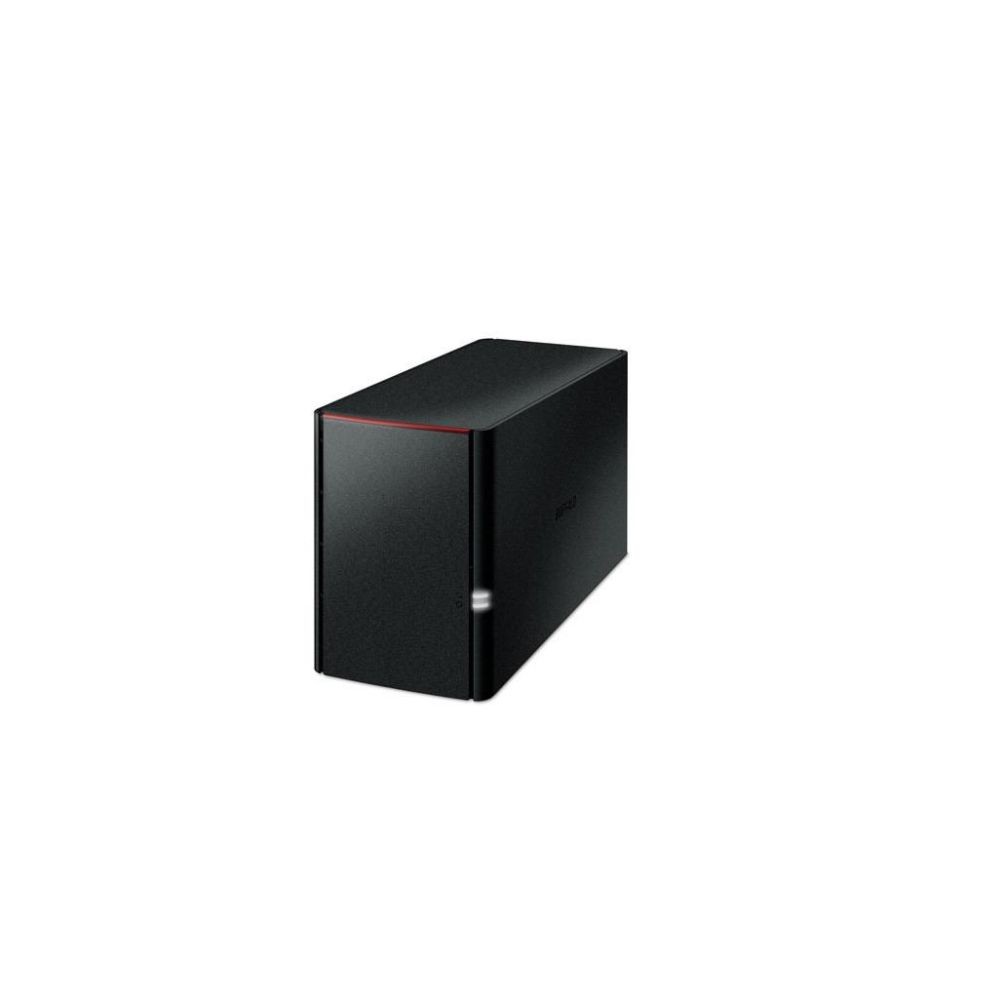

BUFFALO LS220D1202 – LinkStation 220 12TB 2-Bay RAID NAS
Overview
The BUFFALO LS220D1202 is a LinkStation 220 two-bay network-attached storage system with two installed 6TB hard drives providing 12TB of total storage. It is designed for centralized file storage, network sharing, and backup across compatible wired network environments.
The two-drive architecture supports RAID 0, RAID 1, and JBOD configurations. RAID 1 provides a mirrored 6TB usable capacity, while RAID 0 provides up to 12TB of usable capacity before filesystem overhead.
Technical Information
The LS220D1202 uses an 800MHz Marvell Armada 370 dual-issue ARM processor with 256MB of DDR3 memory. The two internal drives use SATA 3Gbps interfaces.
Network connectivity is provided through one RJ-45 Gigabit Ethernet port supporting 10/100/1000Mbps auto-sensing operation and AUTO-MDIX. Supported network services include CIFS/SMB, AFP, HTTP/HTTPS, and FTP.
The system also provides one USB 2.0 port with a maximum interface data rate of 480Mbps. Actual transfer performance depends on the connected device and operating environment.
Compatibility
The LS220D1202 is intended for TCP/IP Ethernet networks and supports file access from compatible Windows and Mac systems through its supported network file services. Buffalo documentation lists support for Windows client and server operating systems and Mac OS X versions supported by the product generation.
The NAS uses a standard RJ-45 Gigabit Ethernet connection rather than a 2.5GbE or 10GbE interface. Network performance is therefore bounded by the available Gigabit Ethernet link and the capabilities of the connected network infrastructure.
Key Features
- 12TB total installed capacity with two 6TB hard drives
- 2-bay storage architecture supporting RAID 0, RAID 1, and JBOD
- Gigabit Ethernet with 10/100/1000Mbps auto-sensing and AUTO-MDIX
- 800MHz Marvell Armada 370 dual-issue ARM processor with 256MB DDR3
- One USB 2.0 port with up to 480Mbps interface data rate
Applications
- Centralized file storage for home and small-office networks
- Shared document and media storage over Gigabit Ethernet
- RAID 1 mirrored storage for drive-level redundancy
- Network backup and centralized data storage
- Shared media and personal-cloud style storage applications
DC Supplies Product Note
The exact LS220D1202 is the original LinkStation 220 12TB configuration using two 6TB drives. It should not be substituted with the similarly named LS220D1202B, which is a separate manufacturer part number in the LinkStation SoHo variant.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS220D1202 |
| Product Type | 2-Bay Network Attached Storage |
| Product Series | LinkStation 220 |
| Total Installed Capacity | 12TB |
| Installed Drives | 2 × 6TB |
| Drive Bays | 2 |
| Drive Interface | SATA 3Gbps |
| Supported RAID Levels | RAID 0, RAID 1, JBOD |
| RAID 1 Usable Capacity | 6TB |
| RAID 0 Usable Capacity | 12TB |
| Processor | Marvell Armada 370, 800MHz dual-issue ARM |
| Memory | 256MB DDR3 |
| Network Interface | 1 × RJ-45 Gigabit Ethernet |
| Network Speeds | 10/100/1000Mbps auto-sensing |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, AUTO-MDIX |
| Supported Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, HTTP/HTTPS, FTP |
| USB Interface | 1 × USB 2.0 |
| USB Maximum Data Rate | 480Mbps |
| Maximum Power Consumption | 48W |
| Power Supply | External AC 100–240V, 50/60Hz |
| Operating Temperature | 5–35°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 8.07 × 3.42 × 5.02in |
| Weight | 5.5lb |
| Country of Origin | Japan |
| Warranty | 2 years |
FAQs
What is the storage capacity of the BUFFALO LS220D1202?
The LS220D1202 includes two 6TB hard drives for 12TB of total installed storage.
Which RAID modes does the LS220D1202 support?
The LS220D1202 supports RAID 0, RAID 1, and JBOD.
How much storage is available in RAID 1?
With two 6TB drives configured as RAID 1, the nominal usable capacity is 6TB before filesystem overhead.
Does the LS220D1202 support Gigabit Ethernet?
Yes. It has one RJ-45 Ethernet port supporting 10/100/1000Mbps auto-sensing operation.
How much memory does the LS220D1202 have?
The LS220D1202 has 256MB of DDR3 memory and uses an 800MHz Marvell Armada 370 dual-issue ARM processor.
Does the LS220D1202 have USB connectivity?
Yes. The system provides one USB 2.0 port with a maximum interface data rate of 480Mbps.
