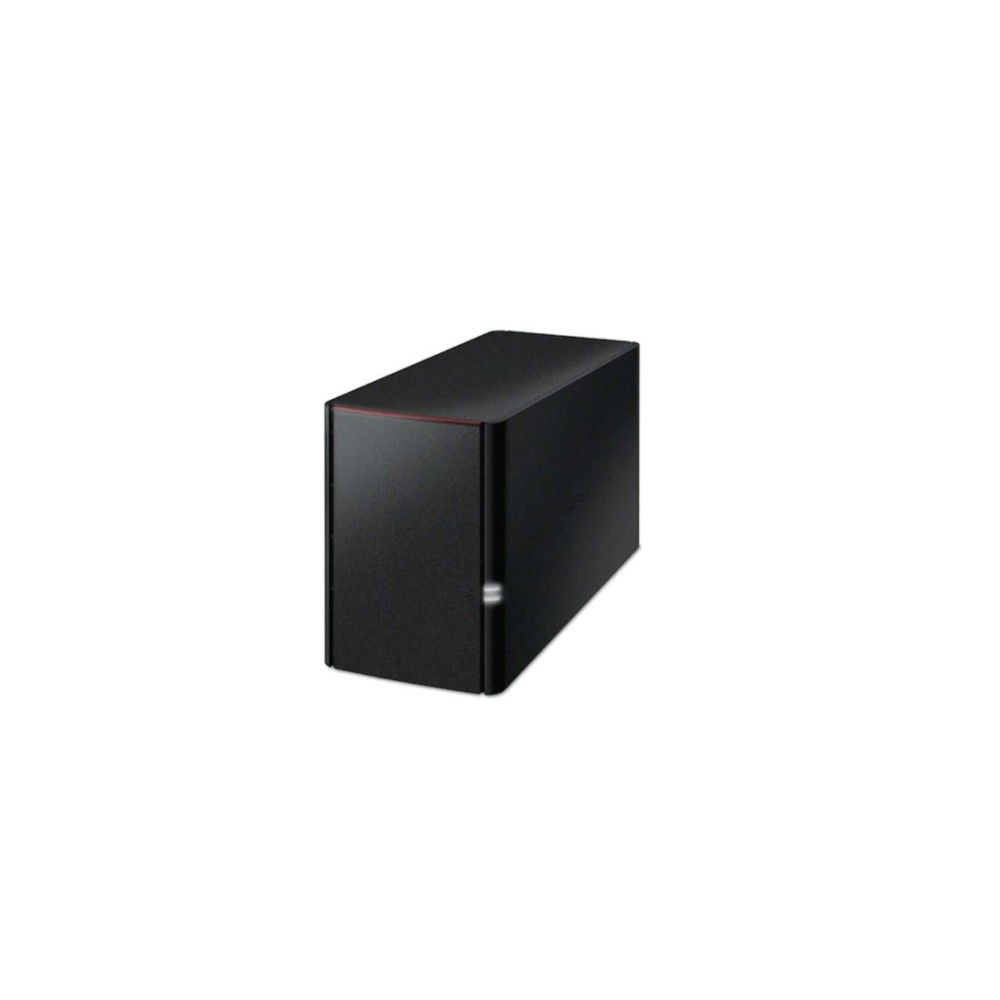

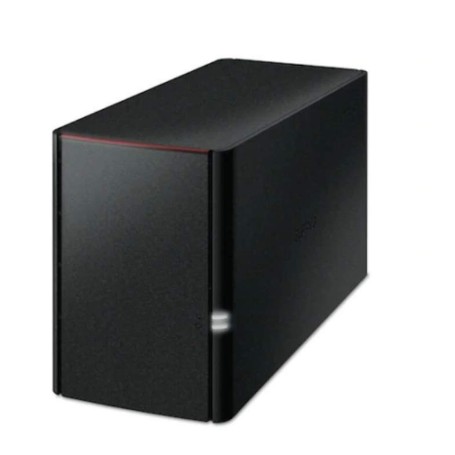

BUFFALO LS220D0802 – LinkStation 220 8TB 2-Bay RAID NAS
Overview
The BUFFALO LS220D0802 is a LinkStation 220 network-attached storage system with two installed 4TB hard drives providing 8TB of total storage. The 2-bay design supports RAID 0, RAID 1, and JBOD configurations for shared network storage and data protection requirements.
The system connects to the network through a single Gigabit Ethernet RJ-45 interface and provides SMB/CIFS, AFP, FTP/FTPS, and TCP/IP network services. A USB 2.0 Type-A port supports compatible peripheral devices and direct-copy functions.
Technical Information
The LS220D0802 uses an 800 MHz dual-issue ARM processor with 256MB DDR3 memory and SATA 3Gbps interfaces for its two internal drives. Its Gigabit Ethernet interface supports 10/100/1000 Mbps auto-sensing operation with AUTO-MDIX.
Supported RAID modes include RAID 0 for combined capacity and performance, RAID 1 for mirrored storage, and JBOD for treating the installed drives as separate storage. With two 4TB drives installed, the system provides 8TB total capacity in RAID 0 or JBOD configurations, while RAID 1 uses one drive's capacity for mirrored protection.
Compatibility
The LS220D0802 is designed for wired network environments using standard Ethernet connectivity and TCP/IP. Compatible client systems can access shared storage through the supported network file services. The USB port is intended for peripheral devices and is not designed for direct connection to a computer.
Key Features
- 8TB total storage with two installed 4TB hard drives
- 2-bay architecture supporting RAID 0, RAID 1, and JBOD
- Gigabit Ethernet with 10/100/1000 Mbps auto-sensing
- 800 MHz dual-issue ARM processor with 256MB DDR3 memory
- USB 2.0 Type-A port for compatible peripheral devices and direct-copy operations
Applications
- Centralized file storage on small wired networks
- Shared documents and media between network-connected computers
- RAID 1 mirrored storage for applications requiring drive redundancy
- Network backup and shared storage for home and small-office environments
- Direct transfer of supported USB storage and compatible imaging devices
DC Supplies Product Note
The LS220D0802 is a legacy 8TB LinkStation 220 model with two populated drive bays. For deployments where continued manufacturer support, newer operating-system compatibility, or current-generation NAS features are required, verify platform support before selecting this discontinued model.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS220D0802 |
| Product Type | 2-Bay Network Attached Storage |
| Product Series | LinkStation 220 |
| Total Installed Capacity | 8TB |
| Installed Drives | 2 × 4TB |
| Drive Bays | 2 |
| Drive Interface | SATA 3Gbps |
| Supported RAID | RAID 0, RAID 1, JBOD |
| Processor | 800 MHz dual-issue ARM |
| Memory | 256MB DDR3 |
| Network Interface | 1 × RJ-45 Gigabit Ethernet |
| Network Speeds | 10/100/1000 Mbps |
| Network Protocol | TCP/IP |
| File Services | SMB/CIFS, AFP, FTP/FTPS |
| USB Interface | 1 × USB 2.0 Type-A |
| Maximum Power Consumption | 48W |
| Power Supply | AC 100V, 50/60Hz |
| Operating Temperature | 5–35°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 87 × 127.5 × 205mm (W × H × D) |
| Weight | Approx. 2.5kg |
| Warranty | 1 year |
FAQs
What is the storage capacity of the BUFFALO LS220D0802?
The LS220D0802 has 8TB of total installed storage using two 4TB hard drives.
Which RAID modes does the LS220D0802 support?
The system supports RAID 0, RAID 1, and JBOD.
Does the LS220D0802 have Gigabit Ethernet?
Yes. It has one RJ-45 Ethernet port supporting 10/100/1000 Mbps auto-sensing operation.
Can the USB port connect the NAS directly to a computer?
No. The USB port is intended for compatible peripheral devices and is not a direct computer connection interface.
How many drive bays does the LS220D0802 have?
The LS220D0802 has two internal drive bays, both populated with 4TB drives.
