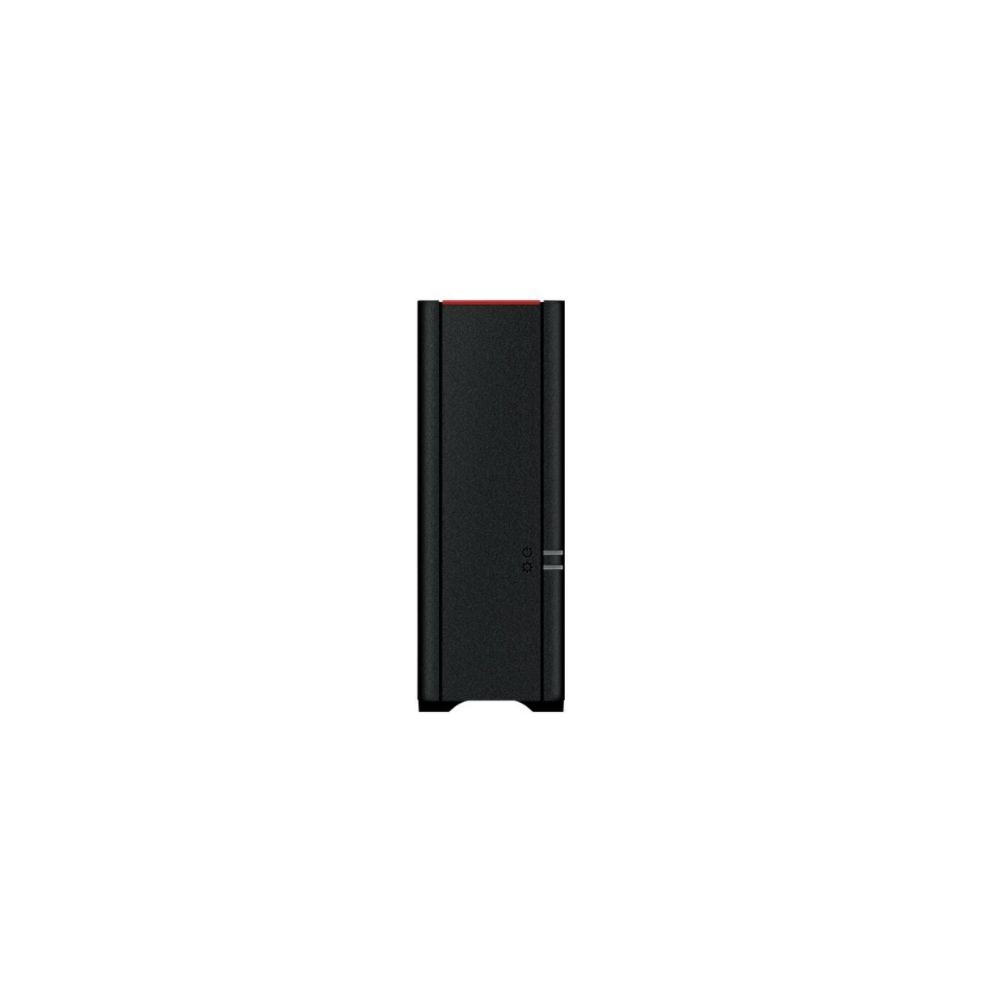

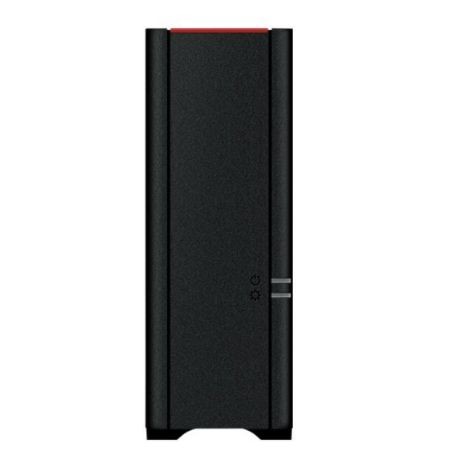

BUFFALO LS210D0201 – LinkStation 210 2TB 1-Bay Gigabit NAS
Overview
The BUFFALO LS210D0201 is a LinkStation 210 network attached storage device with one factory-installed 2TB hard drive. It provides centralized file storage and network file sharing for home and small-office environments through a Gigabit Ethernet connection.
Technical Information
The LS210D0201 uses an 800MHz dual-issue ARM processor and 256MB of DDR3 memory. Its single internal drive uses a SATA 3Gbps interface. The NAS provides one Gigabit Ethernet port supporting 10/100/1000Mbps operation and one USB 2.0 Type-A port for compatible peripherals.
Compatibility
The LS210D0201 supports TCP/IP networking and CIFS/SMB, AFP, HTTP/HTTPS, and FTP file services. Buffalo lists Windows and Mac client compatibility, while the USB port is intended for compatible peripheral devices and external storage rather than direct computer connectivity.
Key Features
- 2TB factory-installed internal hard drive
- Single-bay LinkStation 210 NAS design
- Gigabit Ethernet with 10/100/1000Mbps operation
- 256MB DDR3 memory with 800MHz dual-issue ARM processor
- USB 2.0 Type-A port for compatible peripherals
Applications
The LS210D0201 is suited to centralized file storage, shared documents, personal media storage, PC and Mac backup, and remote file access. Buffalo's WebAccess functionality allows supported files to be accessed remotely from compatible computers and mobile devices.
DC Supplies Product Note
The LS210D0201 is a single-drive NAS and does not support RAID. Its 2TB installed capacity is provided by one internal SATA hard drive, making it appropriate for deployments that do not require multi-drive RAID redundancy.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS210D0201 |
| Product Type | Network Attached Storage (NAS) |
| Series | LinkStation 210 |
| Installed Capacity | 2TB |
| Drive Bays | 1 |
| Installed Drive | 1 x 2TB |
| Drive Interface | SATA 3Gbps |
| Processor | 800MHz Dual-Issue ARM |
| Memory | 256MB DDR3 |
| LAN Interface | 1 x RJ-45 Gigabit Ethernet |
| LAN Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, AUTO-MDIX |
| LAN Speeds | 10/100/1000Mbps |
| Network Protocol | TCP/IP |
| File Services | CIFS/SMB, AFP, HTTP/HTTPS, FTP |
| USB | 1 x USB 2.0 Type-A |
| USB Transfer Rate | Up to 480Mbps |
| RAID | Not applicable |
| Maximum Power Consumption | 18W |
| Power Supply | External AC 100–240V, 50/60Hz |
| Operating Temperature | 5–35°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 8.07 x 1.77 x 5.02 in (L x W x H) |
| Weight | 2.43 lb |
| Country of Origin | Japan |
| Warranty | 2 years |
FAQs
What is the storage capacity of the LS210D0201?
The LS210D0201 includes one factory-installed 2TB internal hard drive.
How many drive bays does the LS210D0201 have?
The LinkStation 210 has one internal drive bay, populated with one 2TB drive in the LS210D0201 configuration.
Does the LS210D0201 support Gigabit Ethernet?
Yes. It provides one RJ-45 Ethernet port supporting 10/100/1000Mbps operation with AUTO-MDIX.
Does the LS210D0201 support RAID?
No. The LS210D0201 is a single-drive LinkStation 210 model, so RAID levels are not applicable.
What USB connectivity is provided?
The NAS provides one USB 2.0 Type-A port for compatible peripheral devices. Buffalo specifies a maximum USB 2.0 transfer rate of 480Mbps.
