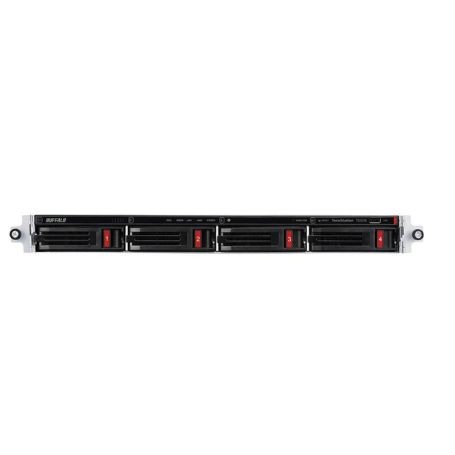

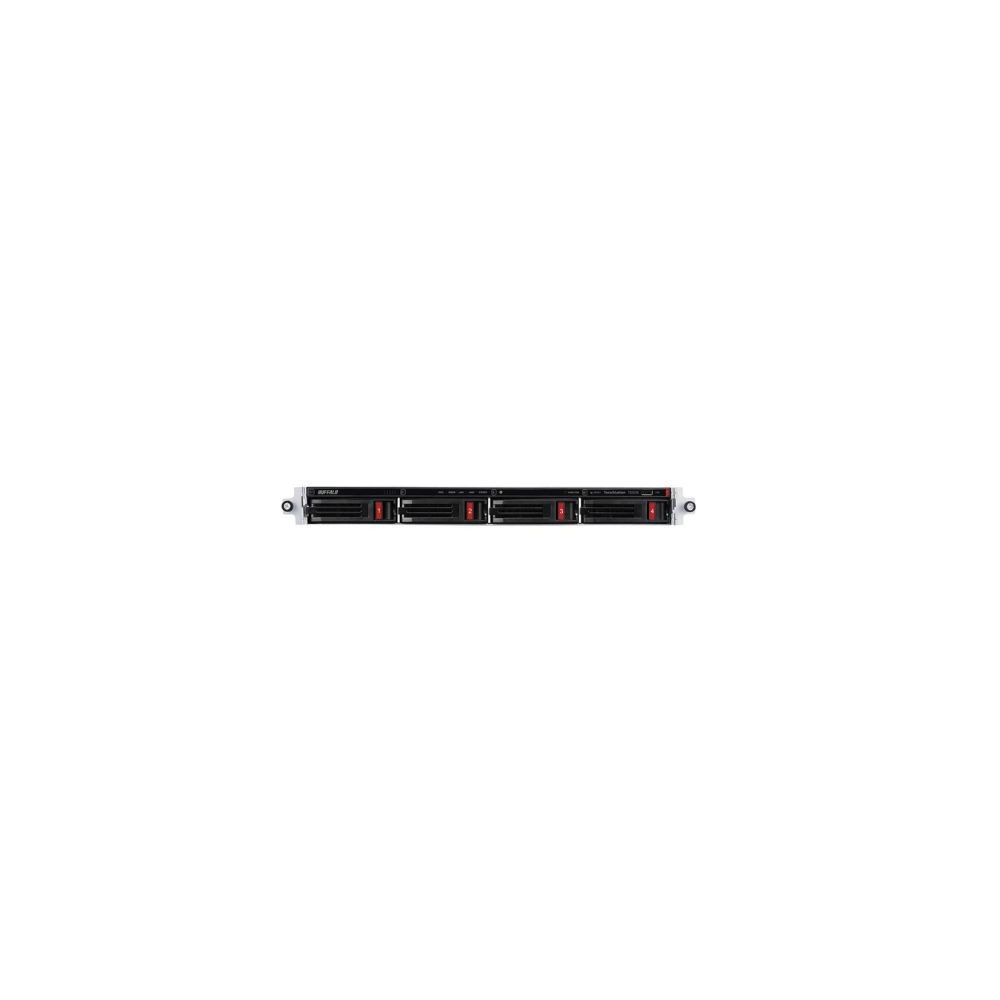

BUFFALO TS3430RN0804 – TeraStation 3430RN 8TB 4-Bay 1U Rackmount NAS
Overview
The BUFFALO TS3430RN0804 is a TeraStation 3430RN 1U rackmount NAS configured with four 2TB NAS-dedicated hard drives for 8TB of installed storage. The four-bay platform is designed for small-office and business environments requiring centralized network storage, file sharing, backup, and rack-mounted deployment.
Technical Information
The TS3430RN0804 uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor and 2GB of DDR4 memory. The four internal SATA 6Gbps drive bays support RAID 0, 1, 5, 6, 10, and JBOD. Buffalo specifies RAID 6 as the factory configuration for the TS3430RN series.
Network connectivity includes one 2.5GbE RJ-45 port and one 1GbE RJ-45 port. The 2.5GbE interface supports multi-gigabit Ethernet while maintaining compatibility with lower-speed Ethernet connections. The system also provides two USB 3.2 Gen 1 Type-A ports and one USB 2.0 port.
Compatibility
The TS3430RN0804 supports SMB/CIFS, AFP, FTP, FTPS, SFTP, NFS, TCP/IP, and iSCSI services. Buffalo also supports Active Directory integration, cloud storage services, UPS connectivity, and SNMP monitoring. The 1U chassis is intended for standard rack-mounted network storage deployments.
Key Features
- 8TB installed capacity from four 2TB NAS-dedicated HDDs
- Four-bay 1U rackmount chassis with factory RAID 6
- 2.5GbE and 1GbE RJ-45 network connectivity
- 2GB DDR4 memory with 2.0GHz quad-core AL-524 processor
- RAID 0, 1, 5, 6, 10, and JBOD support with hot swapping
Applications
The TS3430RN0804 is suited to rack-based file storage, centralized backup, departmental file sharing, server data storage, replication, and shared business storage. Its 2.5GbE interface provides higher network bandwidth than conventional Gigabit Ethernet while retaining compatibility with standard Ethernet infrastructure.
DC Supplies Product Note
The TS3430RN0804 is a fully populated four-bay configuration using four 2TB drives. Buffalo specifies RAID 6 as the factory configuration for the TS3430RN series, while RAID 0, 1, 5, 10, and JBOD are also supported for alternative storage arrangements.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS3430RN0804 |
| Product Type | Rackmount Network Attached Storage (NAS) |
| Series | TeraStation 3430RN / TeraStation 3030 |
| Form Factor | 1U Rackmount |
| Installed Capacity | 8TB |
| Drive Bays | 4 |
| Installed Drives | 4 x 2TB NAS-dedicated HDD |
| Drive Interface | SATA 6Gbps |
| Factory RAID | RAID 6 |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| Processor | Annapurna Labs Alpine AL-524 2.0GHz Quad-core |
| Memory | 2GB DDR4 |
| LAN Ports | 1 x 2.5GbE, 1 x 1GbE |
| Network Connector | RJ-45 |
| Network File Services | SMB/CIFS, AFP, FTP, FTPS, SFTP, NFS |
| iSCSI | Yes |
| USB Ports | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 2.0 |
| USB Transfer Rate | Up to 5Gbps |
| Hot Spares | Yes |
| Hot Swapping | Yes |
| Maximum Power Consumption | 85W |
| Data Transfer Power | 44W |
| Idle Power | 33W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 16.9 x 16.9 x 1.7 in (L x W x H) |
| Weight | 17.0 lb |
| Country of Origin | Japan |
| Warranty | 3 years |
FAQs
What is the storage capacity of the TS3430RN0804?
The TS3430RN0804 includes four 2TB NAS-dedicated hard drives for 8TB of installed raw storage capacity.
What RAID configuration is supplied?
Buffalo's TeraStation 3430RN documentation specifies RAID 6 as the factory configuration. The system also supports RAID 0, 1, 5, 10, and JBOD.
Does the TS3430RN0804 support 2.5GbE?
Yes. The NAS provides one 2.5GbE RJ-45 port along with one 1GbE RJ-45 port.
How much memory does the TS3430RN0804 have?
The TS3430RN0804 has 2GB of DDR4 memory and uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor.
Does the TS3430RN0804 support iSCSI?
Yes. The TS3430RN series supports iSCSI in addition to SMB/CIFS and other network file services.
Is the TS3430RN0804 suitable for rack deployment?
Yes. The system uses a 1U rackmount chassis measuring approximately 16.9 x 16.9 x 1.7 inches.
