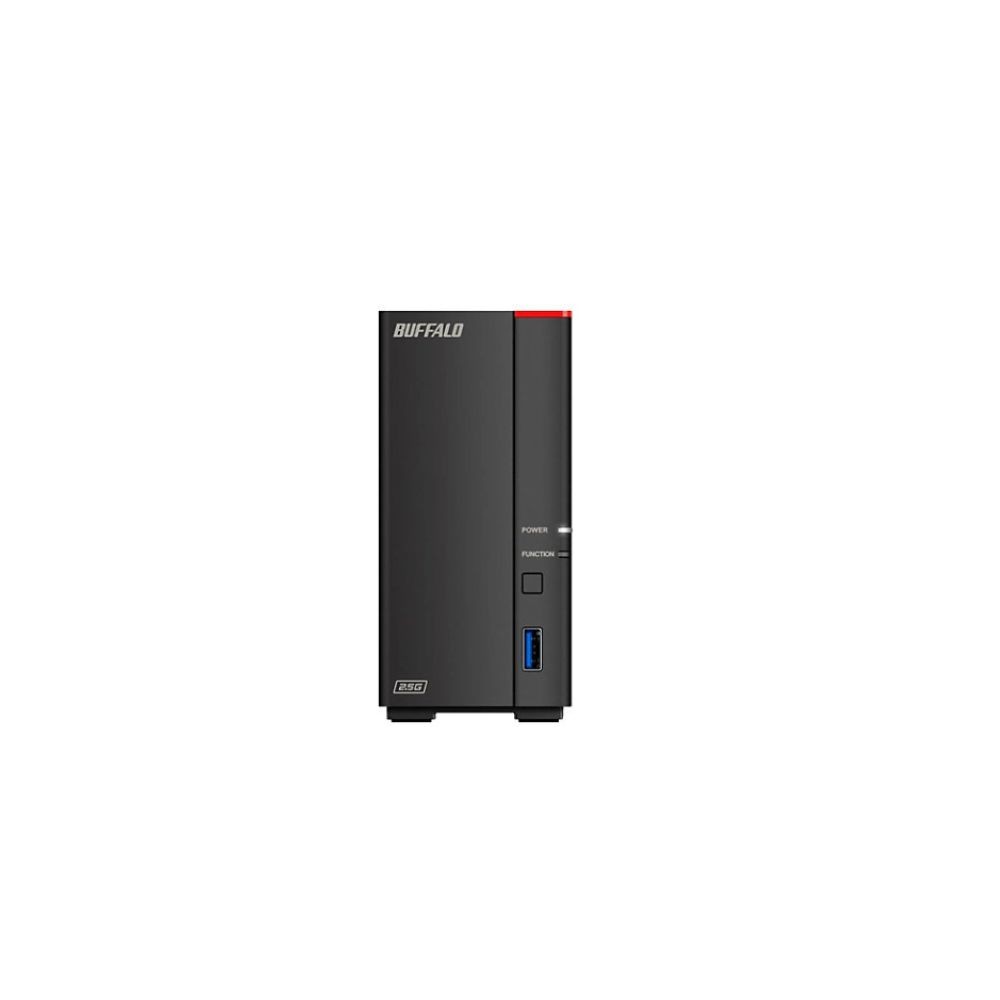

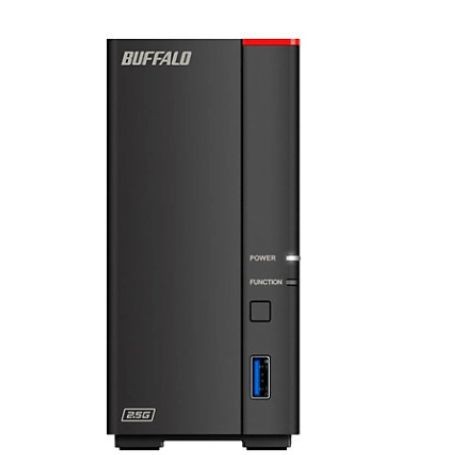

BUFFALO LS710D0401 – LinkStation 710 4TB 1-Bay 2.5GbE NAS
Overview
The BUFFALO LS710D0401 is a LinkStation 710 desktop network attached storage device with one factory-installed 4TB SATA hard drive. It provides centralized network storage and file sharing through a 2.5GbE RJ-45 interface for home, office, and high-speed local network environments.
Technical Information
The LS710D0401 uses a hexa-core 1.3GHz processor and 2GB of memory. Its single internal drive connects through a SATA 6Gbps interface. The network interface supports 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T, allowing the NAS to operate with both multi-gigabit and conventional Ethernet infrastructure.
Compatibility
The NAS supports TCP/IP networking and CIFS/SMB and FTP/SFTP file services. It provides two USB 3.2 Gen 1 Type-A ports and one USB 2.0 Type-A port for compatible peripherals and external storage. Buffalo lists compatibility with Windows 11, Windows 10, Windows 8.1, and Mac OS X 10.12 or later in its LinkStation 700 documentation.
Key Features
- 4TB factory-installed storage in a single drive bay
- 2.5GbE RJ-45 network connectivity with 10/100/1000/2500 Mbps support
- Hexa-core 1.3GHz processor with 2GB memory
- Two USB 3.2 Gen 1 ports and one USB 2.0 port
- WebAccess personal cloud and Time Machine backup support
Applications
The LS710D0401 is suited to centralized file storage, workstation backup, shared documents, multimedia storage, and personal cloud access. Its 2.5GbE interface is suitable for networks equipped with multi-gigabit switches or adapters while retaining compatibility with standard Gigabit Ethernet networks.
DC Supplies Product Note
The LS710D0401 has one internal drive bay and does not provide RAID redundancy. For deployments requiring drive-level redundancy, a multi-bay NAS with supported RAID levels should be selected instead.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | LS710D0401 |
| Product Type | Desktop Network Attached Storage (NAS) |
| Series | LinkStation 710 |
| Installed Capacity | 4TB |
| Drive Bays | 1 |
| Installed Drive | 1 x 4TB |
| Drive Interface | SATA 6Gbps |
| Processor | Hexa-core 1.3GHz CPU |
| Memory | 2GB |
| LAN Interface | 1 x 2.5GBASE-T RJ-45 |
| LAN Standards | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 |
| LAN Speeds | 2.5Gbps / 1000Mbps / 100Mbps / 10Mbps |
| Network Protocol | TCP/IP |
| File Services | CIFS/SMB, FTP/SFTP |
| USB Ports | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 2.0 Type-A |
| USB Transfer Rates | Up to 5Gbps USB 3.2; up to 480Mbps USB 2.0 |
| Supported RAID | N/A |
| Power Consumption | Maximum 46W |
| Power Supply | External AC 100–240V, 50/60Hz |
| Operating Temperature | 5–40°C |
| Operating Humidity | 20–80% non-condensing |
| Dimensions | 60 x 128 x 207mm (W x H x D) |
| Weight | Approximately 1.3kg |
| Country of Origin | Japan |
FAQs
What is the storage capacity of the LS710D0401?
The LS710D0401 is supplied with one factory-installed 4TB internal hard drive.
Does the LS710D0401 support 2.5GbE?
Yes. It has one RJ-45 2.5GBASE-T port supporting 2.5Gbps, 1000Mbps, 100Mbps, and 10Mbps Ethernet connections.
How many drive bays does the LS710D0401 have?
The LinkStation 710 has one internal drive bay. The LS710D0401 configuration includes one 4TB drive.
Does the LS710D0401 support RAID?
No. Buffalo specifies RAID as not applicable for the single-bay LinkStation 710.
How much memory does the LS710D0401 have?
The LS710D0401 has 2GB of memory and uses a hexa-core 1.3GHz processor.
What USB connectivity is provided?
The NAS provides two USB 3.2 Gen 1 Type-A ports and one USB 2.0 Type-A port for compatible peripherals and external storage.
