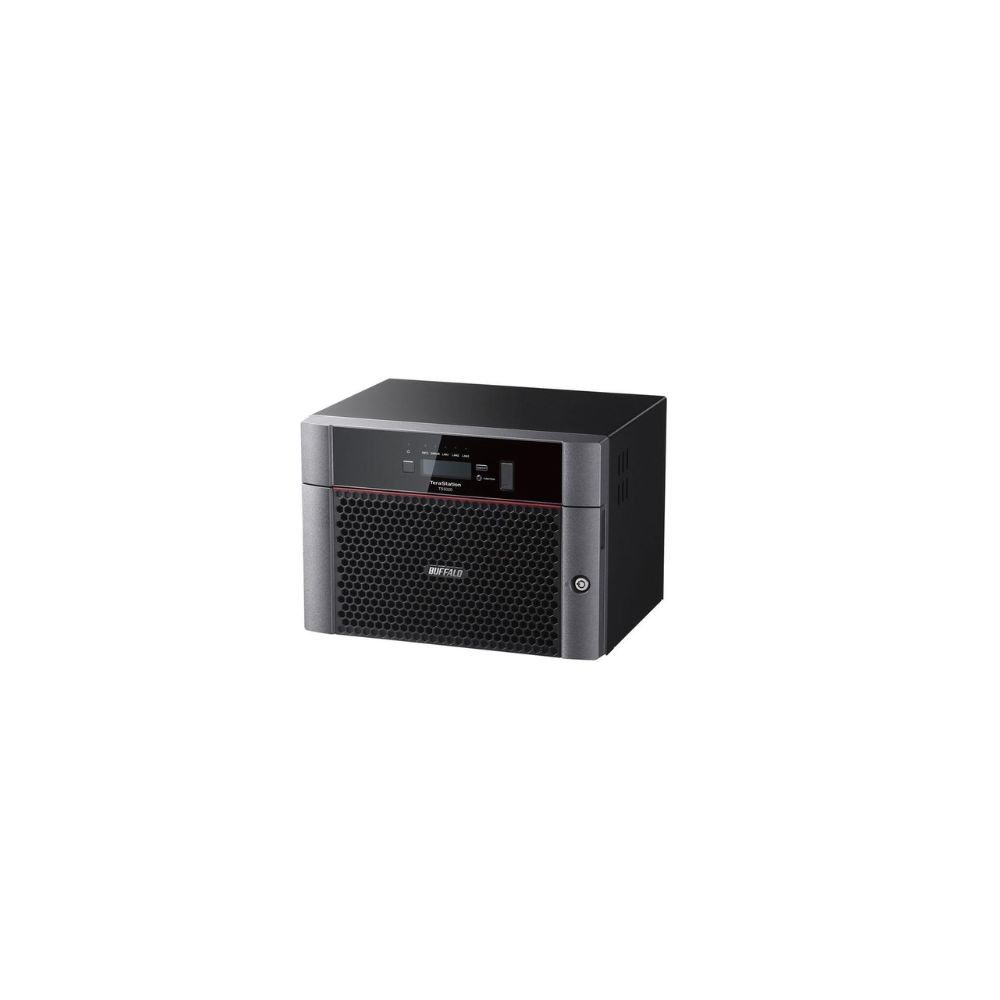

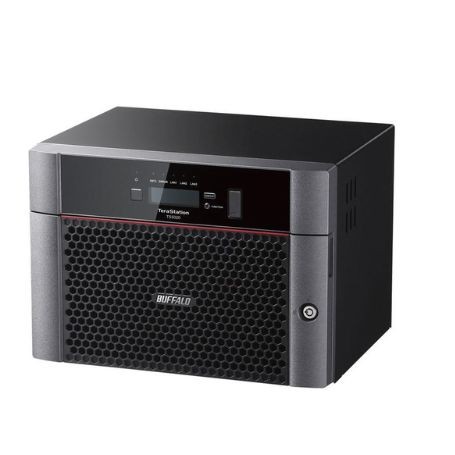

BUFFALO TS5820DN3204 – TeraStation 5020 32TB 8-Bay 10GbE Desktop NAS
Overview
The BUFFALO TS5820DN3204 is a TeraStation 5020 Series 8-bay desktop NAS configured with four 8TB NAS-grade CMR hard drives for 32TB of installed storage. Four additional drive bays remain available for future capacity expansion. The system combines 10GbE connectivity with two additional 1GbE ports and is designed for business file storage, backup, data protection, and shared network storage.
Technical Information
The TS5820DN3204 uses an Annapurna Labs Alpine AL524 2.04 GHz quad-core processor and 8GB of DDR4 memory. Its storage architecture supports RAID 0, 1, 5, 6, 10, and JBOD configurations, with hot-swappable drives and hot-spare support. Buffalo specifies snapshots, abnormal file activity detection, and remote configuration for the TeraStation 5020 platform. The installed configuration contains four 8TB NAS-grade CMR HDDs for 32TB of native capacity.
Network connectivity includes one 10GbE RJ-45 interface and two 1GbE RJ-45 interfaces. The 10GbE interface supports 10GbE, 5GbE, 2.5GbE, 1GbE, and 100MbE/10MbE Ethernet operation. Network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS, while iSCSI support is also documented by enterprise distribution sources for this exact MPN.
Compatibility
The TS5820DN3204 uses 3.5-inch SATA storage and is supplied with four 8TB NAS-grade HDDs. The chassis provides eight total drive bays, leaving four bays open for additional compatible drives. Buffalo identifies the platform as supporting RAID 0/1/5/6/10/JBOD and hot-swappable drive operation.
The network interfaces use RJ-45 connections, allowing the NAS to connect directly to 10GbE and Gigabit Ethernet infrastructure. Supported network services include SMB/CIFS, AFP, FTP, FTPS, SFTP, and NFS. The system operates from an internal 100–240V AC, 50/60Hz power supply.
Key Features
- 32TB installed capacity using four 8TB NAS-grade CMR HDDs.
- Eight total drive bays with four installed drives and four available bays.
- One 10GbE RJ-45 port plus two 1GbE RJ-45 ports.
- AL524 2.04GHz quad-core processor with 8GB DDR4 memory.
- RAID 0/1/5/6/10/JBOD support with hot swapping and hot-spare capability.
Applications
- Business file and document storage
- Departmental shared network storage
- Centralized backup and data protection
- Network file services for mixed client environments
- Capacity expansion using the four available drive bays
DC Supplies Product Note
The TS5820DN3204 is the 32TB partially populated configuration of the TeraStation 5820DN platform, using four 8TB drives in an eight-bay desktop chassis. The four open bays provide additional storage expansion without replacing the installed drives.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS5820DN3204 |
| Product Type | Desktop NAS |
| Series | TeraStation 5020 / TS5820DN |
| Form Factor | Desktop |
| Total Drive Bays | 8 |
| Installed Drives | 4 |
| Available Drive Bays | 4 |
| Installed Drive Capacity | 4 x 8TB |
| Native Storage Capacity | 32TB |
| Drive Type | NAS-grade HDD, CMR |
| Drive Interface | SATA 6Gb/s |
| Supported RAID | RAID 0/1/5/6/10/JBOD |
| Factory RAID Configuration | RAID 6 |
| Processor | Annapurna Labs Alpine AL524 |
| Processor Speed | 2.04GHz |
| CPU Cores | 4 |
| Memory | 8GB DDR4 |
| Network Interfaces | 1 x 10GbE + 2 x 1GbE RJ-45 |
| USB Ports | 2 x USB 3.2 + 2 x USB 2.0 |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Supported Protocol | TCP/IP |
| Snapshots | Yes |
| Abnormal File Activity Detection | Yes |
| Remote Configuration | Yes |
| Hot-Swap / Hot Spare | Yes |
| SSD Caching | No |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 150W |
| Data Transfer Power Consumption | 112W |
| Idle Power Consumption | 97W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions (L x W x H) | 9.06 x 11.81 x 8.46 in |
| Weight | 23.72–26.91 lb |
| Warranty | 3 years |
| Country of Origin | Japan |
| TAA Compliant | Yes |
FAQs
How much storage is included with the BUFFALO TS5820DN3204?
The TS5820DN3204 includes four 8TB NAS-grade HDDs for 32TB of installed native storage.
How many drive bays are available for expansion?
The system has eight total drive bays, with four drives installed and four bays available for additional compatible drives.
Which RAID levels are supported?
The TS5820DN3204 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network ports are provided?
The NAS provides one 10GbE RJ-45 port and two 1GbE RJ-45 ports for network connectivity.
Does the TS5820DN3204 support SSD caching?
No. Buffalo specifies that SSD caching is not supported on the TS5820DN 8-bay desktop platform.
What processor and memory does the NAS use?
The system uses an Annapurna Labs Alpine AL524 2.04GHz quad-core processor and 8GB of DDR4 memory.
