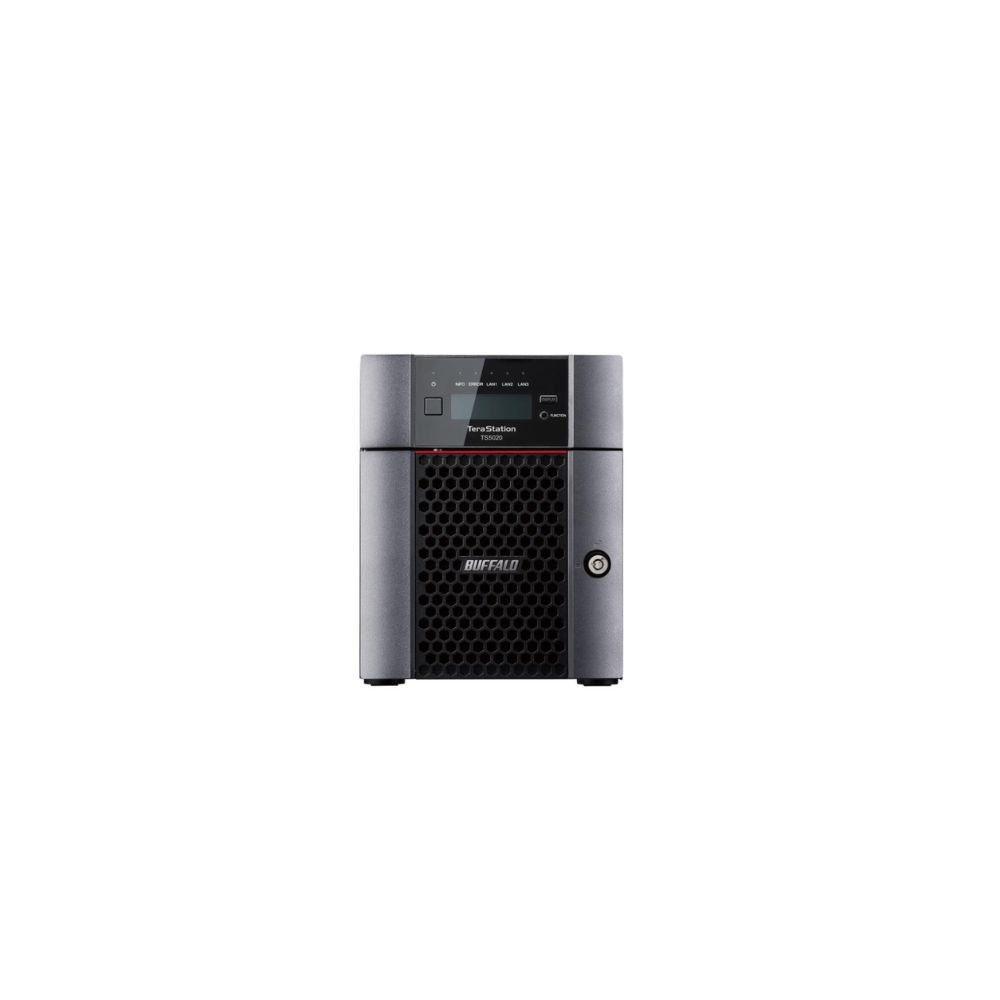

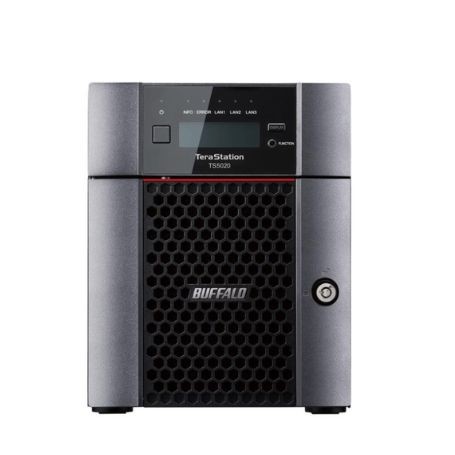

BUFFALO TS5420DN2402 – TeraStation 5020 24TB 4-Bay 10GbE Desktop NAS
Overview
The BUFFALO TS5420DN2402 is a TeraStation 5020 Series 4-bay desktop NAS configured with two 12TB NAS-grade CMR hard drives for 24TB of installed raw storage. Two drive bays remain available for future expansion. The system combines 10GbE networking, 8GB DDR4 memory, software RAID, snapshots, replication, and centralized file services for business and departmental storage environments.
Technical Information
The TS5420DN2402 uses an Annapurna Labs Alpine AL524 2.04GHz quad-core processor with 8GB DDR4 memory. The installed two-drive configuration ships in RAID 1, providing 12TB of effective storage. The platform supports RAID 0, 1, 5, 6, 10, and JBOD configurations.
The TeraStation 5020 platform supports snapshots, abnormal file activity detection, remote configuration, hot swapping, hot spares, replication, failover, cloud integration, Active Directory, and iSCSI. The TS5420DN platform does not support SSD caching.
Compatibility
The TS5420DN2402 uses 3.5-inch NAS-grade CMR HDDs with SATA III 6Gbps interfaces. Buffalo lists the OP-HDN and OP-HDHU2 series as compatible HDD families for the TS5420DN platform.
Network connectivity consists of one 10GBASE-T RJ-45 port and two 1000BASE-T RJ-45 ports. The 10GbE interface supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps operation. Supported network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS.
Key Features
- 24TB installed capacity using two 12TB NAS-grade CMR HDDs
- 4-bay desktop chassis with two available drive bays
- 1 x 10GBASE-T and 2 x 1000BASE-T RJ-45 network ports
- 8GB DDR4 memory with Annapurna Labs AL524 2.04GHz quad-core processor
- RAID 0/1/5/6/10/JBOD with RAID 1 used for the installed two-drive configuration
Applications
The TS5420DN2402 is suited to centralized business file storage, departmental shared storage, network backup, replication, and data protection. The two unpopulated drive bays also provide a path for additional storage capacity as requirements increase.
DC Supplies Product Note
The exact TS5420DN2402 configuration contains two 12TB NAS-grade CMR HDDs for 24TB of raw installed capacity. The unit ships with the two installed drives configured in RAID 1, resulting in 12TB of effective storage while leaving two drive bays available.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS5420DN2402 |
| Product Type | Business Desktop NAS |
| Series | TeraStation 5020 / TS5420DN |
| Form Factor | Desktop |
| Drive Bays | 4 |
| Populated Drive Bays | 2 |
| Available Drive Bays | 2 |
| Drive Size | 3.5-inch |
| Included Drives | 2 x 12TB |
| Total Installed Capacity | 24TB |
| Drive Type | NAS-grade HDD, CMR |
| Drive Interface | SATA III, 6Gbps |
| Factory RAID | RAID 1 |
| RAID 1 Effective Capacity | 12TB |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| CPU | Annapurna Labs Alpine AL524 |
| CPU Speed / Cores | 2.04GHz / Quad-Core |
| Memory | 8GB DDR4 |
| 10GbE Port | 1 x 10GBASE-T |
| 1GbE Ports | 2 x 1000BASE-T |
| Supported Ethernet Speeds | 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, 10Mbps |
| Network Connector | RJ-45 |
| USB Ports | 2 x USB 3.2, 2 x USB 2.0 |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Snapshots | Supported |
| Abnormal File Activity Detection | Supported |
| Remote Configuration | Supported |
| Hot Swap | Supported |
| Hot Spares | Supported |
| SSD Caching | Not supported |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 100W |
| Power Consumption, Data Transfer | 72W |
| Power Consumption, Idle | 56W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 230 x 170 x 215mm (L x W x H) |
| Dimensions, Imperial | 9.06 x 6.69 x 8.46 in |
| Weight | 12.41 lb |
| Warranty | 3 years |
FAQs
How much storage is included with the TS5420DN2402?
The TS5420DN2402 includes two 12TB NAS-grade CMR HDDs, providing 24TB of total installed raw capacity.
What RAID configuration does the TS5420DN2402 ship with?
The two installed 12TB drives ship configured in RAID 1, providing 12TB of effective storage.
How many additional drives can be installed?
The chassis has four drive bays. Two are populated by the included 12TB drives, leaving two bays available for expansion.
How many network ports does the TS5420DN2402 have?
The NAS provides one 10GBASE-T port and two 1000BASE-T ports, all using RJ-45 connectors.
Does the TS5420DN2402 support SSD caching?
No. Buffalo specifies SSD caching as unsupported for the TS5420DN platform.
What processor and memory are installed?
The system uses an Annapurna Labs Alpine AL524 2.04GHz quad-core processor with 8GB DDR4 memory.
